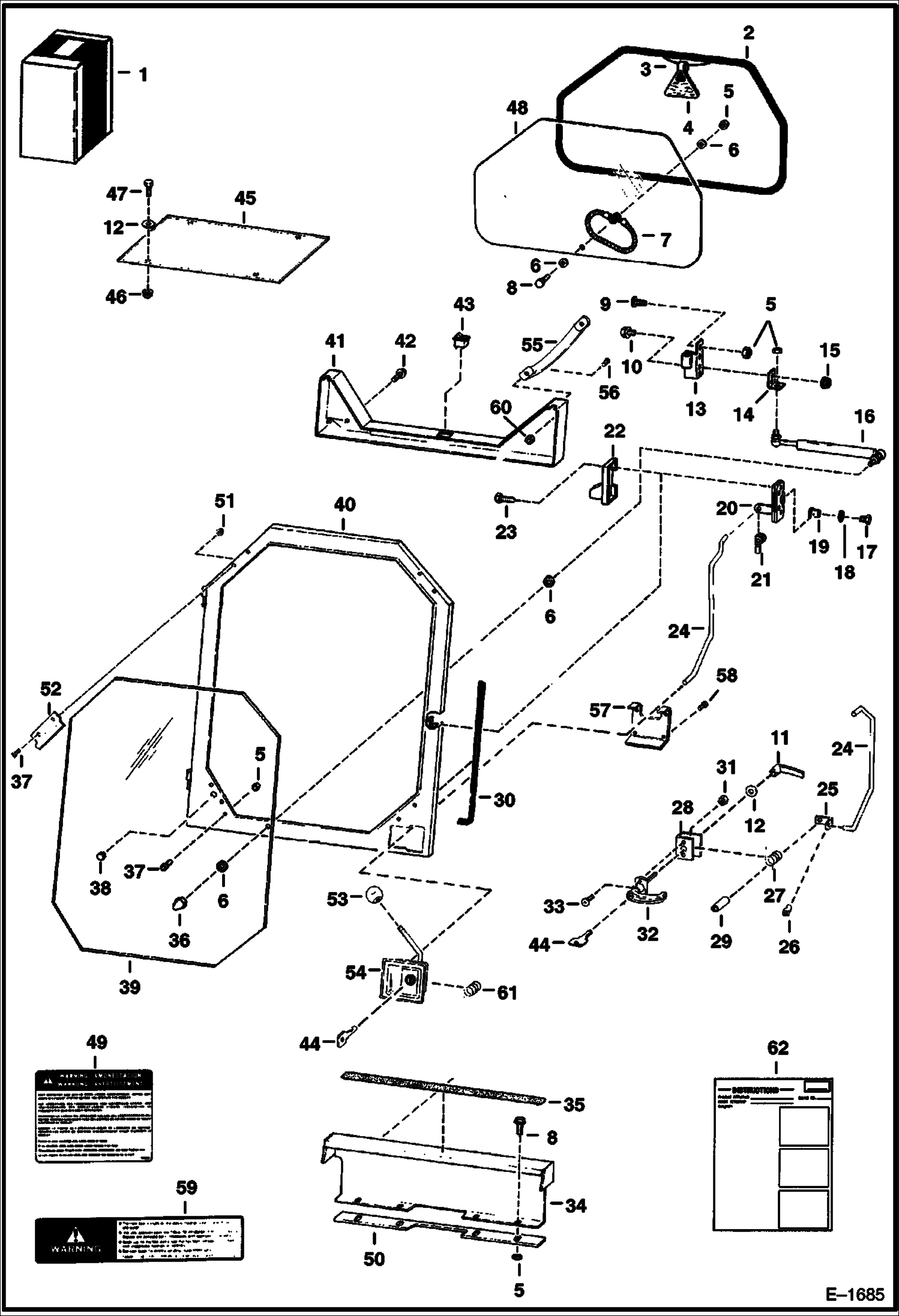

Запчасти Bobcat 800s CAB ENCLOSURE (Special Applications) ACCESSORIES & OPTIONS
№
Артикул
Название
Примечание
Количество
1
KIT SALES - Ref. 2-62
2
6658352
MOULDING 8.5' (259 cm) bulk - Sold Per Foot - Was 6554221 - A
3
CORD, BULK/FT 101'' (2565,4 mm long - bulk - Sold Per Foot - Also Order Ref.4 (6731478 exit tag) - Was 6554223 - A
4
6731478
EXIT TAG exit - Was 6559515 - A
5
83D5
NUT 5
7
6555331
WIRE ROPE
8
35C516
BOLT 10
9
10C512
BOLT Was 6553808 - A
11
6515600
HANDLE Use with old style latch
12
25E18
WASHER Use with old style latch
13
6571715
HINGE
14
6568055
BRACKET
15
83D4
NUT 10
16
6649244
BALL STUD For Gas Spring
16
6649245
RETAINER
17
17C714
BOLT
18
25E19
WASHER
19
6568047
NUT bushing
20
6660932
LATCH Was 6647789 - A
21
6519480
CLIP Was 6512274 - D
22
6568728
SHIELD
23
35C416
BOLT
24
6568727
ROD
24
6704425
ROD Was 6576470 - A
25
6568528
BRACKET
26
6519480
CLIP
27
6568725
SPRING
28
6568527
BRACKET
29
6568526
SPACER
30
6568704
MOULDING 12' (365,7 cm) bulk - Sold Per Foot
31
50D10
LOCKNUT
32
6568726
HANDLE
33
75G1016
BOLT
34
6568164
SHIELD
35
6564833
SAFETY TREAD
36
46D5
NUT
37
25G510
BOLT
38
6632454
PLUG
39
6569033
WINDOW .25'' poly carbonate
40
DOOR NLA - W/Ref. 39 - Order Ref. 1
40
6704434
DOOR Use with new style latch - Was 6576465 - A
41
6568724
SHIELD Use with old style latch
41
6704428
SHIELD Use with new style latch - Was 6576471 - A
42
84G3112
BOLT 5
43
6631009
SWITCH
44
6632560
KEY Use with old style latch
45
6705216
WINDOW top - Was 6564829 - A
46
83D6
NUT 5 Was 85D000006B - B
47
35C616
BOLT 5 Was 17C000616B - B
48
6564830
WINDOW rear
49
6563410
DECAL
50
6569352
SPACER
51
57D5
NUT
52
6576238
CLIP window
53
6647635
KNOB
54
6641274
LATCH new style
55
6631935
HANDLE
56
7G416
BOLT Was 7G000412B - B
57
6704426
RETAINER Was 6578398 - A
58
45G1008
BOLT
59
6531482
DECAL warning
60
7160765
NUT Was 6660988 - A
61
6662834
SPRING
62
6570279
INSTRUCTIONS
Выбрано товаров: 67
