Запчасти Bobcat 800s CAB DOOR ACCESSORIES & OPTIONS

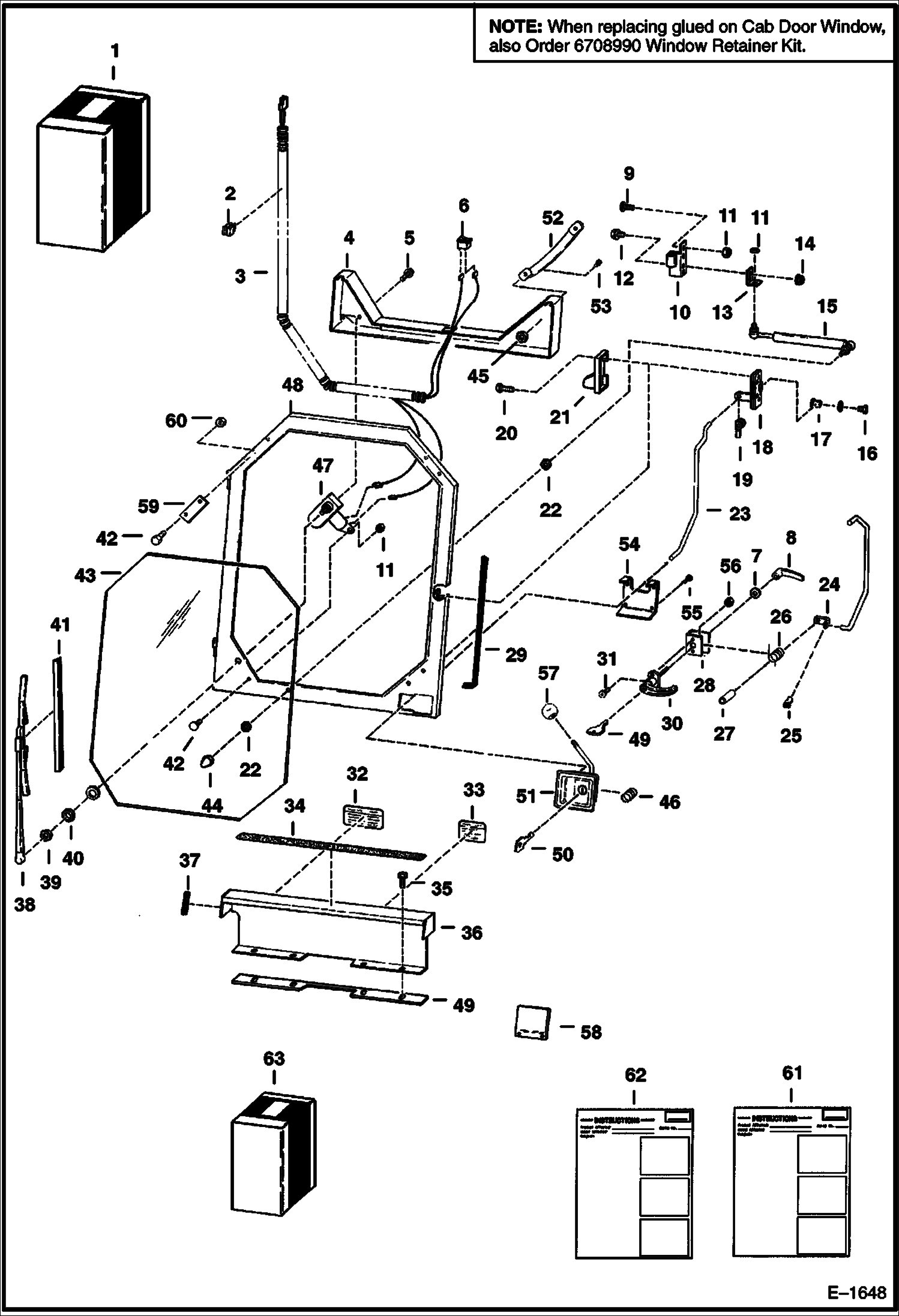

Схема запчастей Bobcat 800s - CAB DOOR ACCESSORIES & OPTIONS

Артикул

Название

Примечание

Количество

1

6571845

KIT

2

30H37

CLAMP

3

6568739

HARNESS

4

6568724

SHIELD Use with old style latch

4

6704428

SHIELD Use with new style latch - Was 6576471 - A

5

84G3112

BOLT 5

6

6631009

SWITCH

7

25E18

WASHER Use with old style latch

8

6515600

HANDLE Use with old style latch

9

10C512

BOLT Was 6553808 - A

10

6568051

HINGE For 1/4'' (6,35 mm) - Hinge Pin

10

6571715

HINGE For 3/8'' (9,52 mm) - Hinge Pin

11

83D5

NUT 5

12

35C412

BOLT

13

6568055

BRACKET

14

83D4

NUT 10

15

6630797

GAS SPRING

15

6632221

STUD ball

15

2756257

CLIP spring

16

17C712

BOLT

17

6568047

NUT bushing

18

6660932

LATCH old style - Was 6647789 - A

19

6519480

CLIP Was 6512274 - D

20

35C416

BOLT

21

6568728

SHIELD

22

25E16

WSHR

23

6568727

ROD Use with old style latch

23

6704425

ROD Use with new style latch - Was 6576470 - A

24

6568528

BRACKET Use with old style latch

25

6519480

CLIP Use with old style latch

26

6568725

SPRING Use with old style latch

27

6568526

SPACER Use with old style latch

28

6568527

BRACKET Use with old style latch

29

6568704

MOULDING bulk - Sold Per Foot

30

6568726

HANDLE W/Keys - Use with old style latch

31

75G1016

BOLT Use with old style latch

32

6579510

DECAL Was 6575854 - A

33

6563410

DECAL

34

6564833

SAFETY TREAD

35

35C520

BOLT

36

6568164

SHIELD

37

6555351

SEAL bulk - sold per foot

38

6631008

ARM

39

NUT NSS

40

SEAL NSS

41

6630943

BLADE wiper

42

25G510

BOLT

43

6568705

WINDOW .25'' plastic-Also Order Ref. 63 6708990 Window Retainer Kit

44

46D5

NUT

45

7160765

NUT Was 6660988 - A

46

6662834

SPRING

47

6620642

MOTOR W/Ref. 39 & 40

47

GEAR NLA - Was 6631927 - A

47

961528

PK PARTS

47

6631928

SHAFT

48

DOOR NLA - 1/4'' (6,35 mm) hinge pin - W/Ref. 29 & 43 - Order Ref. 1 - Was 6568764 - A

48

DOOR NLA - 3/8'' (9,52 mm) hinge pins - W/Ref. 29 & 43 - Order 6704431, 6576470, 6576471 & Ref. 45, 46 & 53-55 - Was 6571755 - A

48

6704430

DOOR For use with new style latch - Was 6704430 - D

49

6569352

SPACER

50

6632560

KEY

51

6641274

LATCH new style - W/Ref. 50 & 57

52

6631935

HANDLE Use with new style latch

53

7G416

BOLT Use with new style latch - Was 7G000412B - B

54

6704426

RETAINER Use with new style latch - Was 6578398 - A

55

45G1008

BOLT Use with new style latch

56

50D10

LOCKNUT Use with old style latch

57

6647635

KNOB Use with new style latch

58

6568620

COVER

59

6708850

RETAINER Was 6576238 - B,D

60

61D5

NUT Was 57D000005B - B,D

61

6570264

INSTRUCTIONS Use with new style latch

62

6724279

INSTRUCTIONS

63

6708990

KIT window retainer - Ref. 42, 59, 60 & 62

Выбрано товаров: 73
