Запчасти Bobcat 800s STARTER (Delco 1109539) ELECTRICAL SYSTEM

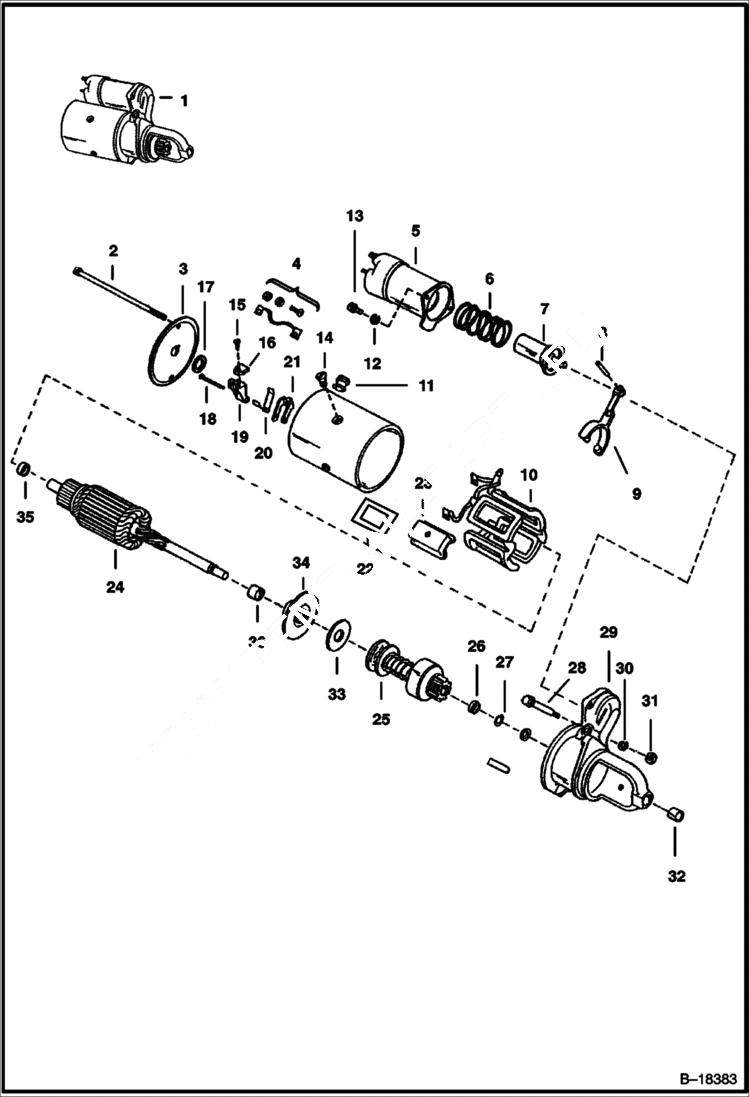

Схема запчастей Bobcat 800s - STARTER (Delco 1109539) ELECTRICAL SYSTEM

Артикул

Название

Примечание

Количество

1

STARTER NLA - Order (1) 6630181, (1) 4DM00005B, (1) 4DM00010B & (1) 6567050

2

BOLT NLA - thru - Was 895675B - A

3

6511625

FRAME

4

6511627

HOLDER brush support

5

6598234

SOLENOID 31 mm diameter opening

6

888968

SPRING

7

PLUNGER NLA - Was 887782B - A

8

PIN NLA - Was 999472B - A

9

896126

LEVER

10

6511628

FIELD COIL field - 4 Coils

11

GROMMET NSS

12

WASHER NSS

13

SCREW NSS

14

SCREW NSS

15

85G1008

SCREW

16

BRUSHES NLA - Was 945239B - A

17

WASHER NSS

18

PIN NSS

19

HOLDER NLA - brush - Was 891252B - A

20

SPRING NLA - brush - Was 992568B - A

21

880603

HOLDER brush - Was 6511626 - A

22

INSULATOR NSS

23

POLE SHOE NSS

24

6511629

ARMATURE

25

6512872

DRIVE

26

STOP NLA - Was 878608B - A

27

942142

SNAP RING

28

884576

BOLT.

29

HOUSING NLA - drive - W/Ref. 32 - Order Complete starter - Was 6598741 - A

30

WASHER NSS

31

NUT NSS

32

860669

BUSHING

33

GASKET NLA - Was 991731B - A

34

874935

BUSHING

35

PLATE NLA - Was 891602B - A

36

6598742

BUSHING

Выбрано товаров: 36
