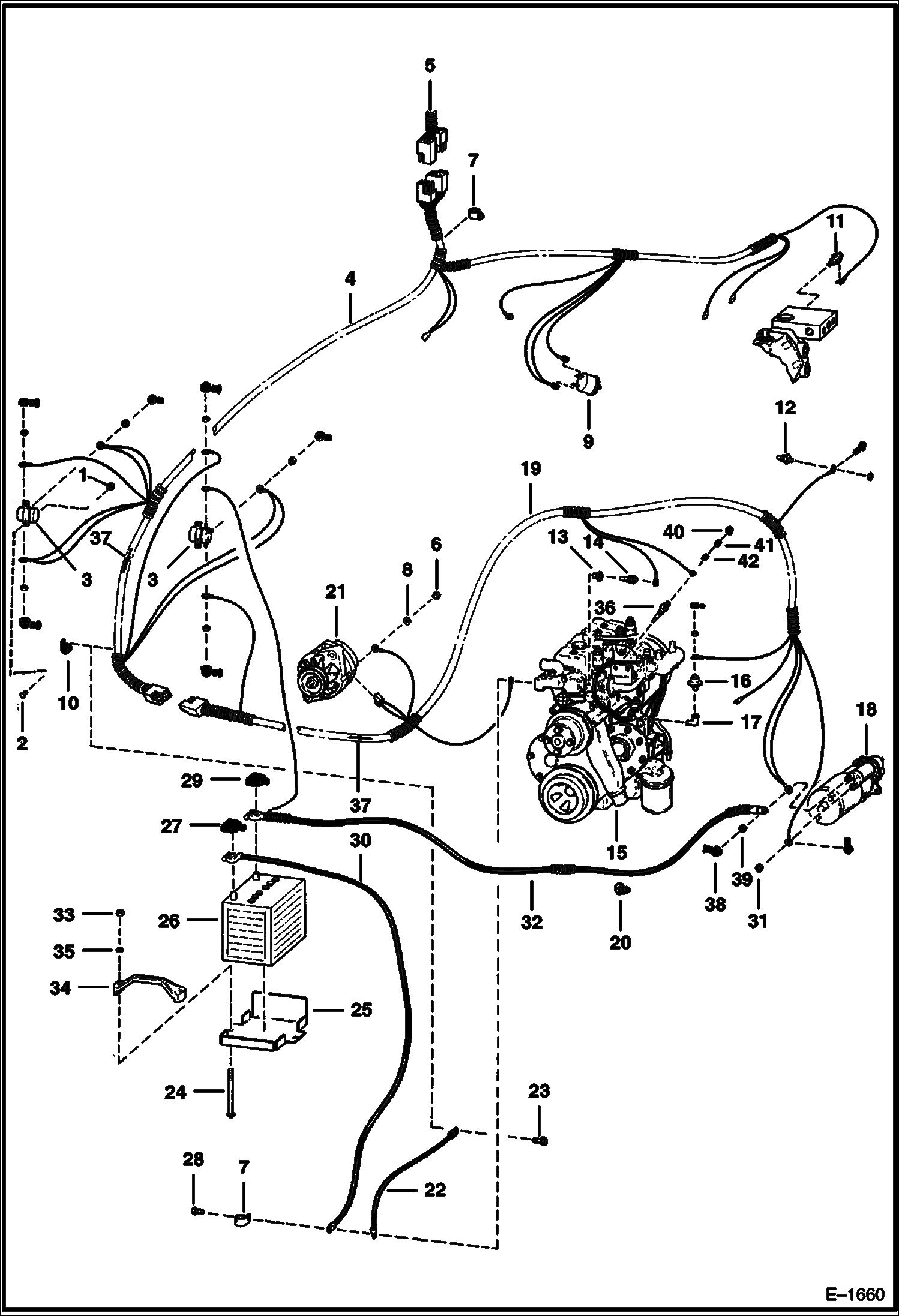

Запчасти Bobcat 800s ENGINE ELECTRICAL (S/N 20377 & Above) ELECTRICAL SYSTEM

1

61D4

NUT 5

2

17C408

BOLT carriage

3

6659319

SOLENOID Was 6632186 - A

4

6567432

HARNESS chassis

5

HARNESS See Illustration CAB ELECTRICAL SYSTEM/ B18382 CAB

6

1DM6

NUT Was 4DM6 - A

7

30H46

CLIP

8

6E4

WASHER 10

9

6671062

SWITCH hydro. pressure - Was 6664577 - A

10

30H55

CLIP

11

6632633

SWITCH hyd temp - Was 6564560 - A

12

SWITCH See Illustration HYDROSTATIC OIL FILTER/ C2818 FILTER

13

6564767

ADAPTER

14

SENDER See BTI259 NLA - eng. temp. - Was 6599492 - A

14

6658818

SENDER See BTI259 eng temp - threaded connector

15

6564576

ENGINE See Illustration ENGINE/ E1686

16

6631010

SWITCH, PRESS OIL ENG pressure - Engine Oil

17

1309105

ELBOW

18

STARTER See Illustration STARTER/ B18383 See Illustration STARTER/ D2119 See Illustration STARTER/ B18270

19

6567087

HARNESS engine

19

HARNESS NLA - For Bobcat Alt - Was 6569871 - A

20

30H45

CLIP

21

ALTERNATOR See Illustration ALTERNATOR/ B18268 See Illustration ALTERNATOR/ C3312 See Illustration ALTERNATOR/ D1760 See Illustration ALTERNATOR/ B18268A

22

6563025

CABLE

23

84G3712

BOLT 5

24

6569623

BOLT hex

24

6571757

BOLT carriage

25

6561733

MOUNT battery

26

BATTERY NLA - 625 Amp. - Order 6665032 - Was 6568707 - A

26

6665032

BATTERY, DRY 700 AMP 700 Amp. - Was 6631611 - A

27

6599652

BOOT

28

18C616

BOLT 5

29

2356058

BOOT

30

6564716

CABLE negative - W/Ref. 27

31

4DM5

NUT

32

CABLE NLA - positive - W/Ref. 29 - Was 6568717 - A

33

59D5

NUT 5

34

6569203

CLAMP battery

35

25E15

WASHER

36

6599285

GLOW PLUG

37

3675725

DIODE

38

6560172

COVER

39

4DM10

NUT

40

6660927

NUT

41

WASHER NLA - Was 6660928 - A

42

WASHER NLA - Was 6660929 - A
