Запчасти Bobcat 800s CAB ELECTRICAL SYSTEM (S/N 20001 & Above) ELECTRICAL SYSTEM

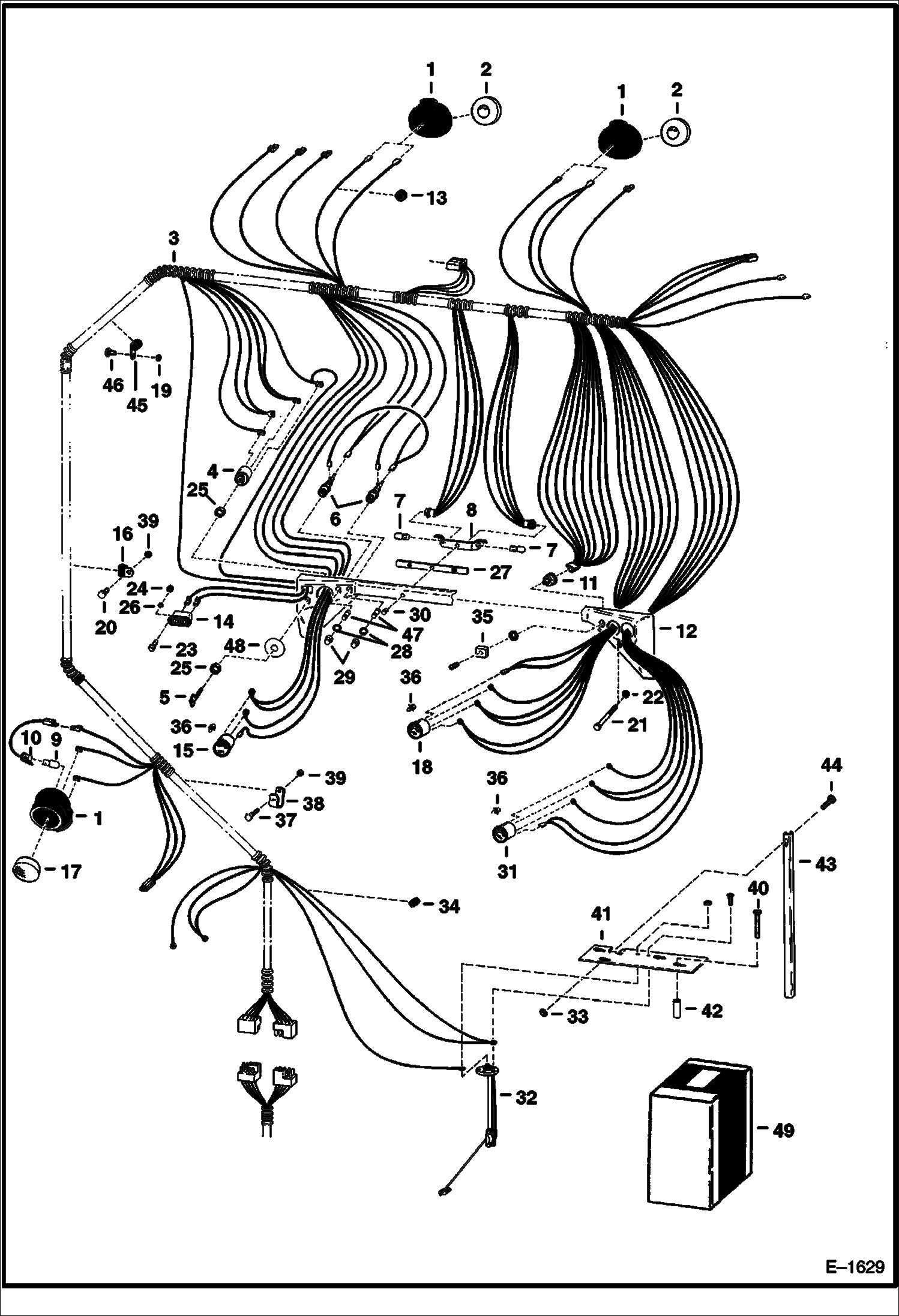

Схема запчастей Bobcat 800s - CAB ELECTRICAL SYSTEM (S/N 20001 & Above) ELECTRICAL SYSTEM

Артикул

Название

Примечание

Количество

1

6558142

HOUSING

2

6557486

LAMP

3

6567802

HARNESS

4

SWITCH See BTI289 NLA - W/Ref. 5 & 25 - Order 49 - Was 6519592 - A

4

6665606

SWITCH

5

6512809

KEY for 6519592

5

KEY NLA - for 6665606 switch - includes two keys W/ring - Order 6693241 - Was 6709527 - A

5

6693241

KEY 10 ignition - single key W/O ring

6

6513469

HOLDER fuse

6

1319451

FUSE 5

7

6513468

BULB

8

6558242

BRACKET

9

898731

1156 BULB

10

6564907

SOCKET ASSY

11

6512808

SWITCH

12

6568211

PANEL

13

6557493

GROMMET

14

6664886

HOURMETER Was 6631657 - A

15

VOLTMETER NLA - W/clamp - Order 6669664 voltmeter & 6679027 clamp - Was 6658819 - A

15

6669664

VOLTMETER W/O clamp

16

30H45

CLIP Was 30H000041B - B

17

6563740

LAMP

18

FUEL GUAGE NLA - W/clamp - Order 6669665 gauge & 6679027 clamp - Was 6658820 - A

18

6669665

FUEL GUAGE W/O clamp

19

83D4

NUT 10

20

10C512

BOLT Was 6553808 - A

21

17C572

BOLT

22

83D5

NUT 5

23

85G608

SCREW

24

12D6

NUT 10

25

6598721

NUT Use W/NLA 6519592 switch

25

6674202

NUT Use W/ 6665606 switch

26

12E6

WASHER

27

6560699

LENS Was 6564785 - A

28

6514643

GASKET

29

6514642

CAP

30

6514742

RIVET

31

6631649

GAUGE See BTI259 engine temp.

31

GAUGE See BTI259 NLA - eng temp - W/clamp - Order 6669663 gauge & 6679027 clamp - Was 6658817 - A

31

6669663

GAUGE See BTI259 eng temp - W/O clamp

32

SENDER See Illustration FUEL SYSTEM/ D1596 FUEL

33

12D10

NUT

34

6632215

GROMMET

35

6599781

KNOB light switch

36

6599696

SOCKET & BULB W/bulb assy.

36

895771

#161 BULB

37

17C512

BOLT 5

38

31H38

CLAMP

39

85D5

NUT 5

40

89G544

SCREW

41

6567896

SHIELD

42

6567898

SPACER

43

6567897

HOUSING

44

85G1008

SCREW

45

30H55

CLIP Was 30H000054B - B

46

25G412

CAPSCRW10

47

1319451

FUSE 5

48

6703705

PLATE for 6519592 - Was 6563431 - A

48

6709028

PLATE for 6665606

49

6724282

SWITCH KIT Ref. 4, 5 & 48

Выбрано товаров: 60
