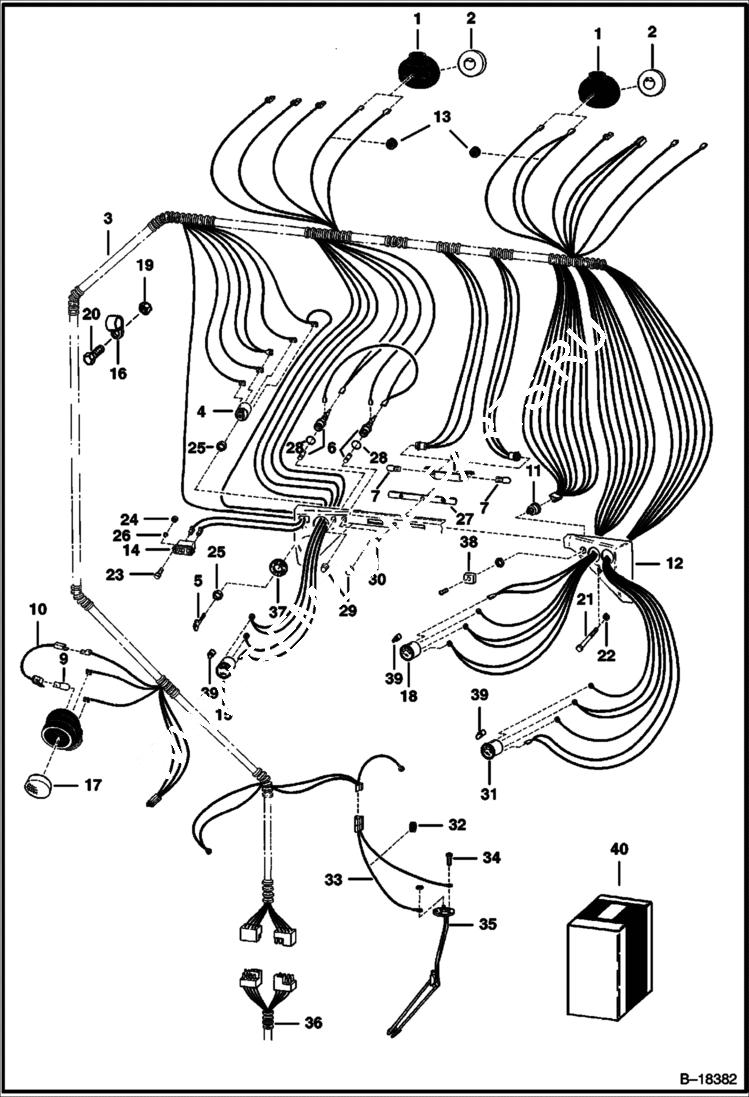

Запчасти Bobcat 800s CAB ELECTRICAL SYSTEM (S/N 19999 & Below) ELECTRICAL SYSTEM

1

6558142

HOUSING

2

6557486

LAMP

3

6564837

HARNESS cab

4

SWITCH See BTI289 NLA - ignition - Order Ref. 40 - Was 6519592 - A

4

6665606

SWITCH

5

6512809

KEY for 6519592

5

KEY NLA - for 6665606 switch - Order 6693241 - Was 6709527 - A

5

6693241

KEY 10 ignition - single key W/O ring

6

6513469

HOLDER fuse

6

1319451

FUSE 5

7

6513468

BULB

8

6558242

BRACKET

9

898731

1156 BULB

10

6564907

SOCKET ASSY

11

6512808

SWITCH

12

6564787

PANEL

13

6557493

GROMMET

14

6664886

HOURMETER Was 6631657 - A

15

VOLTMETER NLA - W/clamp - Order 6669664 voltmeter & 6679027 clamp - Was 6658819 - A

15

6669664

VOLTMETER W/O clamp

16

30H41

CLIP

17

6563740

LAMP

18

FUEL GUAGE NLA - W/clamp - Order 6669665 gauge & 6679027 clamp - Was 6658820 - A

18

6669665

FUEL GUAGE W/O clamp

19

61D5

NUT

20

10C512

BOLT Was 6553808 - A

21

17C572

BOLT

22

83D5

NUT 5

23

85G608

SCREW

24

12D6

NUT 10

25

6598721

NUT Use W/NLA 6519592 switch

25

6674202

NUT Use W/ 6665606 switch

26

12E6

WASHER

27

6560699

LENS Was 6564785 - A

28

6514643

GASKET

29

6514642

CAP

30

6514742

RIVET

31

6631649

GAUGE See BTI259 engine temp.

31

GAUGE See BTI259 NLA - eng temp - W/clamp - Order 6669663 gauge & 6679027 clamp - Was 6658817 - A

31

6669663

GAUGE See BTI259 eng temp - W/O clamp

32

742876

GROMMET

33

6560117

WIRE

34

85G1008

SCREW

35

6562552

SENDER fuel

36

HARNESS See Illustration ENGINE ELECTRICAL/ E1423 ENG.

37

6703705

PLATE for 6519592 - Was 6563431 - A

37

6709028

PLATE for 6665606

38

6599781

KNOB light switch

39

6599696

SOCKET & BULB W/bulb assy.

39

895771

#161 BULB

40

6724282

SWITCH KIT Ref. 4, 5 & 37
