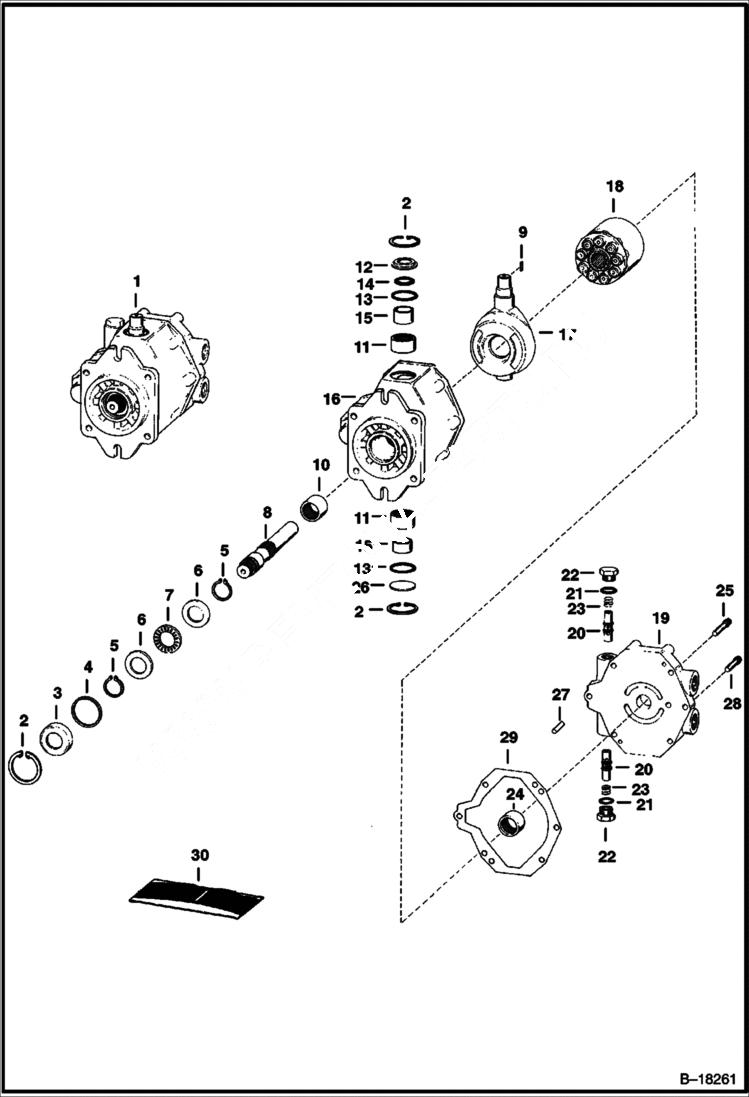

Запчасти Bobcat 800s HYDROSTATIC PUMP (Front) HYDROSTATIC SYSTEM

1

6513977

PUMP front - New - 5/8 (15,8 mm) -9 tooth - For 78552 RAC

1

PUMP NLA - 5/8 (15,8 mm) - 9 tooth - For 78552 RAC - Was 6599513REM - A

1

6631910

PUMP, HYD FRONT front - New - 3/4 (19,05 mm) - 11 tooth - For 78552 RAF

1

PUMP NLA - 3/4 - 11 tooth - For 78552 RAF - Was 6632261REM - A

2

952149

SNAP RING retaining

3

6513981

SPACER

4

6513982

WASHER

5

658128

RING, SNAP retaining

6

6513983

RACE thrust

7

6513984

BEARING thrust

8

6513985

SHAFT 5/8 (15,8 mm) - 9 Tooth - For 78552 RAC

8

6631912

SHAFT 3/4 (15,8 mm) -11 Tooth - For 78552 RAF

9

6513986

KEY

10

BEARING NLA - Was 6514008 - A

11

6513987

PLATE

12

6513988

RETAINER seal

13

58K225

O RING 10

14

6514011

SEAL

15

6513990

RACE

16

6513991

HOUSING W/Ref. 10

17

6513993

YOKE

18

6513994

GROUP, ROTATING

19

6513995

COVER W/Ref. 24

20

6513978

RELIEF VALVE relief

21

58K118

O RING 10

22

6513998

PLUG

23

6514010

SPRING

24

6514009

BEARING

25

93G736

SCREW

26

6513996

COVER

27

886203

PIN ROLL

28

93G728

BOLT

29

6631911

GASKET

30

6513979

SEAL KIT Complete pump front & rear sections

30

6630388

SEAL KIT Complete pump front & rear sections
