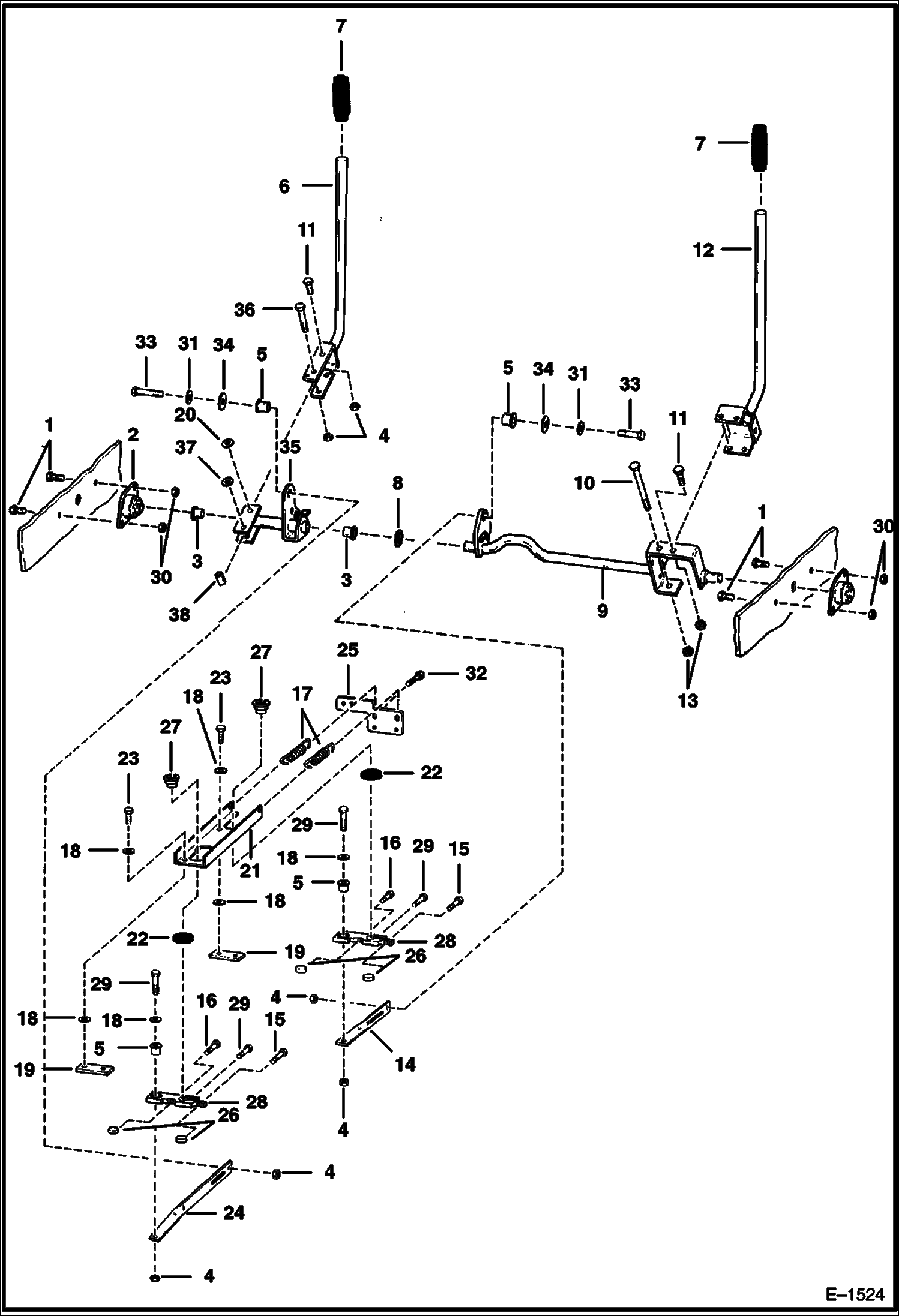

Запчасти Bobcat 800s HAND CONTROLS (S/N 15001 thru 16191) HYDROSTATIC SYSTEM

1

35C612

BOLT

2

6558736

FLANGE

3

6512027

BUSHING

4

85D6

NUT, 5

5

6665701

BUSHING, PRESS FIT Was 6630081 - A

6

6564663

LEVER

7

6513963

GRIP

8

25E29

WSHR

9

6564727

SHAFT

10

6553081

BOLT

11

17C620

BOLT

12

6558615

HANDLE

13

61D6

NUT 5

14

6565602

LINKAGE

15

17C614

BOLT

16

17C624

BOLT 5

17

6564939

SPRING

18

6557831

WASHER

19

6562281

BAR

20

25E17

WASHER 5

21

6562168

BRACKET

22

6558436

GUIDE

23

8C616

SCREW

24

6565601

LINKAGE

25

6565632

PLATE

26

6562062

CAM lever

27

6567973

HUB

28

6565751

LEVER, PINTLE pintle

29

17C628

BOLT

30

83D6

NUT 5

31

6563914

WASHER

32

17C712

BOLT

33

17C626

BOLT

34

6563965

WASHER

35

6564726

LEVER

36

17C648

BOLT 5

37

6564648

WASHER

38

6564667

BUSHING
