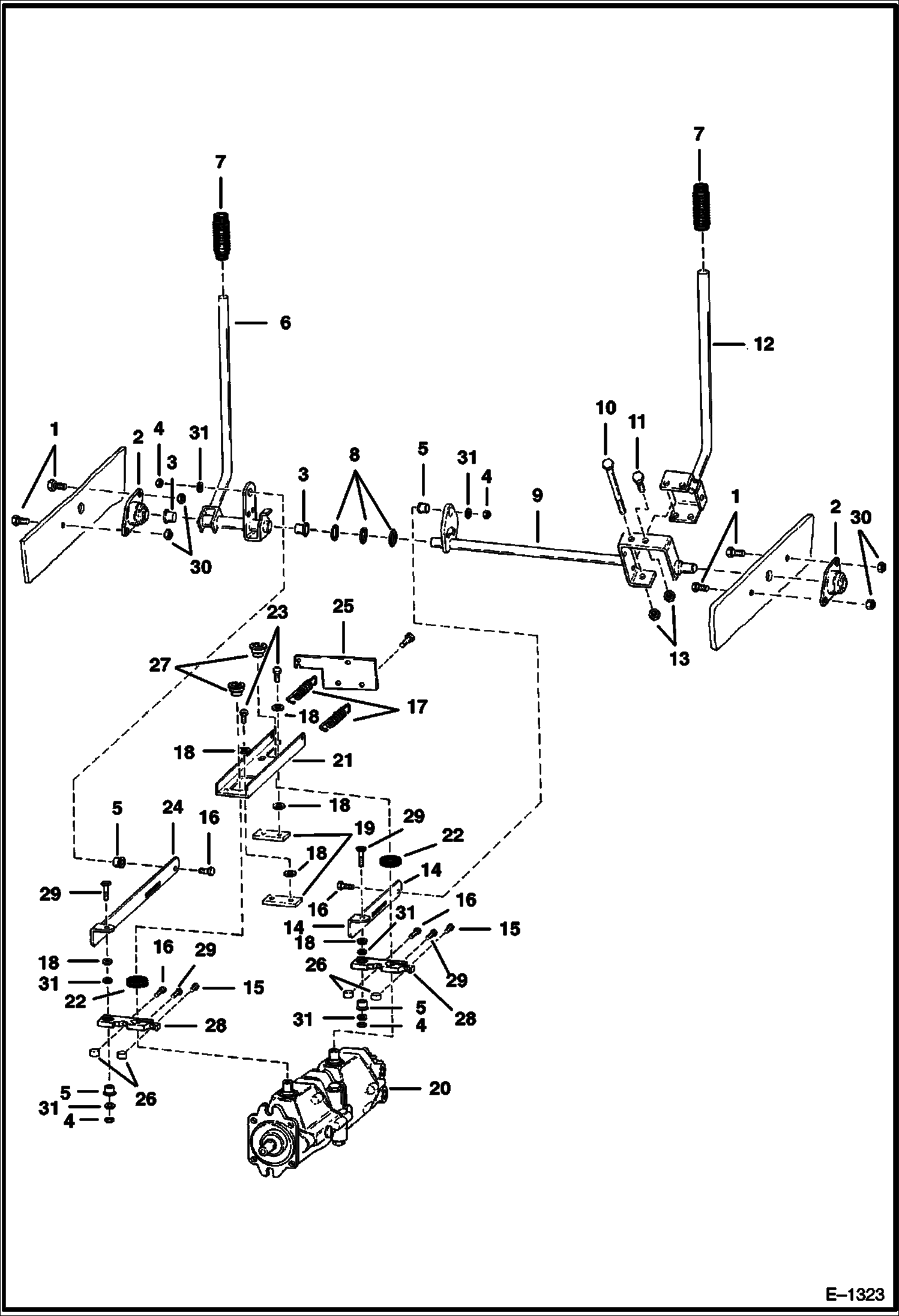

Запчасти Bobcat 800s HAND CONTROLS (S/N 14999 & Below) HYDROSTATIC SYSTEM

1

35C612

BOLT Was 31C000612B - A

2

6558736

FLANGE

3

6512027

BUSHING

4

85D6

NUT, 5

5

6665701

BUSHING, PRESS FIT Was 6630081 - A

6

6558845

LEVER

7

6513963

GRIP

8

25E29

WSHR

9

6558844

SHAFT

10

6553081

BOLT

11

17C620

BOLT

12

6558615

HANDLE

13

61D6

NUT 5

14

6565804

LINKAGE

15

17C614

BOLT

16

17C624

BOLT 5

17

6564939

SPRING

18

6557831

WASHER

19

6562281

BAR

20

PUMP See Illustration HYDROSTATIC PUMPS/ D1518

21

6562168

BRACKET

22

6558436

GUIDE

23

8C616

SCREW

24

6565803

LINKAGE

25

6562290

PLATE

26

6562062

CAM lever

27

6567973

HUB

28

6565751

LEVER, PINTLE pintle

29

17C628

BOLT

30

83D6

NUT 5

31

6563914

WASHER
