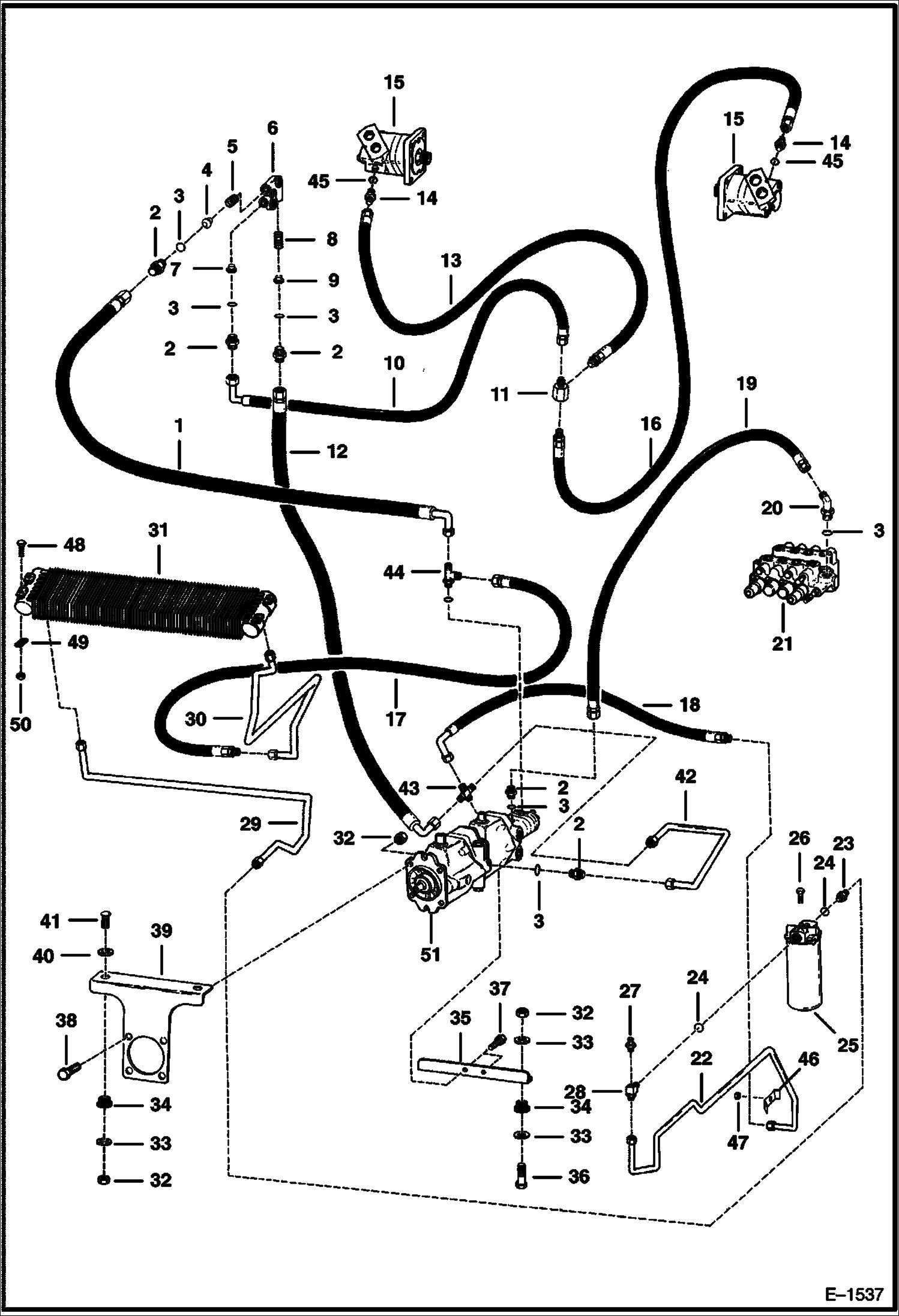

Запчасти Bobcat 800s HYDROSTATIC CIRCUITRY (S/N 15001 thru 15622) HYDROSTATIC SYSTEM

1

6567026

HOSE

2

15K7

FITTING W/Ref. 3 - See Ref. 19

3

79K10

O RING 10

4

6515078

POPPET

5

6565425

SPRING

6

6565619

BLOCK port

7

6599654

ORIFICE

8

6567020

SPRING

9

6565620

POPPET

10

2524512

HOSE

11

ADAPTER NLA - Was 6559340 - A

12

6563982

HOSE

13

6560784

HOSE

14

15K5

FITTING W/O Ref. 45

15

MOTOR See Illustration HYDROSTATIC MOTOR/ D1526

16

6560785

HOSE

17

6565991

HOSE

18

6565625

HOSE

19

HOSE NLA - Order 6575845 Hose & 17K000007B Elbow - Was 6567347 - A

20

18K7

FITTING W/Ref. 3

21

VALVE See Illustration CONTROL VALVE/ E1509

22

6565592

TUBE

23

15KB1012

FITTING, HYD CONNECTOR W/Ref. 24 - Was 755055B - A

24

79K12

O RING 10

25

FILTER See Illustration HYDROSTATIC OIL FILTER/ C2818

26

17C610

BOLT

27

6630168

COUPLER diagnostic

28

6565999

ELBOW

29

6565595

TUBE

30

6565594

TUBE

31

6598438

OIL COOLER

32

85D8

NUT, 5

33

6564692

WASHER

34

6560633

DAMPENER rubber

35

6559453

MOUNT

36

17C836

BOLT

37

17C712

BOLT

38

17C824

BOLT 5

39

6562301

MOUNT

40

6560899

WASHER

41

17C840

BOLT

42

6565593

TUBE

43

6567025

FITTING

44

21K7

TEE

45

79K6

O RING 10

46

6502203

CLAMP

47

85D6

NUT, 5

48

10C512

BOLT Was 6553808 - A

49

774220

NUT

50

85D5

NUT 5

51

PUMP See Illustration HYDROSTATIC PUMPS/ D1518
