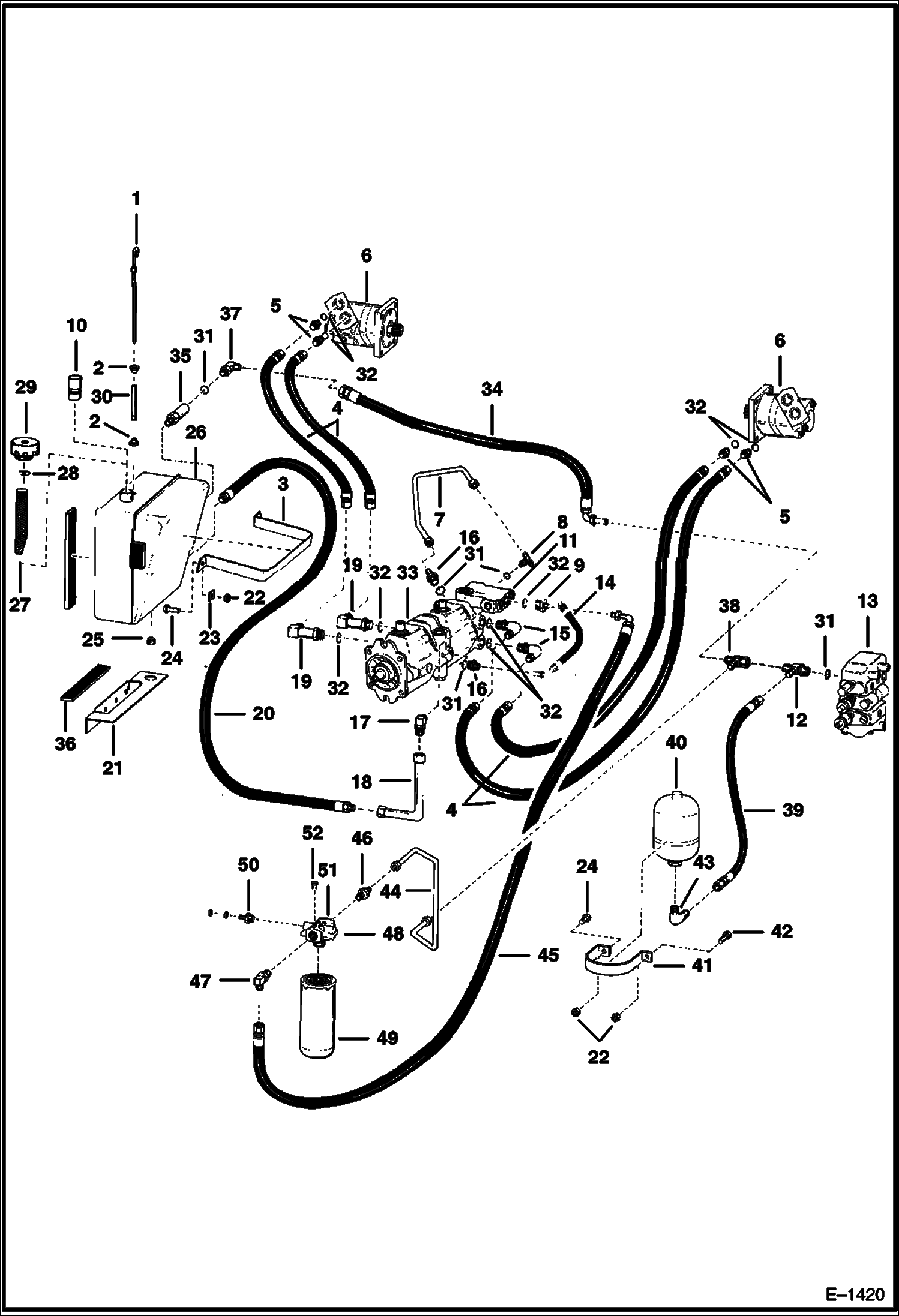

Запчасти Bobcat 800s HYDROSTATIC CIRCUITRY (S/N 14999 & Below) HYDROSTATIC SYSTEM

1

6560575

DIPSTICK

2

6553411

BUSHING

3

6559449

BAND

4

6559159

HOSE

5

15K10

ADAPTOR W/Ref. 32

6

MOTOR See Illustration HYDROSTATIC MOTOR/ D1526

7

6562870

TUBE

8

19K7

TEE W/Ref. 31

9

1303485

CONNECTOR W/Ref. 32

10

TUBE NLA - extension - Was 6563266 - A

11

6564034

BLOCK port

12

21K7

TEE W/Ref. 31

13

VALVE See Illustration CONTROL VALVE/ E1272

14

6565155

HOSE

15

17K10

FITTING W/Ref. 32

16

15K7

FITTING W/Ref. 31

17

17KB1612

FITTING, HYD ELBOW Was 1300309B - A

18

6559873

TUBE

19

2513089

FITTING W/Ref. 32

20

6560251

HOSE

21

6559451

BRACKET tank

22

61D6

NUT 5

23

6559447

WASHER

24

17C624

BOLT 5

25

16F12

PLUG

26

TANK NLA - Was 6563264 - A

27

6558604

SCREEN

28

713133

SNAP RING

29

CAP NLA - Pack of 12 - Was 1779011B - A

29

6577785

CAP breather - Qty. of 1

30

6560574

TUBE

31

79K10

O RING 10

32

79K16

O RING 10

33

PUMP See Illustration HYDROSTATIC PUMPS/ D1518

34

6563265

HOSE

35

VALVE NLA - relief - Was 6562889 - A

36

6559448

SEAL rubber - Sold Per Foot - Was 6559445 - A

37

17K7

ELBOW

38

13K7

FITTING

39

595033

HOSE

40

6599590

ACCUMULATOR

41

6564885

BAND

42

17C616

BOLT 5

43

83F7

ELBOW

44

6564866

TUBE

45

6565288

HOSE

46

15KB1012

FITTING, HYD CONNECTOR Was 755055B - A

47

17KB1012

FITTING, HYD ELBOW Was 1302104B - A

48

HEAD See BTI210 NLA - filter - W/Ref. 49-51

49

6668819

FILTER, OIL HYD Was 6598903 - A

50

6599364

SWITCH pressure

50

6599365

KIT Nuts, washers & o-rings for switch

51

6599366

VALVE by-pass

51

6630157

VALVE by-pass

52

17C610

BOLT
