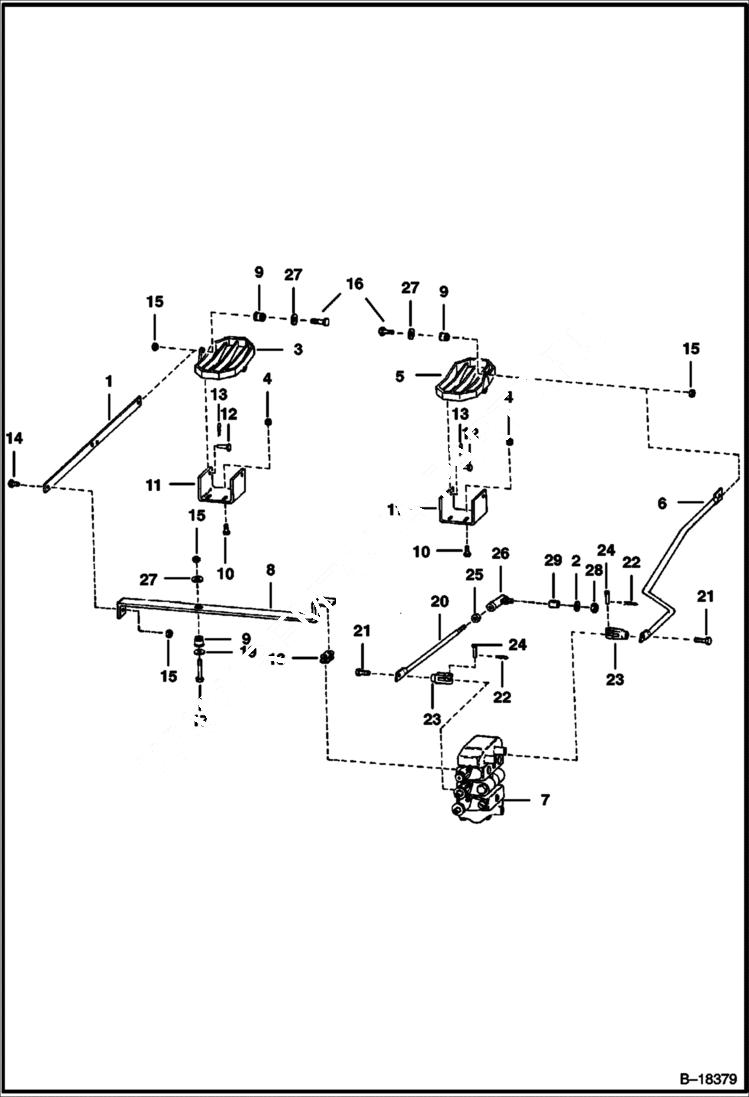

Запчасти Bobcat 800s CONTROL PEDALS (S/N 13001 - 14999) HYDRAULIC SYSTEM

1

6563159

LINKAGE

2

6557831

WASHER

3

7115219

PEDAL Was 6558451 - B

4

57D6

NUT 5

5

7115219

PEDAL Was 6558453 - B

6

6563158

LINKAGE

7

VALVE See Illustration CONTROL VALVE/ E1272

8

6558911

BAR

9

6665701

BUSHING, PRESS FIT See BTI228 Was 6630081 - A

10

6704349

BOLT Was 6514537 - B

11

6558912

BRACKET

12

1737762

PIN

13

1306637

CLIP

14

17C616

BOLT 5

15

85D6

NUT, 5

16

17C624

BOLT 5

17

1304938

BOLT

18

6515186

CONNECTOR

19

25E17

WASHER 5

20

6564861

ROD

21

18C616

BOLT 5

22

6513495

COTTER PIN

23

6560526

CLEVIS

24

6559014

CLEVIS PIN

25

8D6

NUT 5

26

1301362

BALL JNT ball - Was 6599953 - A

27

6563914

WASHER

28

86D6

NUT

29

6544654

BUSHING
