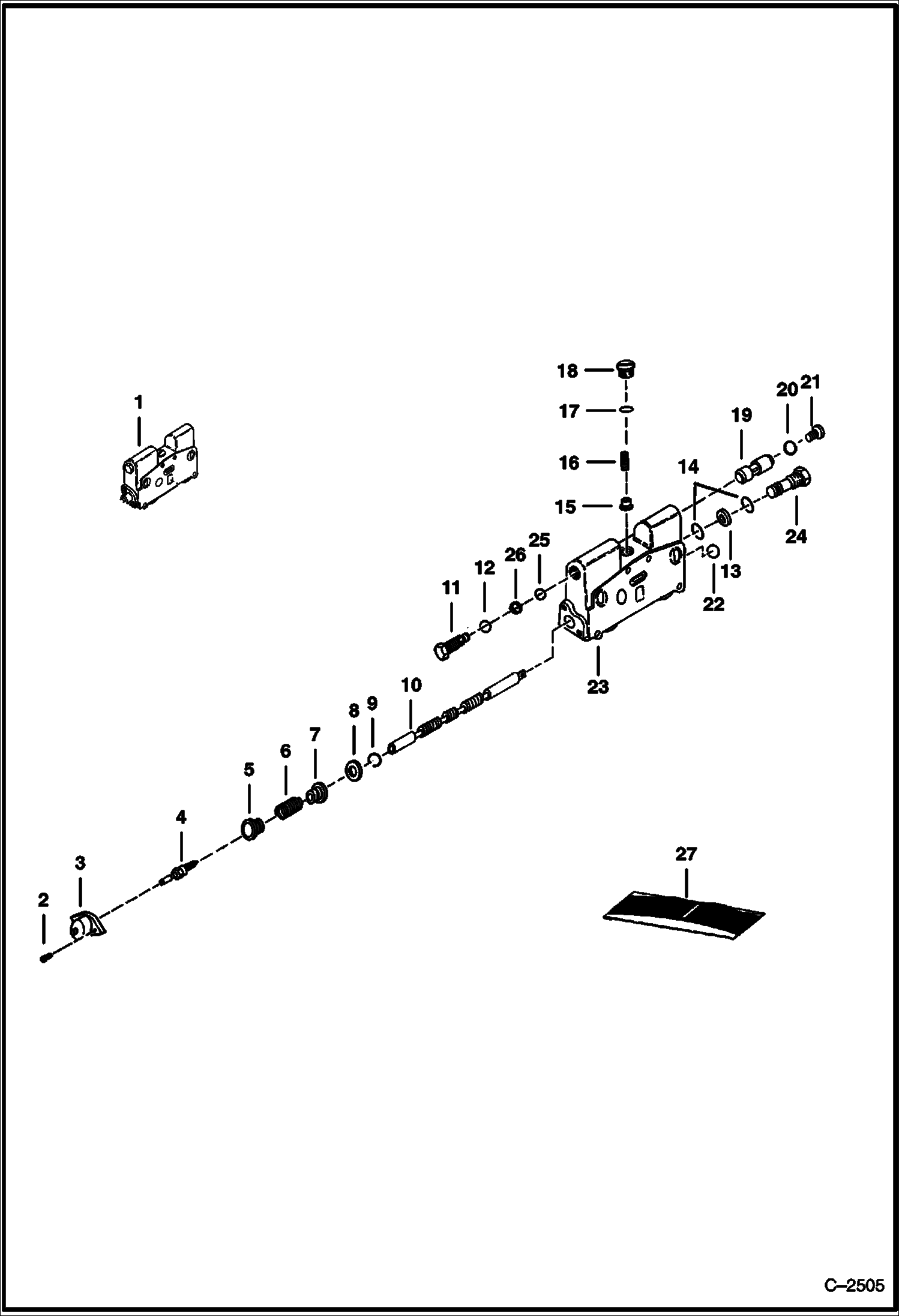

Запчасти Bobcat 800s LIFT SECTION HYDRAULIC SYSTEM

1

SECTION NLA - lift - Without Ref. 11 & 14 - Was 6598515 - A

2

6631988

SCREW

3

6513902

CAP

4

6598516

SCREW

5

6598679

WASHER centering

6

6513912

SPRING

7

6513910

WASHER centering

8

6513909

WASHER retainer

9

O-RING NSS

10

SPOOL NSS

11

6513850

VALVE relief

12

58K117

O RING 10

13

WASHER NSS

14

O-RING NSS

15

1550481

PLUNGER

16

1550482

SPRING

17

O-RING NSS

18

6513881

PLUG ASSY

19

SPOOL NSS

20

O-RING NSS

21

6513923

PLUG ASSY

22

O-RING NSS

23

BODY NSS

24

6598519

VALVE relief

25

58K113

O RING 10

26

WASHER NLA - back-up - Was 80K000113B - A

27

6598518

SEAL KIT Ref. 9, 13, 14, 17, 20 & 22
