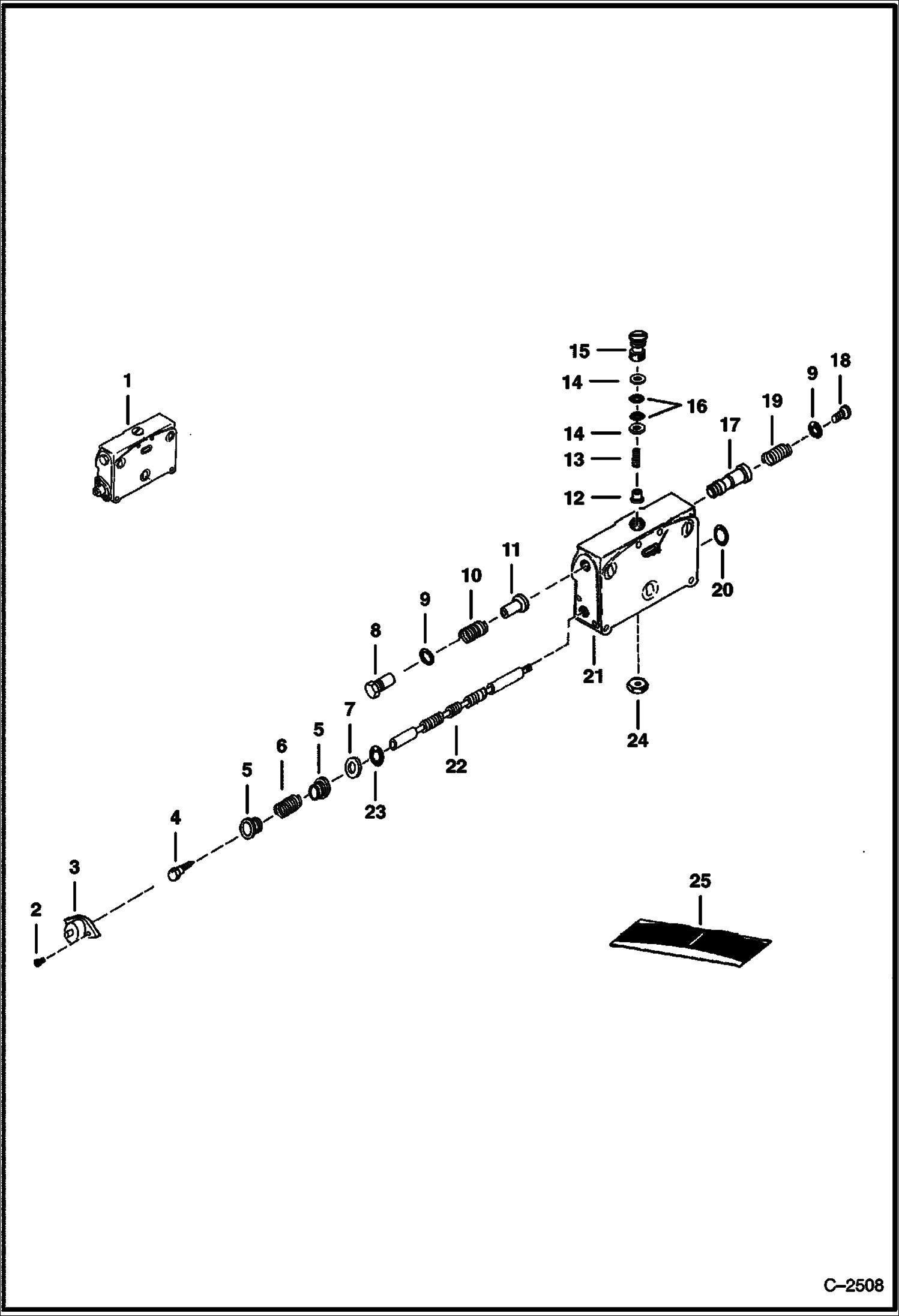

Запчасти Bobcat 800s TILT SECTION HYDRAULIC SYSTEM

1

6598514

SECTION tilt

2

6631988

SCREW

3

6513918

CAP

4

6513917

SCREW

5

6513899

WASHER centering

6

6513912

SPRING

7

6513909

WASHER retainer

8

6513915

PLUG lift check

9

O-RING NSS

10

6513914

SPRING

11

PLUNGER NLA - Was 6513916 - A

12

1550481

PLUNGER

13

1550482

SPRING

14

WASHER NSS

15

6513919

PLUG

16

O-RING NSS

17

SPOOL NSS

18

PLUG NLA - Was 6513920 - A

19

6513921

SPRING

20

O-RING NSS

21

BODY NSS

22

SPOOL NSS

23

O-RING NSS

24

ORIFICE NLA - size .1360 (3,45 mm) - Was 6599592 - A

25

6598517

SEAL KIT Ref. 9, 14, 16, 20 & 23
