Запчасти Bobcat 800s LIFT CYLINDER (W/Replaceable Tube) HYDRAULIC SYSTEM

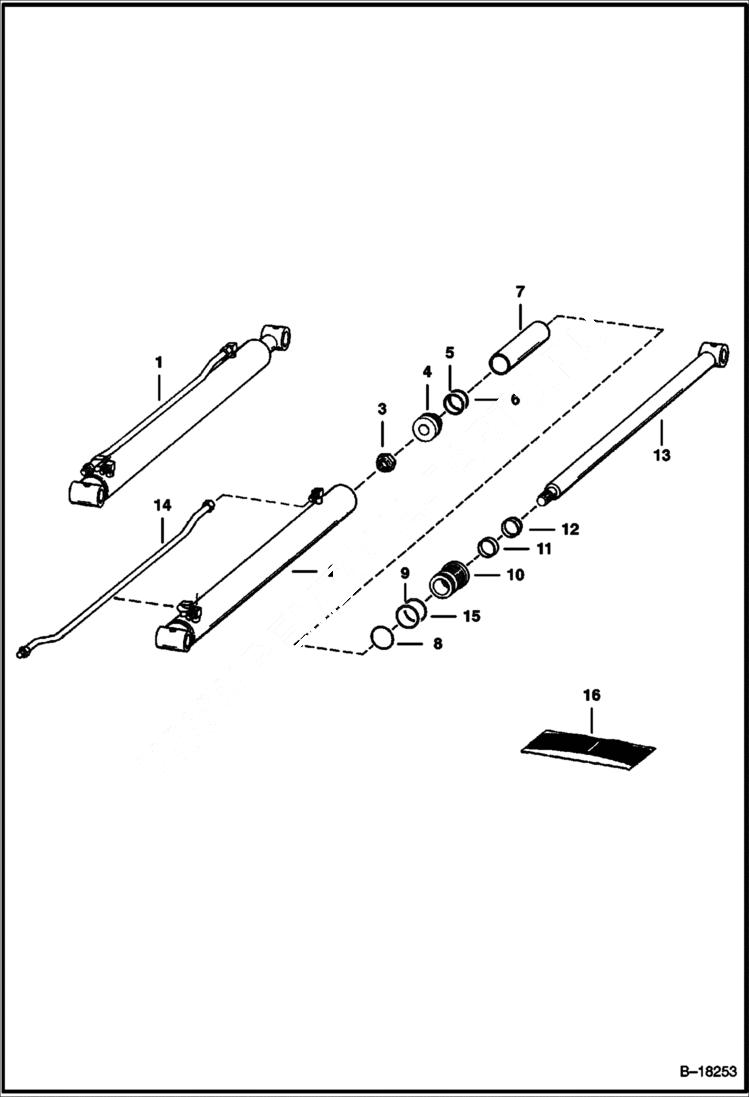

Схема запчастей Bobcat 800s - LIFT CYLINDER (W/Replaceable Tube) HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

6529692

CYLINDER lift - Ref. 2-14 - Was 6592991 - A

2

6529695

CASE Also Order 6529690 Tube

3

92D12

NUT Was 86D000012B - B

4

6543168

PISTON

5

RING NSS

6

O-RING NSS

7

SPACER NLA

8

O-RING NSS

9

WASHER NSS - back-up

10

6539236

HEAD Was 6534380 - A

11

SEAL NSS - rod

12

6690707

WIPER, ROD CYL Was 6665086 - A

13

6592895

ROD

14

6529383

TUBE Cyl. with fitting & clamp in line

14

6529690

TUBE Cyl. with fitting & clamp off set

15

58K140

O-RING

16

7138073

SEAL KIT Ref. 3, 5, 6, 8, 9, 11, 12 & 15 - Was 6589793 - A

Выбрано товаров: 17
