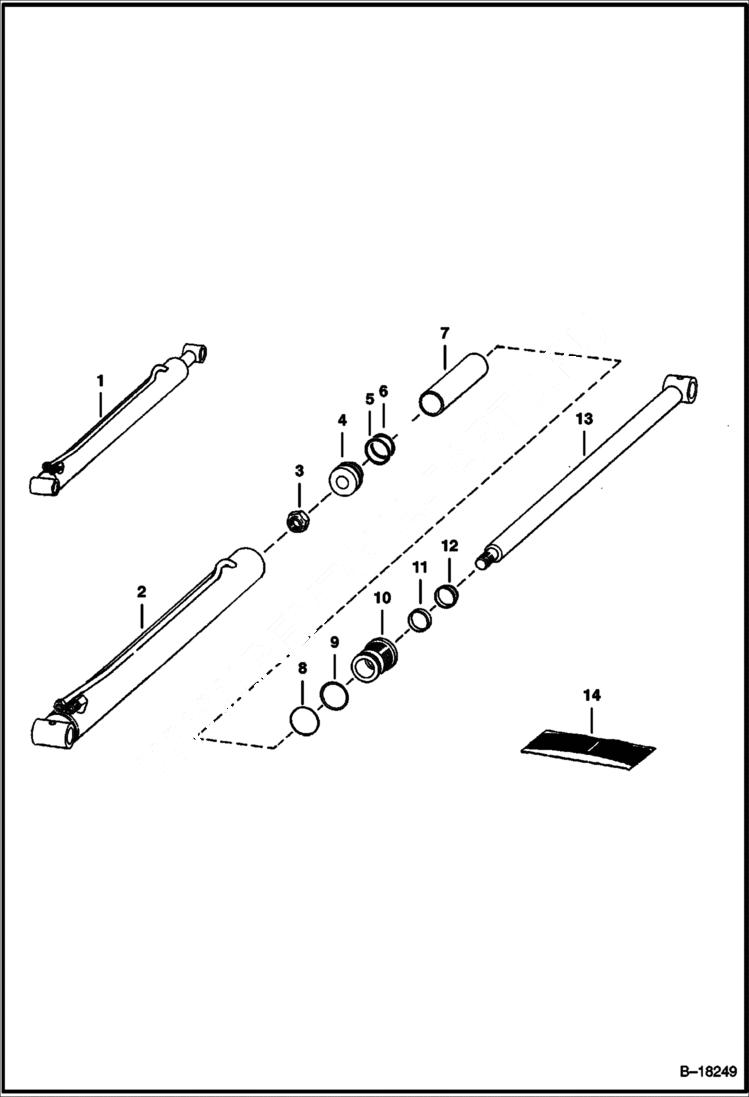

Запчасти Bobcat 800s LIFT CYLINDER (W/Welded On Tube) HYDRAULIC SYSTEM

1

CYLINDER See Illustration LIFT CYLINDER/ B18253 NLA - lift - Ref. 2-13 - Order 6529692 CYL.

2

CASE NLA - Order 6529695 Case & 6529690 Tube

3

92D12

NUT Was 86D000012B - A

4

6543168

PISTON

5

RING NSS

6

O-RING NSS

7

SPACER NLA

8

O-RING NSS

9

WASHER NSS - back-up

10

6539236

HEAD Was 6555078 - A

11

SEAL NSS

12

SEAL NSS - wiper

13

6592895

ROD

14

7138073

SEAL KIT Ref. 5, 6, 8, 9, 11 & 12 - Was 6589793 - A
