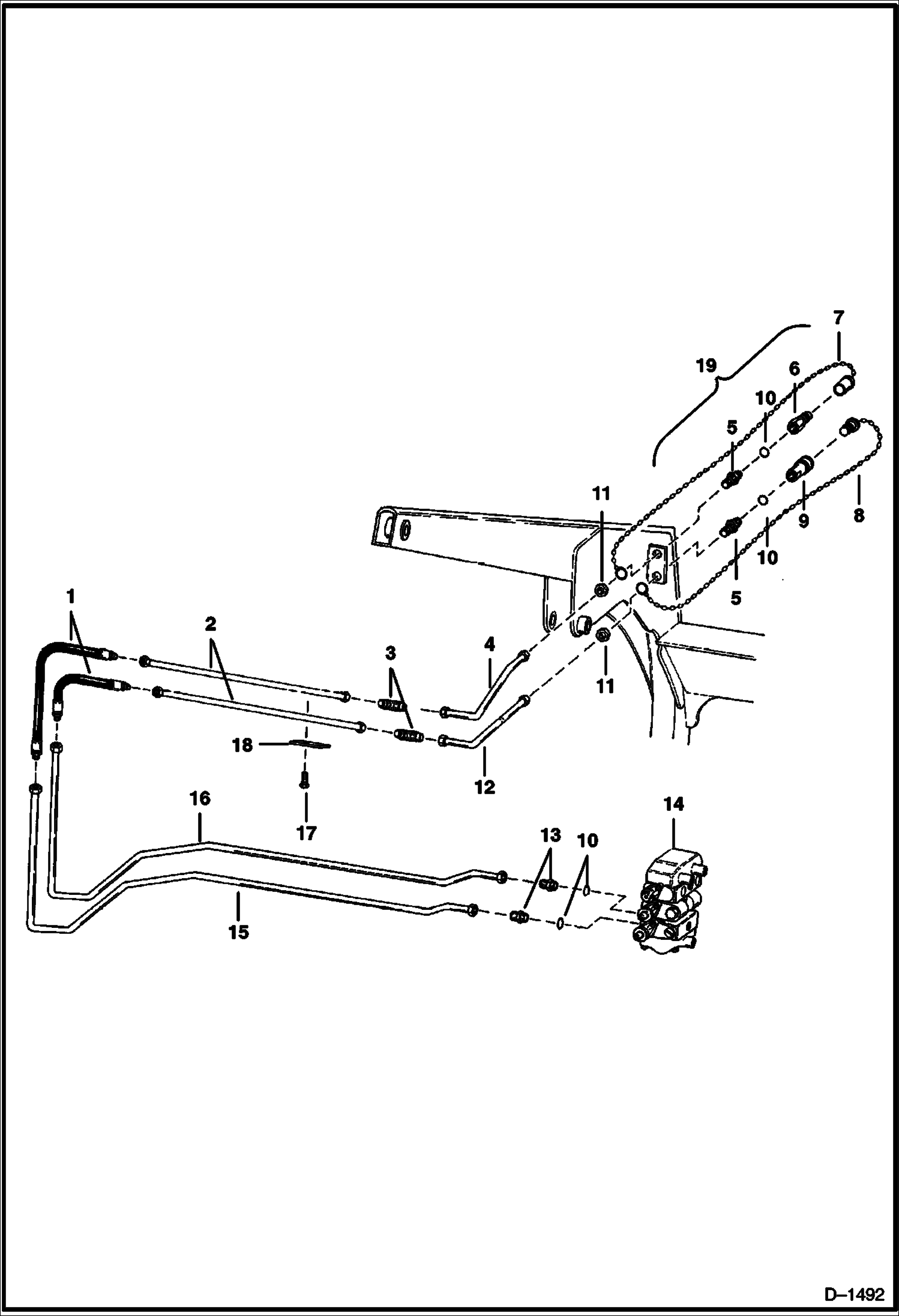

Запчасти Bobcat 800s AUXILIARY HYDRAULICS (S/N 14999 & Below) HYDRAULIC SYSTEM

1

6560402

HOSE

2

6559442

TUBE

3

77F7

ELBOW

4

6559500

TUBE

5

45K7

CONNECTR

6

6598757

COUPLER, POPPET MALE straight

7

6515168

CAP Steel

8

6515167

PLUG Steel

9

6598758

COUPLER, POPPET FEMALE straight

9

48K16

O RING 10

9

6665430

BACKUP RING

10

79K10

O RING 10

11

86F7

LOCK NUT

12

6559501

TUBE

13

15K7

FITTING W/Ref. 10

14

VALVE See Illustration CONTROL VALVE/ E1272

15

6563855

TUBE

16

6563856

TUBE

17

84G3724

BOLT

18

6559459

WASHER

19

6513709

CAP PLUG W/Plug assy. - Rubber
