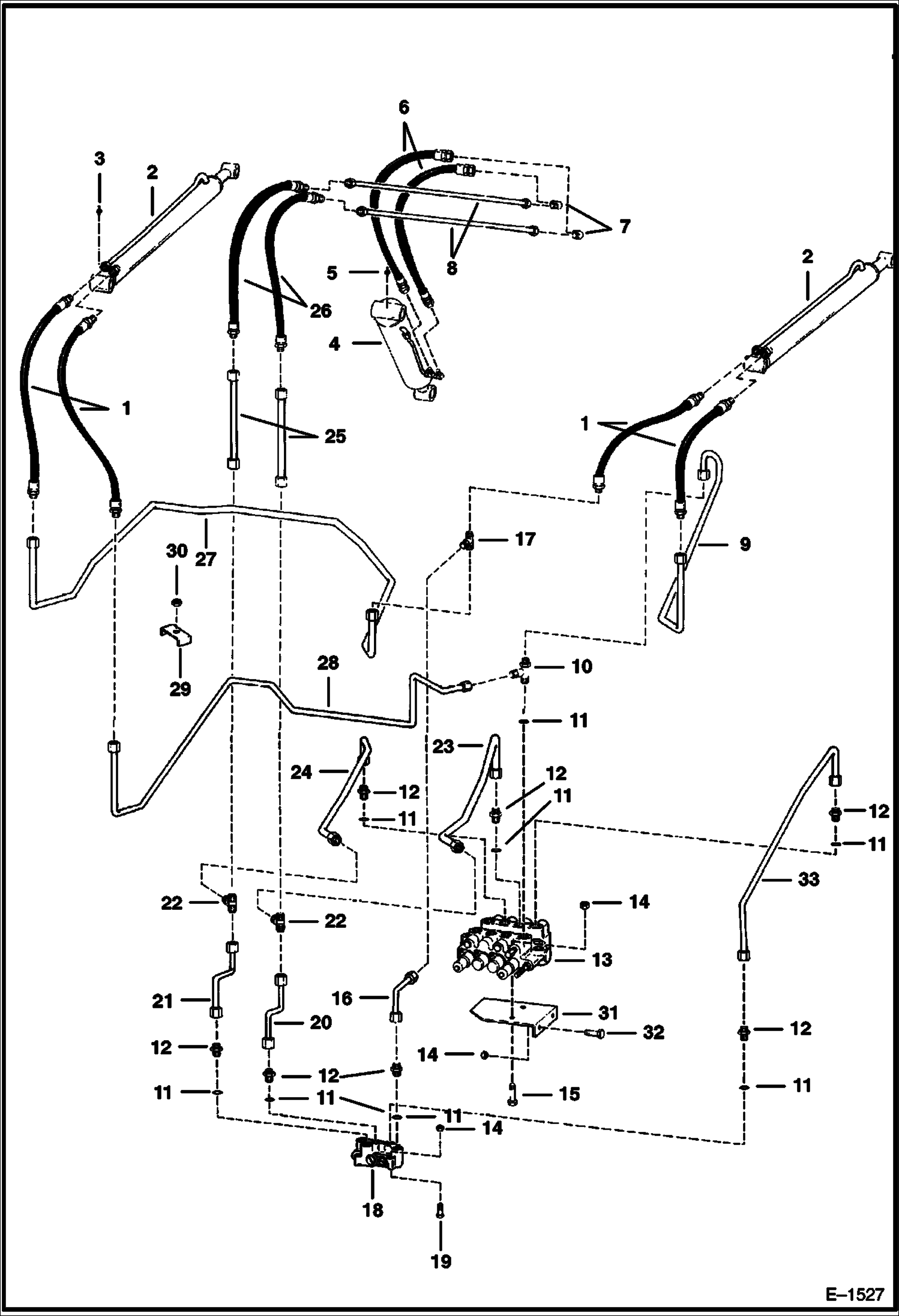

Запчасти Bobcat 800s HYDRAULIC CIRCUITRY (S/N 15001 Thru 21514) HYDRAULIC SYSTEM

1

6543063

HOSE

2

CYLINDER See Illustration LIFT CYLINDER/ B18253 See Illustration LIFT CYLINDER/ B18249 LIFT

3

11H15

GREASE FITTING

4

CYLINDER See Illustration TILT CYLINDER/ B18257 See Illustration TILT CYLINDER/ B18256 TILT

5

10H25

FITTING, GREASE 5

6

659892

HOSE ASSY

7

77F7

ELBOW

8

6559442

TUBE

9

6565587

TUBE

10

21K7

TEE W/Ref. 11

11

79K10

O RING 10

12

15K7

FITTING W/Ref. 11

13

VALVE See Illustration CONTROL VALVE/ E1509

14

61D5

NUT

15

17C560

BOLT

16

6565590

TUBE

17

13K7

FITTING

18

VALVE See Illustration BUCKET POSITIONING VALVE/ B18380 BUCKET POSITIONING

19

17C528

BOLT

20

6565589

TUBE

21

6565588

TUBE

22

10K7

TEE

23

6565585

TUBE

24

6565584

TUBE

25

6565597

TUBE

26

6560402

HOSE

27

6565579

TUBE

28

6565580

TUBE

29

6502203

CLAMP

30

85D6

NUT, 5

31

6565558

MOUNT valve

32

17C616

BOLT 5

33

6565586

TUBE
