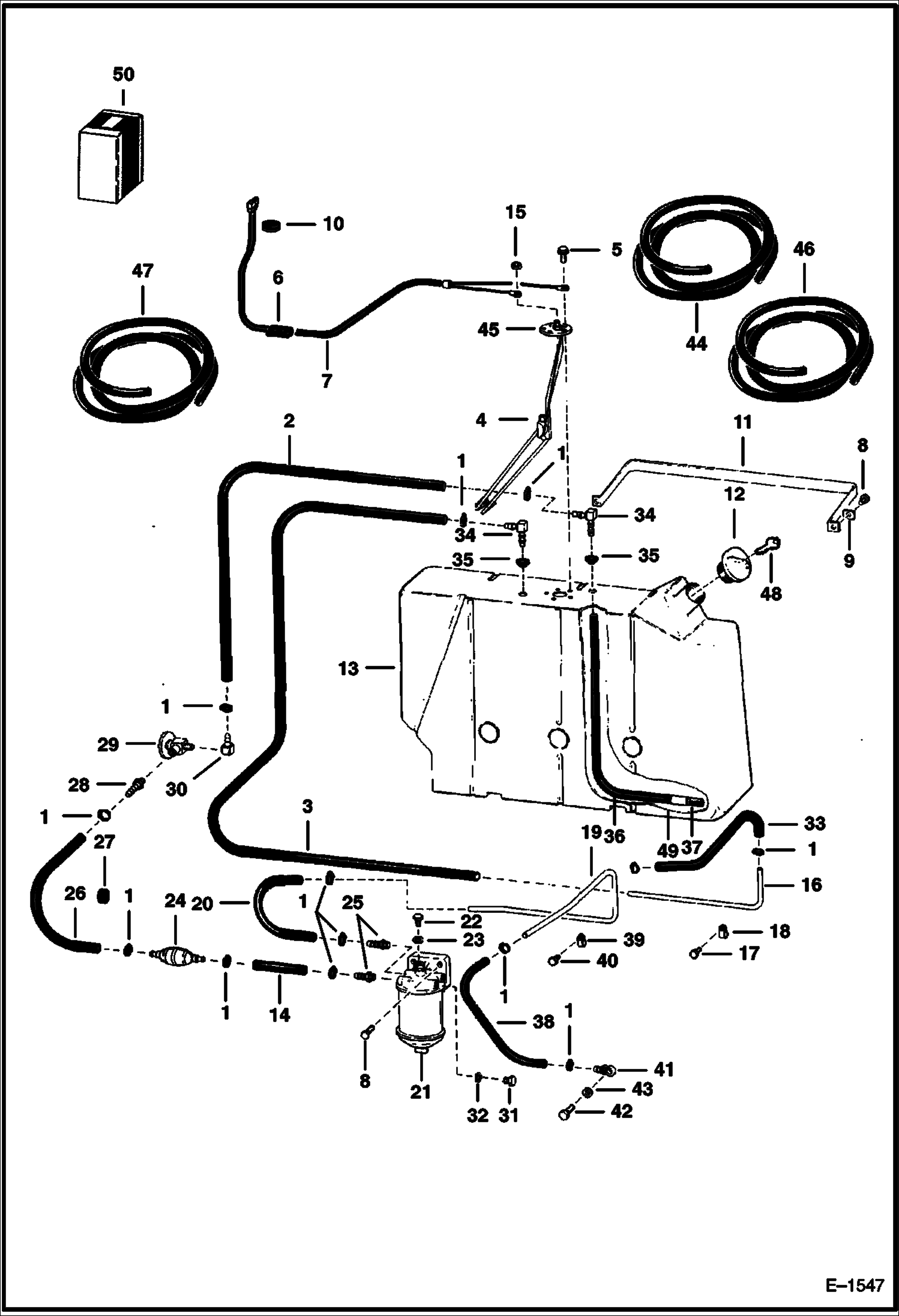

Запчасти Bobcat 800s FUEL SYSTEM (S/N 13316 & Above) MAIN FRAME

1

42HS04

CLAMP, HOSE Was 6515575 - A

2

HOSE NLA - 38'' (965,2 mm) - Order Ref. 44

3

HOSE NLA - 48'' (1219,2 mm) - Order Ref. 44

4

6562552

SENDER

4

6568175

SENDER, FUEL

5

85G1008

SCREW

6

6562606

SEAL

7

6560117

WIRE

8

84G3716

SCREW 5

9

6559447

WASHER square

10

742876

GROMMET

11

6562605

BAND

12

6661114

CAP. DIESEL Green - Was 6632468 - A

12

CAP NLA - locking - Code GC020 - Was 6630604 - A

12

6661696

CAP, FUEL LOCKING locking - Code PK510 - W/Ref. 48

13

TANK NLA - Was 6565516

13

6567944

TANK See BTI195

14

HOSE NLA - 6'' (152,4 mm) - Order Ref. 46

15

14D10

NUT

16

6564567

TUBE

17

18C612

BOLT

18

30H31

CLAMP 10

19

6564566

TUBE

20

HOSE NLA - 13'' (330,2 mm) - Order Ref. 46

21

6560348

FITLER, FUEL ASSY See Illustration FUEL FILTER/ B5653

22

6515676

PLUG

23

6515468

WASHER

24

6657734

PUMP, PRIMER HAND 124 mm (4.88'') long - A

25

1324240

CONNECTOR

26

HOSE NLA - 12'' (304,8 mm) - Order Ref. 46

27

6515603

GROMMET

28

6513421

CONNECTOR Use W/barbless fuel valve

29

6632593

VALVE shut off - Was 6512138 - A

30

6598753

ELBOW

31

6515682

PLUG

32

6515466

WASHER sealing

33

HOSE NLA - 8'' (203,2 mm) - Order Ref. 44

34

6598908

ELBOW Was 6681462 - A

35

6553411

BUSHING 0.38'' ID

36

HOSE NLA - 21'' (533,4 mm) - Order Ref. 46 - Was 6564193 - A

37

6650239

SCREEN, FUEL PICKUP Was 6598911 - A

38

HOSE NLA - 12'' (304,8 mm) - Order Ref. 46

39

30H15

CLIP

40

18C508

BOLT

41

6511033

CONNECTOR bango - To Injection Pump

42

6555922

BOLT hollow

43

2FM12155

WASHER sealing

44

6577821

HOSE bulk - sold per foot - Was 672221 - A

45

6630972

GASKET

46

6569752

HOSE BULK/FT bulk - sold per foot

47

6577822

HOSE bulk - Sold Per Foot - Was 6562515 - A

48

6654374

KEY Code GC020

48

6587458

KEY Code PK510

49

6661213

RING, COMPRESSION
