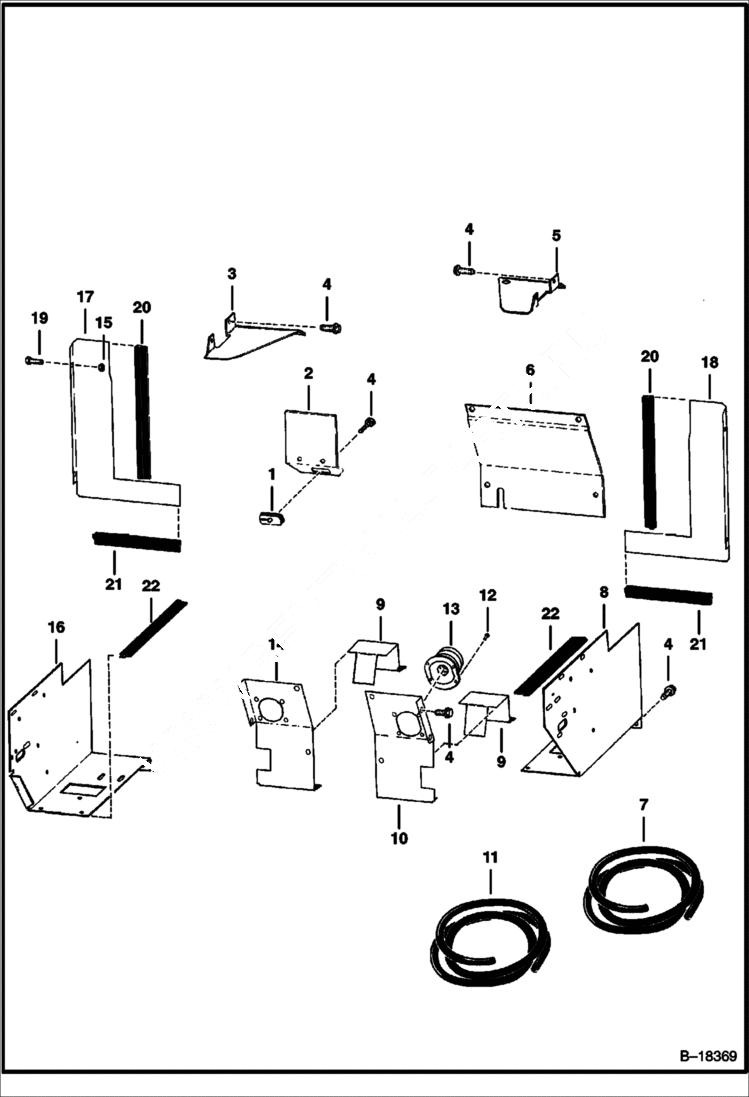

Запчасти Bobcat 800s PANELS (S/N 19999 & Below) MAIN FRAME

1

6553653

GROMMET

2

6562807

SHIELD

3

6562450

BRACE

4

84G3712

BOLT 5

5

6562451

BRACE

6

6562589

COVER

7

6513152

SEAL bulk - sold per foot

8

6562590

SHIELD R.H.

9

6559762

STEP

10

6563546

PANEL R.H.

11

4126590

MOULDING bulk - sold per foot

12

6598092

RIVET Was 6512797 - B

13

6532127

BOOT rubber - Was 6563540 - A

14

6563545

PANEL L.H.

15

85D6

NUT, 5

16

6562591

SHIELD L.H.

17

6564683

SHIELD LH

18

6564684

SHIELD RH

19

17C612

BOLT 5

20

MOULDING NLA - 17'' (431,8 mm) - Order Ref. 7

21

MOULDING NLA - 12 1/2''(317,5 mm) - Order Ref. 7

22

MOULDING NLA - 23'' (584,2 mm) - Order Ref. 11
