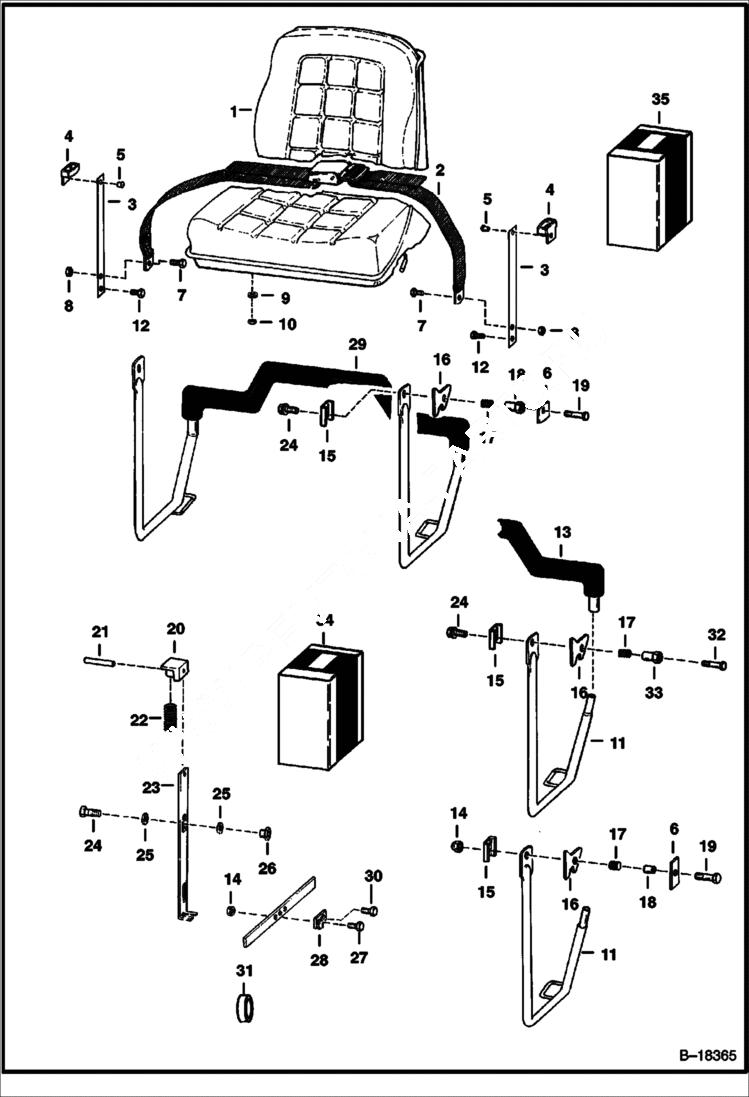

Запчасти Bobcat 800s SEAT & SEAT BAR MAIN FRAME

1

SEAT See Illustration SEAT/ B7185

2

SEAT BELT NLA - Order Ref. 35 - Was 6564774 - A

2

SEAT BELT NLA - Order 6675074 seat belt & (2) of Ref. 3 (6725373 spring plate) - Was 6667875 - A

2

SEAT BELT NLA - w/spring plates - Order 6675074 seat belt & (2) of Ref. 3 (6725373 spring plate) - Was 6725403 - A

2

6675074

SEAT BELT W/O spring plates

3

GUIDE ASSY NLA - W/Ref. 4 & 5 - 13.75'' - used W/NLA 6564774 seat belt - Was 6565354 - A

3

GUIDE ASSY NLA - W/Ref. 4 & 5 - 12.25'' - used W/NLA 6667875 seat belt - Order 6711908 spring plate, Ref. 4 & (2) of Ref. 5 - Was 6711907 - A

3

6711908

SPRING PLATE Use W/Ref. 2 (NLA/6667875 seat belt)

3

6725373

SPRING PLATE Use W/Ref. 2 (6675074 seal belt)

4

GUIDE NLA - Order 6703703 - Was 6565355

5

6630207

RIVET 5 Was 6512797 - A

6

6564506

WASHER

7

17C716

BOLT

8

85D7

NUT

9

4E5

WASHER Was 4E000006B - B

10

61D5

NUT Was 61D000006B - B

11

ARM NLA - L.H. - Order Ref. 29 - Was 6563296 - A

11

ARM NLA - R.H. - Order Ref. 29 - Was 6563295 - A

12

84G3712

BOLT 5

13

SEAT BAR NLA - Order Ref. 29 - Was 6563095 - A

14

83D6

NUT 5

15

6563557

WASHER

16

6563313

RETAINER

17

6704453

SPRING Was 6503387 - A

18

6564507

BUSHING

19

17C636

BOLT

20

6563148

BLOCK, SPRING

21

14J2512

PIN 5

22

6702430

SPRING, COMPRESSION Was 6563149 - A

23

6563160

LOCK Was 6563150 - A

24

17C612

BOLT 5

25

6700170

WASHER Was 6563152 - A

26

6559479

NUT

27

17C616

BOLT 5

28

6563151

LINK

29

6706324

SEAT BAR 1 Piece - Was 6564588 - A

30

31C614

BOLT

31

6562956

CLAMP

32

35C608

BOLT

33

BUSHING NLA - Order 6564506 & 6564507

34

KIT See Illustration SEAT BAR KIT/ C3341 NLA - GAS SPRING SEAT BAR

35

KIT NLA - Seat belt - Order Ref. 2 - Was 6713061 - A
