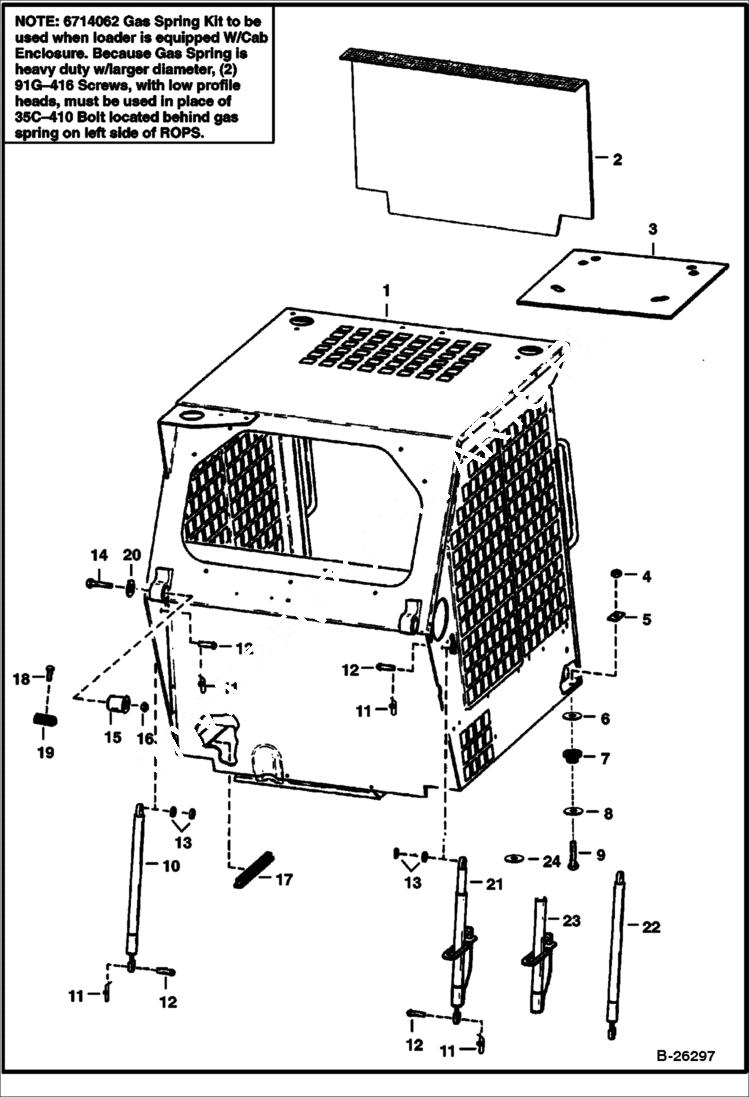

Запчасти Bobcat 800s OPERATOR CAB (S/N 20001 & Above) MAIN FRAME

1

6569249

OPERATOR CAB See BTI245 Includes Decals

2

6568271

INSULATION

3

6567890

INSULATION

4

59D8

NUT 5 Was 85D000008B - B

5

6553709

WASHER

6

6543321

WASHER

7

6560633

DAMPENER

8

6515817

WASHER

9

17C840

BOLT

10

6700171

GAS SPRING w/o lock - also order 6675257, clevis - Was 6706590 - A

10

6714062

KIT w/o lock - heavy duty gas spring SEE NOTE

10

91G416

SCREW SEE NOTE

10

6900531

INSTRUCTIONS for kit 6714062

11

6631418

RING, RETAINING Was 14J001008B - A

12

6567743

PIN

13

6567604

SPACER

14

17C1056

BOLT

15

6562602

BUSHING isolator

16

83D10

NUT 5

17

6555351

SEAL bulk - sold per foot

18

61G416

BOLT

19

6568475

STOP

20

6700170

WASHER Was 6563152 - B

21

GAS SPRING NLA - With lock - Order 22-24

22

6664205

GAS SPRING also order 6675257, clevis

22

6675257

CLEVIS

23

6708189

TUBE Was 6701175 - A

24

6701174

WASHER
