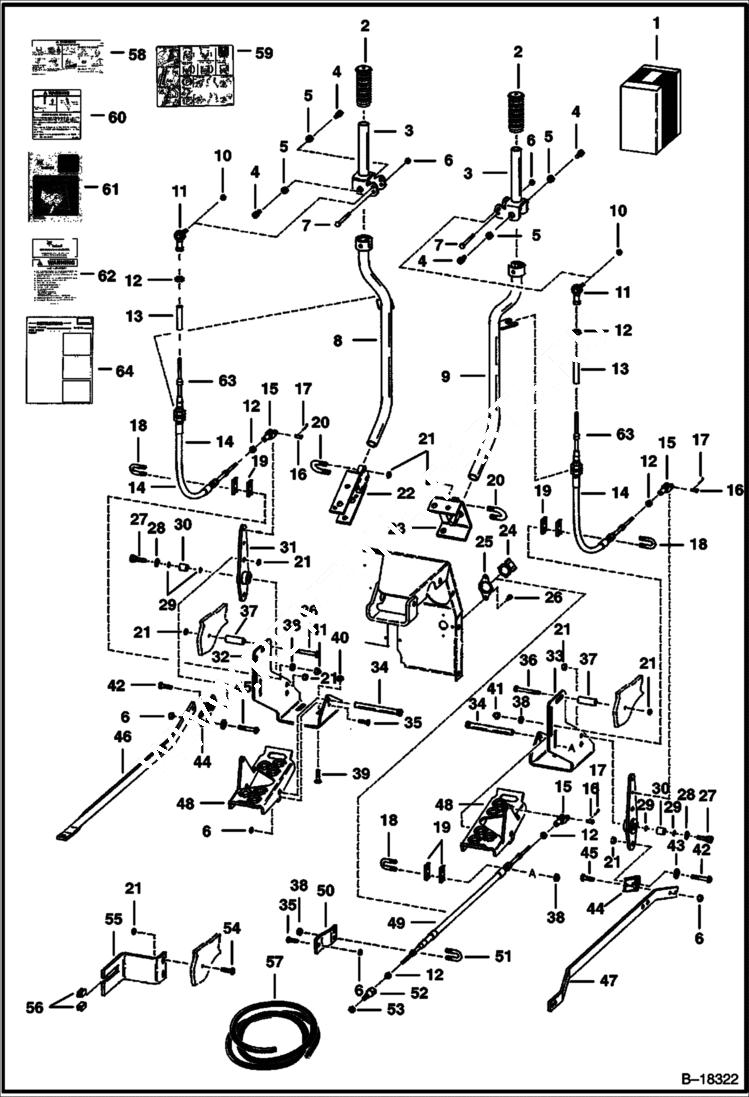

Запчасти Bobcat 800s HAND CONTROLS KIT ACCESSORIES & OPTIONS

1

KIT NLA - Ref. 2-29 & 32-64 - Was 6703460 - A

2

6513963

GRIP

3

6703380

LEVER

4

38C606

BOLT

5

6702990

BUSHING bronze sleeve

6

85D4

NUT 5

7

17C440

BOLT

8

6703384

LEVER

9

6703387

LEVER

10

86D4

NUT

11

6631036

JOINT

12

8D4

NUT

13

6658930

BOOT

14

6658613

CABLE

15

2J4200

CLEVIS

16

4F4051

PIN

17

6513495

COTTER PIN

18

6703888

U-BOLT

19

6703735

PLATE

20

6700768

U-BOLT

21

85D6

NUT, 5

22

6703374

BRACKET

23

6703377

BRACKET

24

6587763

BOOT

25

6592123

RETAINER

26

84G1612

SCREW

27

38C816

BOLT

28

6655781

BEARING thrust

29

58K014

O-RING 10

30

6702782

BUSHING bronze - Not in Kit

31

6703390

BELLCRANK W/Ref. 30

32

6703371

BRACKET

33

6703370

BRACKET

34

6703367

PIN

35

17C416

BOLT

36

17C640

BOLT 5

37

6703890

SPACER

38

83D5

NUT 5

39

37C616

BOLT

40

57D6

NUT 5

41

46D5

NUT

42

17C620

BOLT

43

6563914

WASHER

44

6658682

BEARING swivel

45

17C410

BOLT 10

46

6703709

LINK LH

47

6703710

LINK RH

48

6703368

PEDAL

49

6660354

CABLE

50

6565006

MOUNT

51

6592766

U-BOLT

52

6565005

ADAPTER

53

7D4

NUT

54

17C616

BOLT 5

55

6703892

BRACKET

56

GUIDE NLA - 2.20'' (55,9 mm) - Also Order Ref. 57

57

6660355

GUIDE bulk - Sold Per Foot

58

6704283

DECAL operations

59

6702997

DECAL warning

60

6703919

DECAL warning

61

6720908

MANUAL operators

62

6720909

HANDBOOK W/wire rope

62

6558309

WIRE ROPE Also Order 2 of 6558310

62

6558310

SLEEVE wire rope

63

6666534

SEAL

64

6720922

INSTRUCTIONS
