AIR SEAL KIT

Запчасти Bobcat 800s AIR SEAL KIT ACCESSORIES & OPTIONS

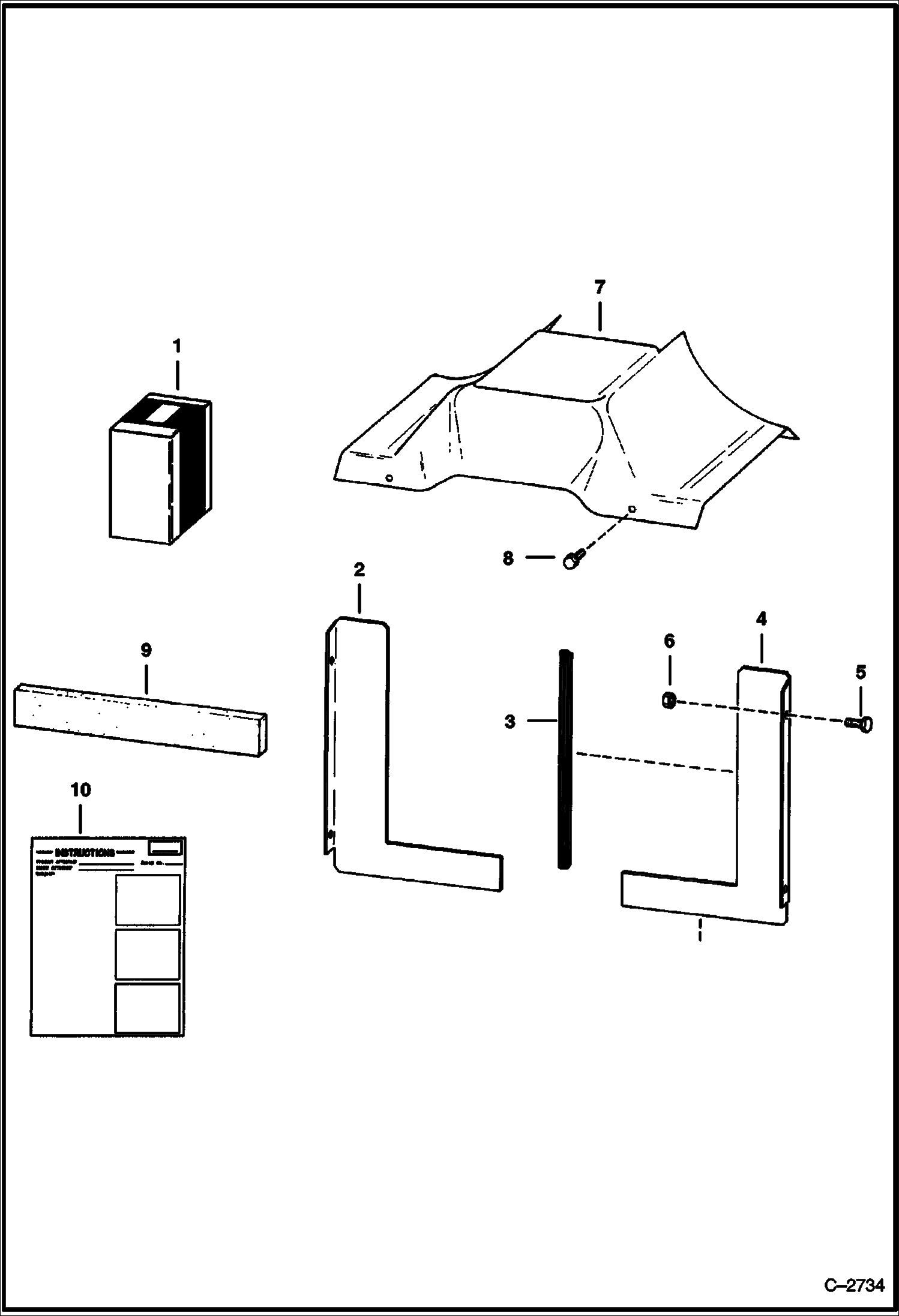

Схема запчастей Bobcat 800s - AIR SEAL KIT ACCESSORIES & OPTIONS
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

6564691

KIT air seal - Ref. 2-10

2

6564683

SHIELD LH

3

6564835

MOULDING rubber

4

6564684

SHIELD RH

5

17C612

BOLT 5

6

81D6

NUT

7

6563677

COVER rubber

8

84G3716

SCREW 5

9

SEAL NLA - foam - Use 24' of 6565114

10

INSTRUCTIONS NLA - Print Instructions from BASS - Was 6566350 - A
