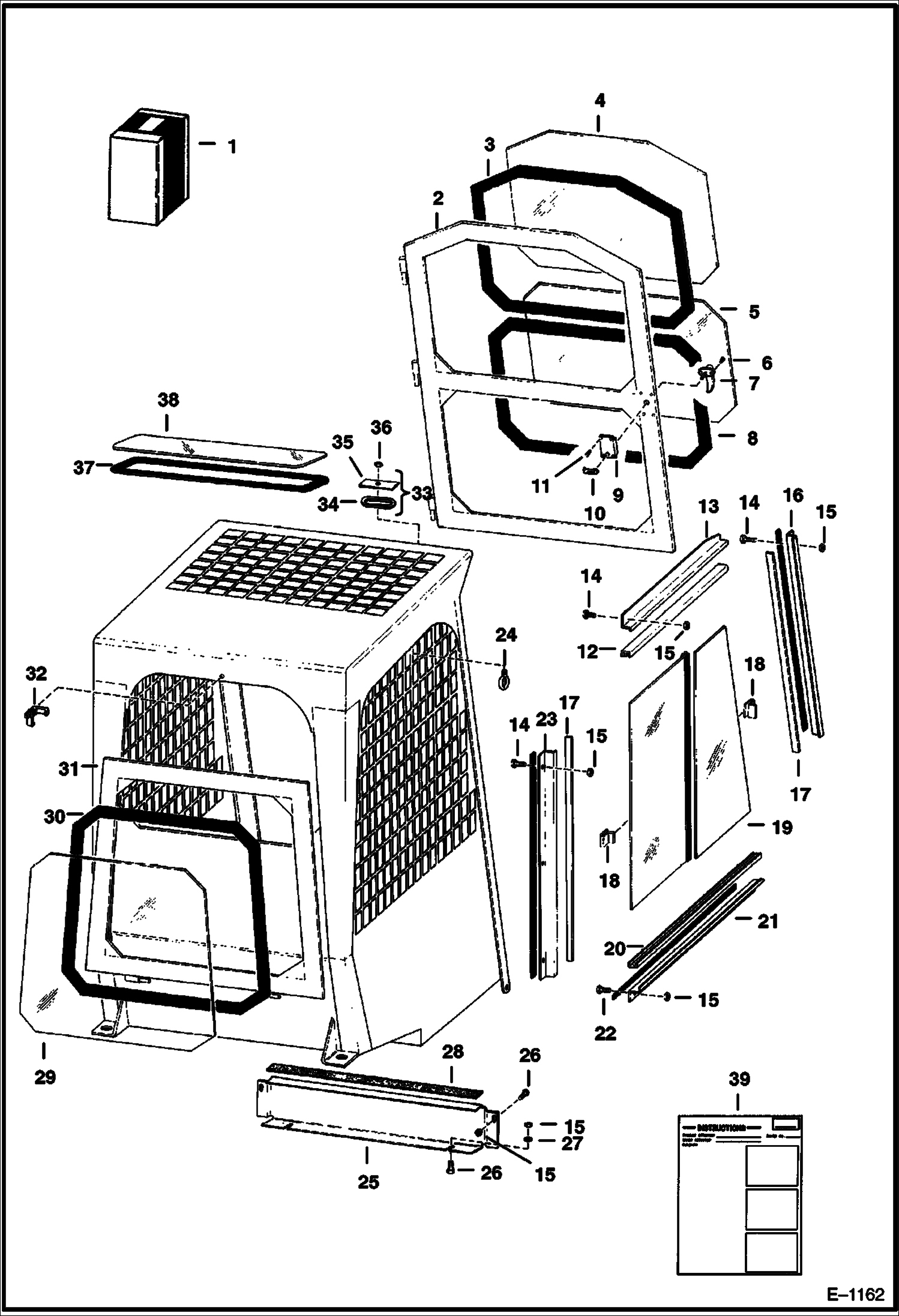

Запчасти Bobcat 800s CAB ENCLOSURE (S/N 13001 & Above) ACCESSORIES & OPTIONS

1

6590799

KIT cab enclosure

2

6540685

FRAME

3

SEAL NLA

4

WINDOW NLA - glass - Purchase Locally

5

WINDOW NLA - glass - Purchase Locally

6

75G1008

SCREW machine

7

1550695

HANDLE outside W/key

8

SEAL NLA

9

6598475

DOOR LATCH door

10

6515600

HANDLE inside

11

SCREW NLA - Was 59G1208 - A

12

CHANNEL NLA - Purchase Locally

13

6557688

FRAME right - W/Ref. 12

13

FRAME NLA - left - W/Ref. 12 - Was 6557687 - A

14

37C616

BOLT carriage - Was 6514537 - A

15

61D6

NUT 5

16

6552431

FRAME R.H.

16

6552432

FRAME L.H.

17

SEAL NLA - Purchase Locally

18

6519421

HANDLE

19

WINDOW NLA - glass

20

CHANNEL NLA - Purchase Locally

21

FRAME NLA - right - W/Ref. 20 - Order (1) 6552441 & (1) 6632565 - Was 6557686 - A

21

FRAME NLA - L.H. - W/Ref. 20 - Was 6557685 - A

22

17C610

BOLT

23

6552433

FRAME

23

6552434

FRAME

24

6544495

RING weather strip

25

6554789

PANEL front

26

17C616

BOLT 5

27

25E17

WASHER 5

28

6710498

SAFETY TREAD Was 6552646 - A

29

WINDOW NLA - glass

30

SEAL NLA

31

6541451

FRAME rear window

32

LATCH NLA - window - Was 6519179 - A

33

SEAL NLA - weather - Ref. 24 & 34-36 - Was 6544497 - A

34

STRIP NSS - weather

35

STRIP NSS - weather

36

81D4

NUT

37

SEAL NLA - Purchase Locally

38

WINDOW NLA - glass - Purchase Locally

39

6549633

INSTRUCTIONS
