BACK-UP ALARM

Запчасти Bobcat 800s BACK-UP ALARM ACCESSORIES & OPTIONS

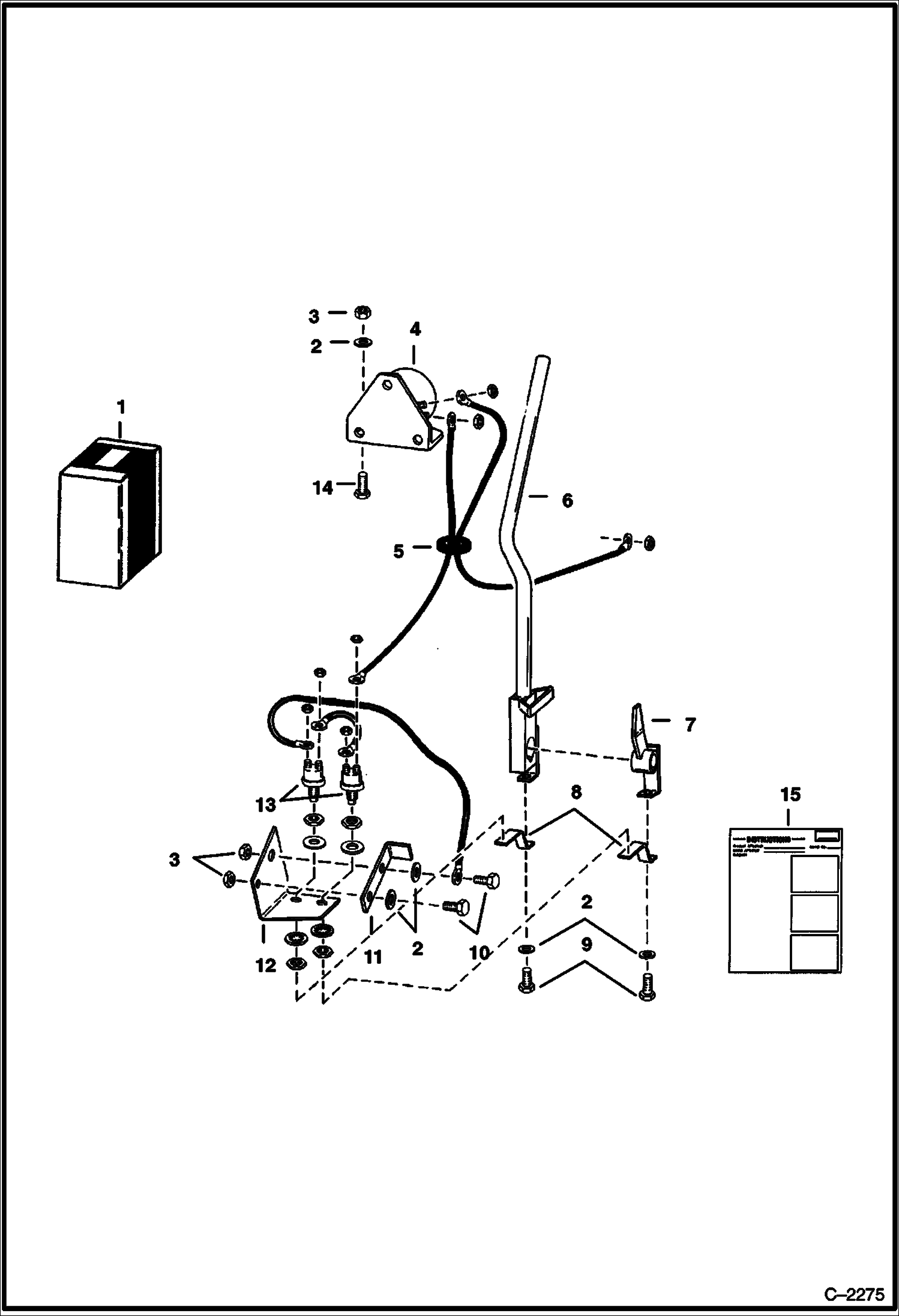

Схема запчастей Bobcat 800s - BACK-UP ALARM ACCESSORIES & OPTIONS
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

6590922

KIT back-up alarm - Ref. 2 - 10 & 12 - 15

2

25E18

WASHER

3

81D6

NUT

4

6640795

ALARM Was 6519359 - A

5

730630

GROMMET

6

LEVER NLA - Was 6591276 - A

7

6554510

ARM

8

6541950

ACTUATOR

9

17C608

BOLT

10

17C616

BOLT 5

11

6552559

STOP

12

6555591

BRACKET

13

6632973

SWITCH horn - Was 600259B - A

14

17C612

BOLT 5

15

6549636

INSTRUCTIONS NLA - Print Instructions from BASS - Was 6549636 - A
