AUXILIARY PEDAL LATCH KIT

Запчасти Bobcat 800s AUXILIARY PEDAL LATCH KIT ACCESSORIES & OPTIONS

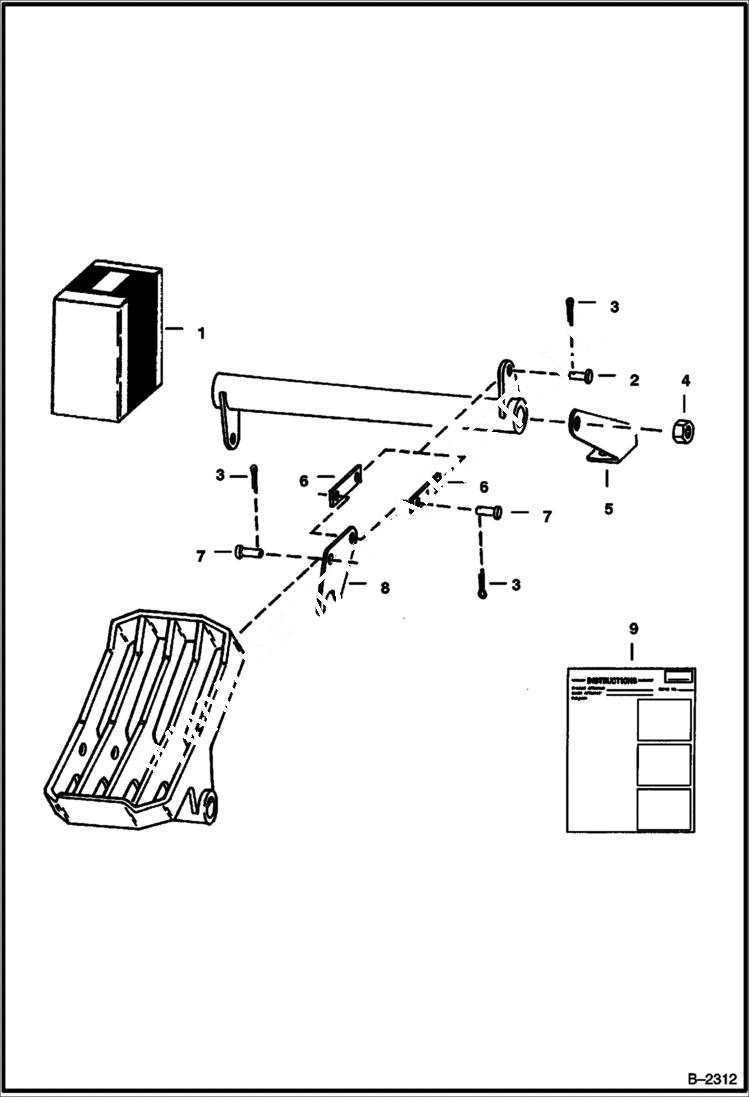

Схема запчастей Bobcat 800s - AUXILIARY PEDAL LATCH KIT ACCESSORIES & OPTIONS
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

6555237

KIT pedal latch - Ref. 2, 3, 5 - 9

1

6591426

KIT pedal latch - Ref. 2, 3, 5 - 9

2

6529777

PIN Was 224391 - A

3

1F316

PIN

4

81D8

NUT

5

6553569

MOUNT

6

6553568

LINK

7

4F6106

PIN

8

6553570

PLATE

8

PLATE NLA - Was 6591417 - A

9

INSTRUCTIONS NLA - Print Instructions from BASS - Was 6549968 - A
