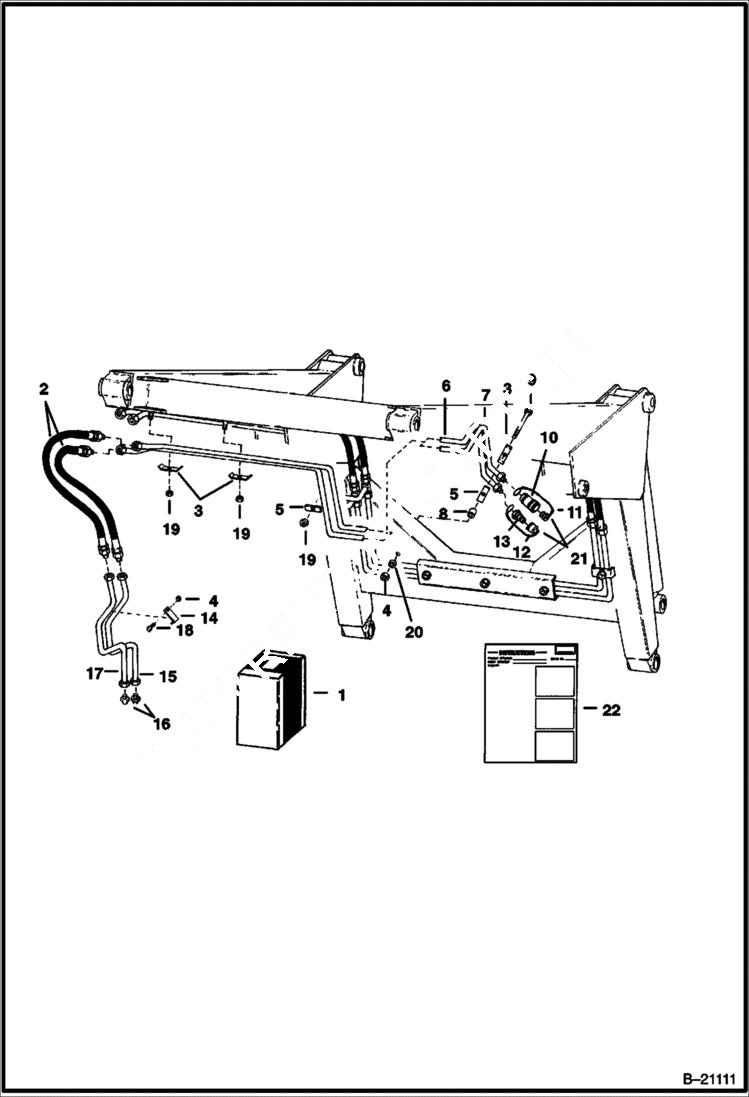

Запчасти Bobcat 800s AUXILIARY HYDRAULICS (S/N 20308 & Below) ACCESSORIES & OPTIONS

1

6553491

KIT aux. hyd. - Ref. 2 - 10 & 13 - 22

2

1321719

HOSE

3

6543344

CLAMP tube

4

81D6

NUT

5

6543345

CLAMP tube

6

6553436

TUBE

7

6553435

TUBE

8

6553496

SPACER

9

17C680

BOLT

10

6598756

QUICK COUPLER Female

10

25K40026

O RING 10

11

6515167

PLUG dust (Steel)

12

6515168

CAP Steel

13

6598755

QUICK COUPLER Male

14

31H42

CLIP tube

15

6543000

TUBE

16

15K7

FITTING

17

6543001

TUBE

18

17C616

BOLT 5

19

91D5

NUT 5 Was 81D000005B - A

20

SPACER NLA - Was 6591452 - A

21

6513709

CAP PLUG W/plug assy. - Rubber

22

INSTRUCTIONS NLA - Print Instructions from Bass - Was 6549794 - A
