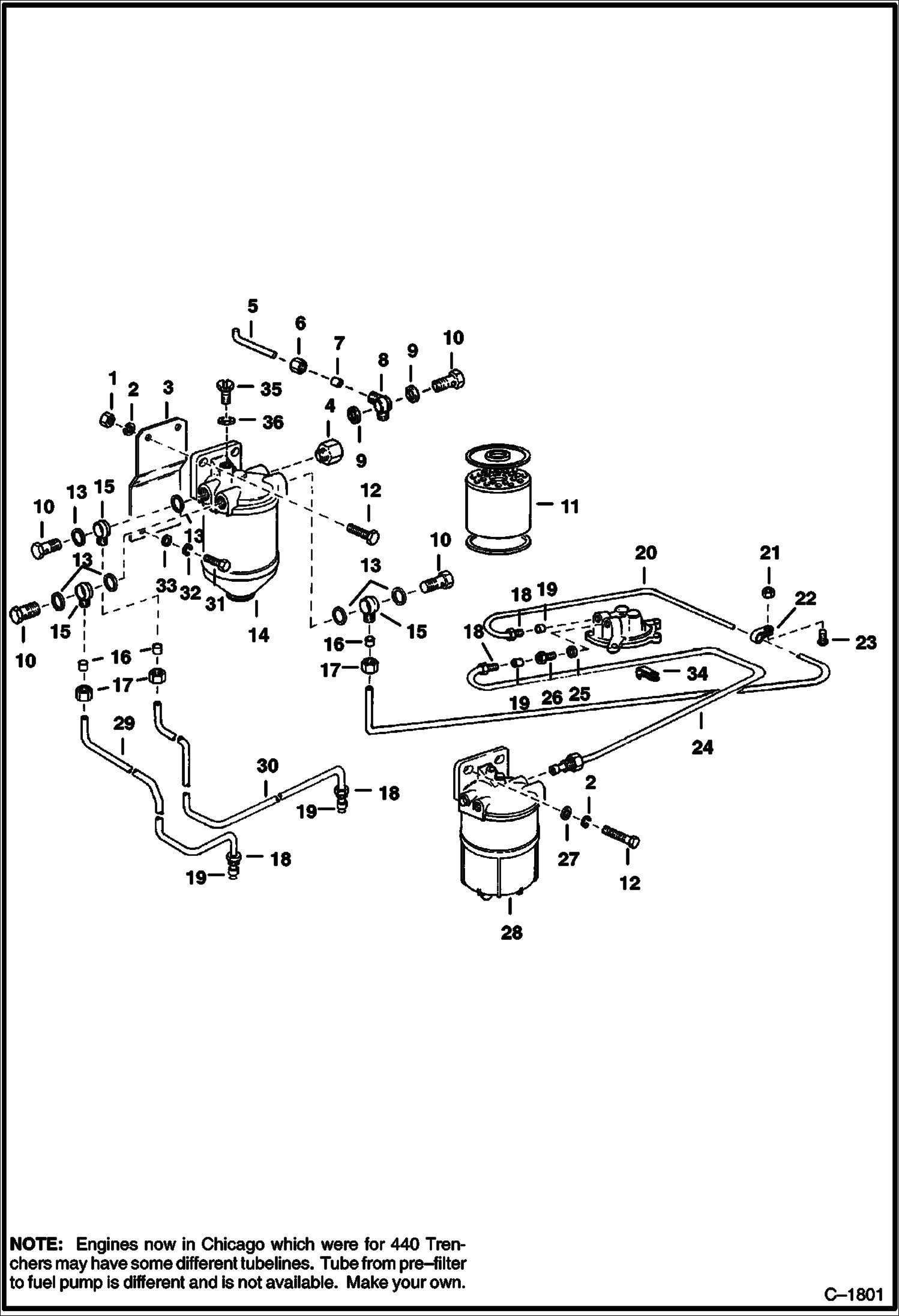

Запчасти Bobcat 800s FUEL OIL FILTER POWER UNIT

1

62D6

NUT 5

2

4E6

WASHER

3

BRACKET NLA - Was 6510445 - A

4

6510451

VALVE non-return

4

6515682

PLUG

5

PIPE NLA - To Induction Heater - Was 6511769 - A

6

3490133

UNION NUT

7

3490132

SEAL

8

6510452

CONNECTION

9

6515755

WASHER

10

3727284

BOLT banjo

11

3885315

FILTER, FUEL 12 W/Seals

12

18C616

BOLT 5

13

3727285

WASHER

14

6515756

FILTER

15

3727283

CONNECTER

16

3729965

FERRULE

17

3729963

NUT

18

3727374

NUT

19

3727375

FERRULE

20

PIPE NLA - lift pump to filter - W/Ref. 18, 19 & 22 - Was 6510443 - A

21

1781096

NUT Was 3725658B - A

22

3725656

CLIP

23

SCREW NLA - Was 3551778 - A

24

6510446

PIPE pre-filter to lift pump - W/Ref. 18, 19 & 34

25

WASHER NLA - Was 3739800 - A

26

3739799

VALVE non-return

27

3725703

WASHER plain

28

6513104

TRAP water

28

6598739

GASKET Upper

28

6598740

GASKET Lower

29

6510448

PIPE filter to injection pump - Return - W/Ref. 18 & 19

30

PIPE NLA - transfer pump to filter - W/Ref. 18 & 19 - Was 6510447 - A

31

18C514

BOLT

32

4E5

WASHER

33

3725700

WASHER plain

34

3725641

CLIP Was 6510444 - A

35

6636024

SCREW

36

6636025

WASHER
