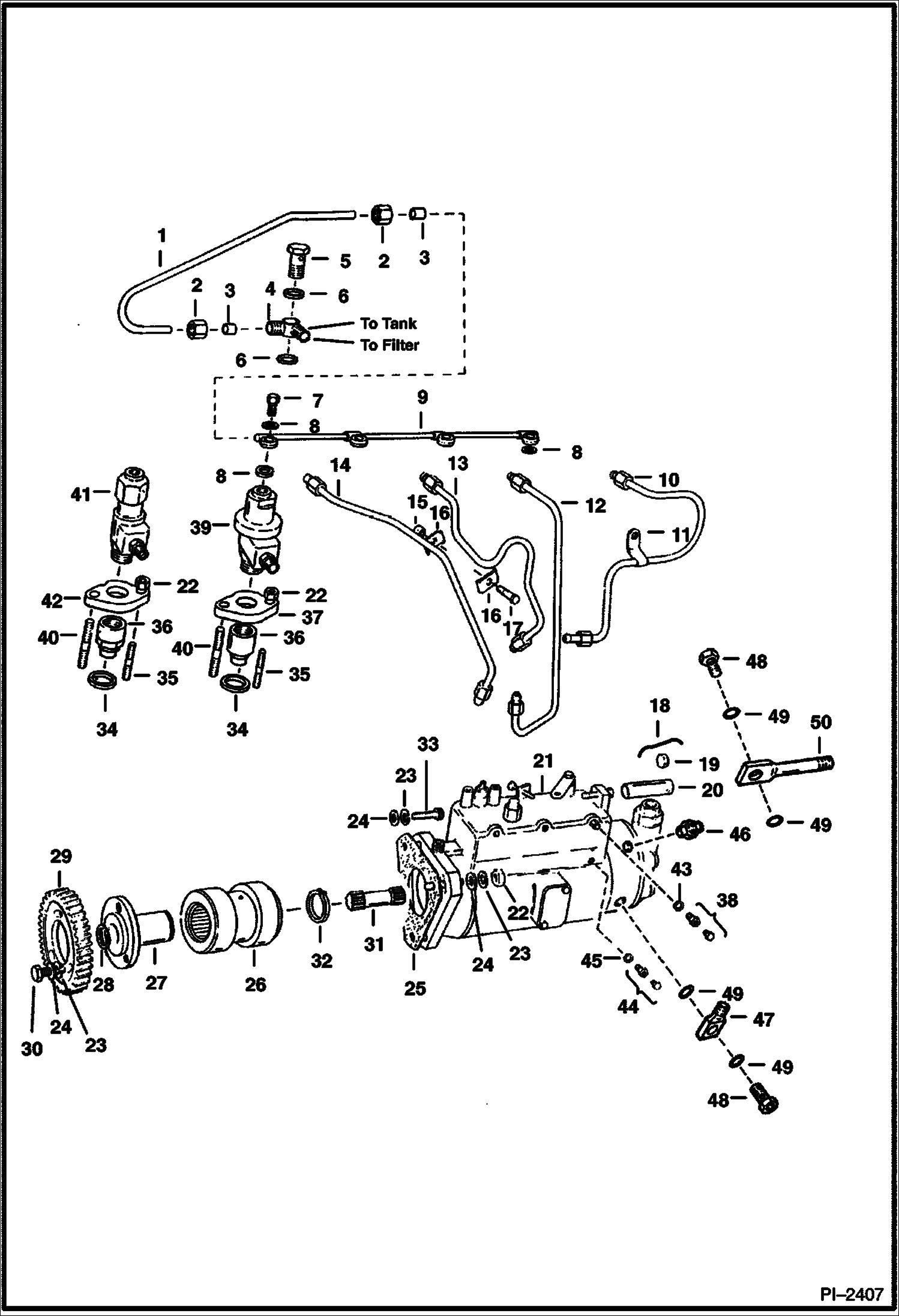

Запчасти Bobcat 800s FUEL INJECTION SYSTEM POWER UNIT

1

PIPE NLA - Was 6510465 - A

2

3490133

UNION NUT

3

3490132

SEAL

4

3490200

FITTING banjo

5

3490352

BOLT banjo

6

3490351

WASHER

7

3490094

BOLT banjo

8

3490095

WASHER 5

9

6510464

PIPE leak-off

10

PIPE cylinder - No. 4 - Was 6510459 - A

11

CLIP NLA - pipe - No. 4 - Was 6510460 - A

12

PIPE NLA - cylinder - No. 3 - Was 6510458 - A

13

PIPE NLA - cylinder - No.2 - Was 6510457 - A

14

6510456

PIPE cylinder - No. 1

15

NUT NLA - Was 6660649 - A

16

CLIP NLA - Order 6660647, (2) 6660648 & 6660649 - Was 3490347B - A

16

6660647

CLIP

17

6660648

BOLT Was 86G001014B - B

18

3490325

WIRE

19

3490324

SEAL

20

3490323

SLEEVE throttle lever adj. screw

21

PUMP NLA - fuel injection - Was 6512312

21

PUMP, FUEL INJ. PERKINS 4.108 NLA - Was 6512312REM - A

22

62D5

NUT

23

4E5

WASHER

24

3725700

WASHER plain

25

6668020

GASKET Was 3490326B - A

26

BEARING NLA - Was 6510558 - A

26

HOUSG BRG NLA - Was 3734952 - A

26

3734157

BSHG

27

HUB NLA - Was 6510454 - A

27

3734944

HUB

28

SNAP RING NLA -Was 666446 - A

29

SHAFT NLA - Was 6510455 - A

30

3490214

SCREW

31

SHAFT NLA - quill - Was 6512394 - A

32

SNAP RING NLA - Was 666712 - A

32

SNAP RING NLA - Was 1300303 - A

33

18C524

BOLT

34

3490720

WASHER

35

6510488

STUD

36

6510462

NOZZLE

37

FLANGE NSS

38

SCREW NLA - vent - Was 6598065 - A

39

INJECTOR NLA - Order Ref. 41

40

3490292

STUD

41

6599333

INJECTOR W/Ref. 36 & 42 - Was 6510461 - A

42

6510463

FLANGE

43

WASHER NLA - Was 6598066 - A

44

6598063

SCREW vent

45

6598064

WASHER

46

3739167

CONNECTOR

47

3739017

BANJO

48

3748597

SCREW banjo

49

3739007

WASHER

50

3739041

BANJ.CONN
