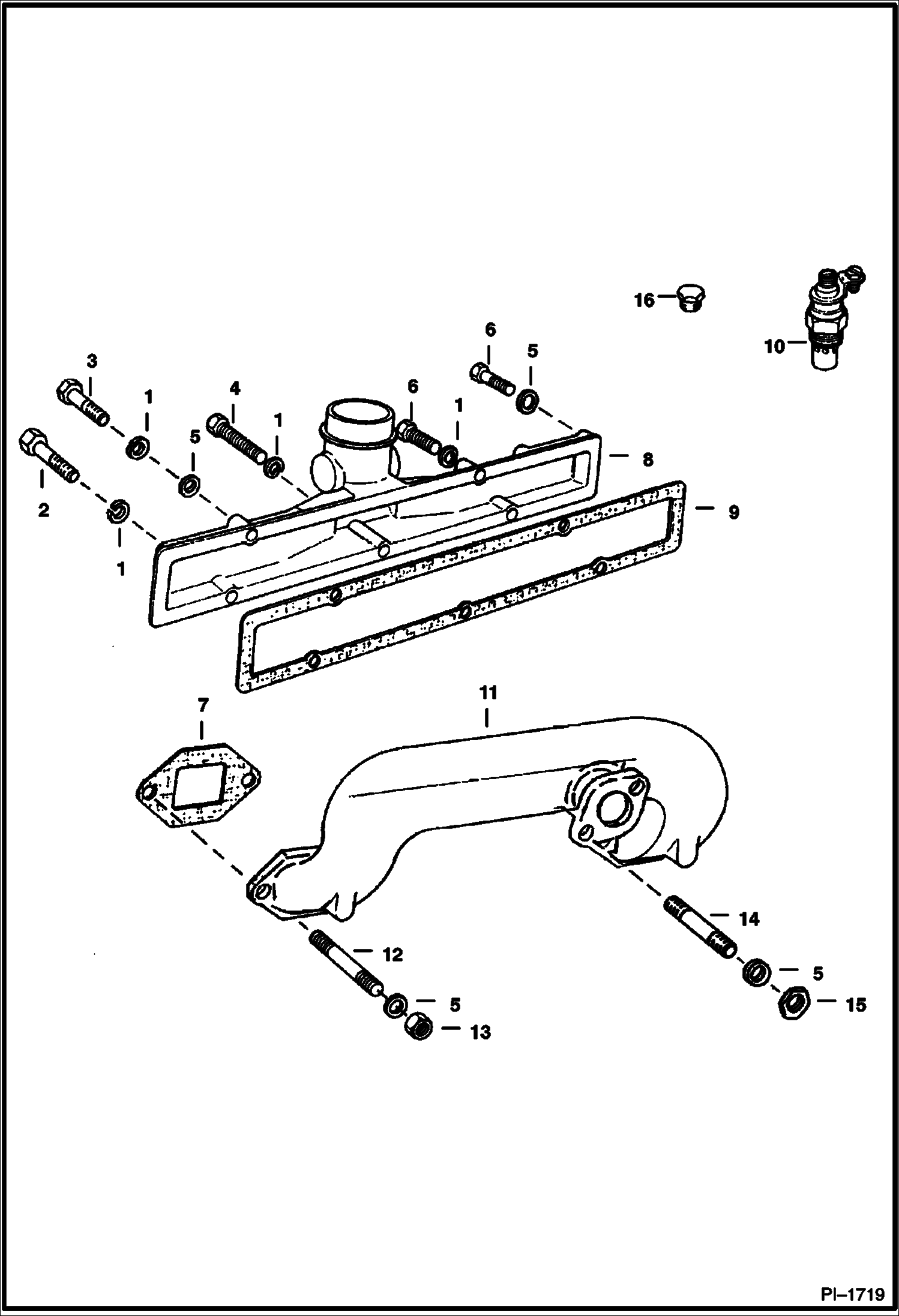

Запчасти Bobcat 800s MANIFOLDS POWER UNIT

1

4E5

WASHER

2

18C520

BOLT

3

18C532

BOLT

4

18C536

BOLT

5

3725700

WASHER plain

6

18C528

BOLT

7

6668039

GASKET Was 6510384 - A

8

MANIFOLD NLA - induction - Was 6511765 - A

9

GASKET NLA - manifold - Was 6668043 - A

10

3490307

HEATER See Illustration CYLINDER HEAD/ PI1716 INDUCTION - FOR S/N & ABOVE

11

MANIFOLD NLA - Exhaust - Was 6510383 - A

12

6510487

STUD

13

NUT NLA

14

3726965

STUD

15

10D5

NUT Was 3727348B - A

16

3455078

PLUG
