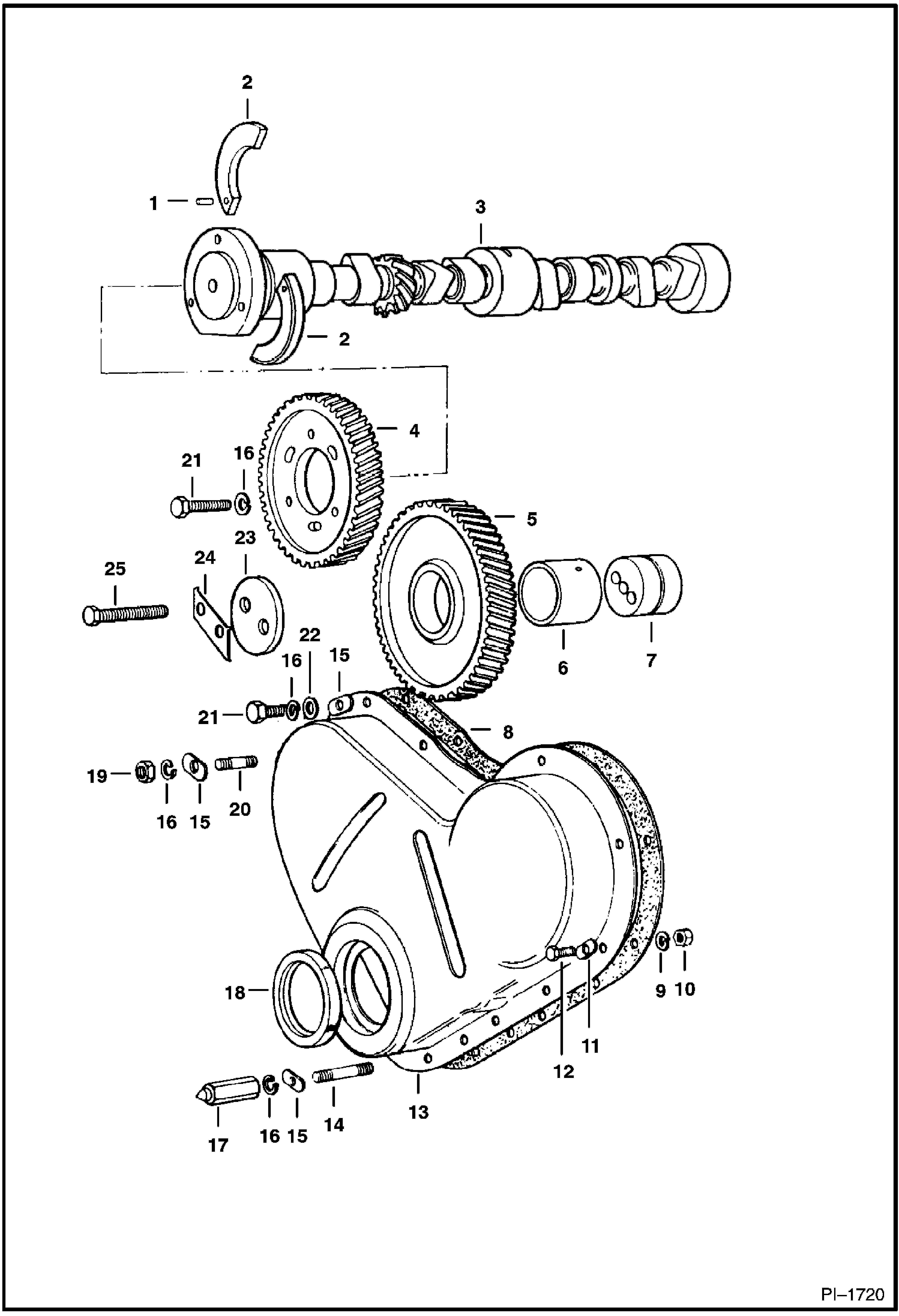

Запчасти Bobcat 800s TIMING GEAR POWER UNIT

1

873222

PIN thrustplate

2

THRUSTPLATE NLA - Was 6510387 - A

3

CAMSHAFT NLA - Was 6510385 - A

4

GEAR NLA - camshaft - Was 6510386 - A

5

GEAR NLA - idler assembly - W/Ref. 6 - Was 6510388 - A

6

BUSHING NSS

7

HUB NLA - Was 6510390 - A

8

GASKET NLA - Was 6510394 - A

9

4E4

WASHER

10

3726714

NUT

11

WASHER NLA - plain - Was 6510557 - A

12

18C410

BOLT

13

HOUSING NLA - Was 6510393 - A

14

6510484

STUD

15

3734192

WASHER elongated

16

4E5

WASHER

17

PIN NLA - timing - Was 6510395 - A

18

SEAL NLA - oil - Was 3736956 - A

19

62D5

NUT

20

3729932

STUD

21

18C514

BOLT

22

3725700

WASHER plain

23

PLATE NLA - Was 6510391 - A

24

WASHER NLA - tab - Was 6510392 - A

25

18C632

HEX BOLT
