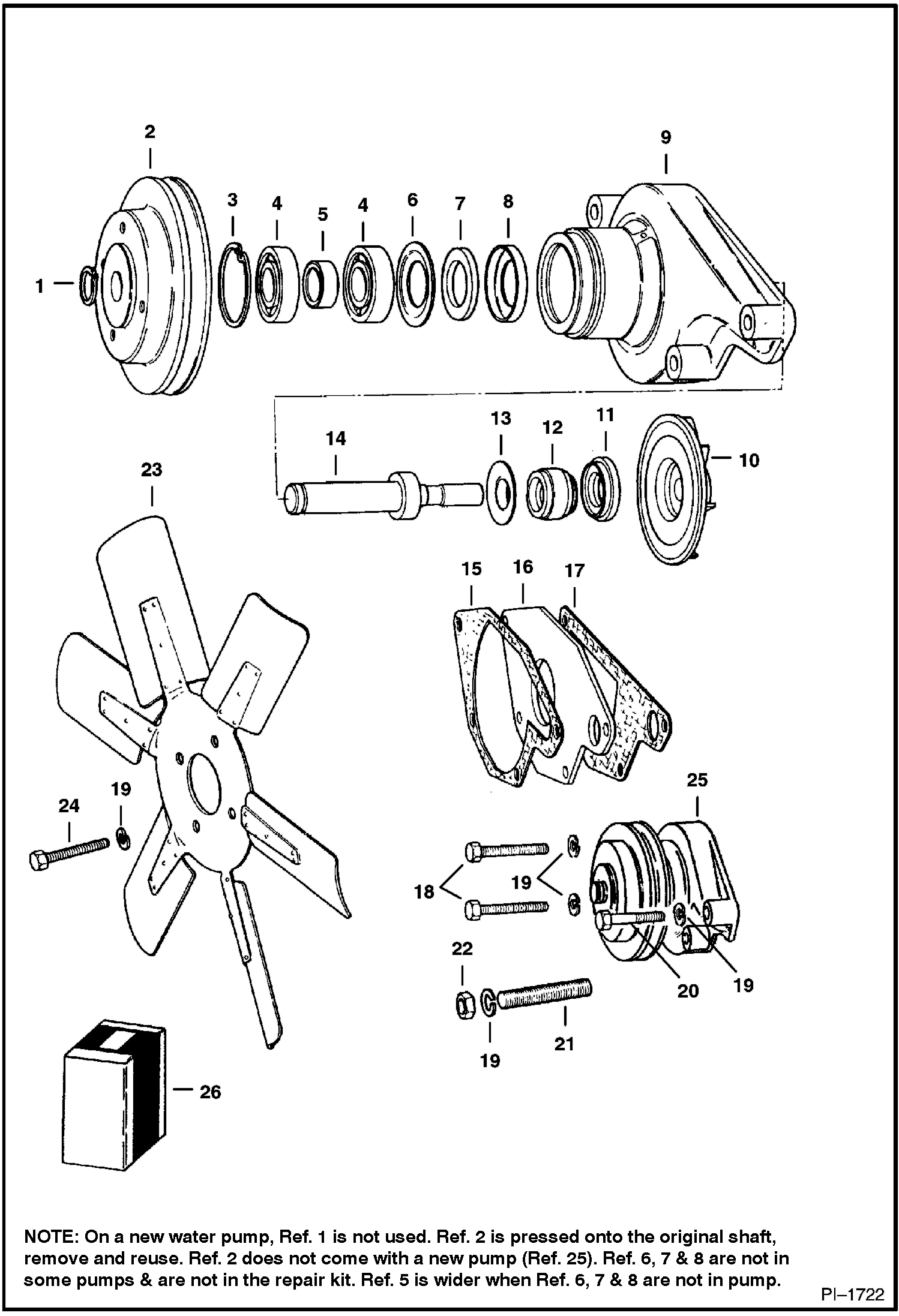

Запчасти Bobcat 800s WATER PUMP POWER UNIT

1

SNAP RING NSS - See Note

2

PULLEY NLA - Was 6510426 - A

3

SNAP RING NSS

4

BEARING NSS

5

SHAFT NSS

6

FLANGE NSS

7

SEAL NSS

8

RETAINER NSS

9

BODY NLA

10

IMPELLER NSS

11

SEAL NSS

12

INSERT NSS

13

FLANGE NSS

14

SHAFT NSS

15

6668041

GASKET Was 6510427 - A

16

6510428

BACKPLATE

17

6668042

GASKET backplate - Was 6510429 - A

18

18C532

BOLT

19

4E5

WASHER

20

18C526

BOLT

21

STUD NLA - Was 6510413 - A

22

62D5

NUT

23

FAN NLA - 15 dia, 6 bladed - pusher type - Was 6510430 - A

24

18C512

BOLT

25

6630572

PUMP water - gasket not included - Order Ref. 15-17 - W/Ref. 1 & 3-14 - SEE NOTE

26

3734962

KIT water pump repair - W/Ref. 1, 3 - 5 & 10 - 15 - See Note
