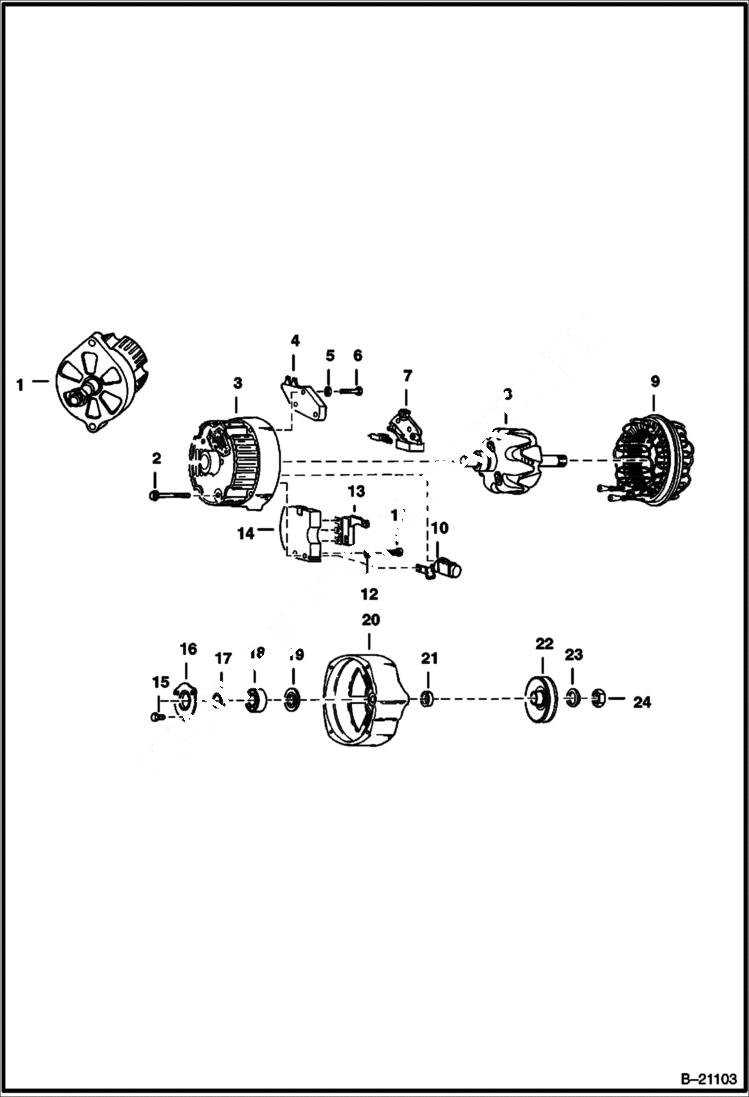

Запчасти Bobcat 800s ALTERNATOR (Delco 1100499 - Closed) ELECTRICAL SYSTEM

1

ALTERNATOR NLA - Order (1) 6599740, (1) 4CM00825B & (1) 33DM00060B

2

BOLT NLA

3

FRAME NLA - Was 6511954 - A

4

REGULATOR NLA - voltage - Was 994381B - A

5

WASHER NLA

6

BOLT NLA

7

HOLDER NLA - brush assy. - Was 995184B - A

8

6599772

ROTOR

9

2343911

STATOR

10

CAPACITOR NLA

11

BOLT NLA

12

WASHER NLA

13

DIODE Was 994383B - A

14

RECTIFIER NLA - Was 995185B - A

15

BOLT NLA

16

RETAINER NLA - bearing - Was 897456B - A

17

COLLAR NLA

18

991599

BEARING

19

SLINGER NLA - grease

20

HOUSING NLA

21

NLA - COLLAR

22

PULLEY NLA - pulley - Was 6552953 - A

23

NLA - Was 794584B - A

24

NUT NLA - Was 859369B - A
