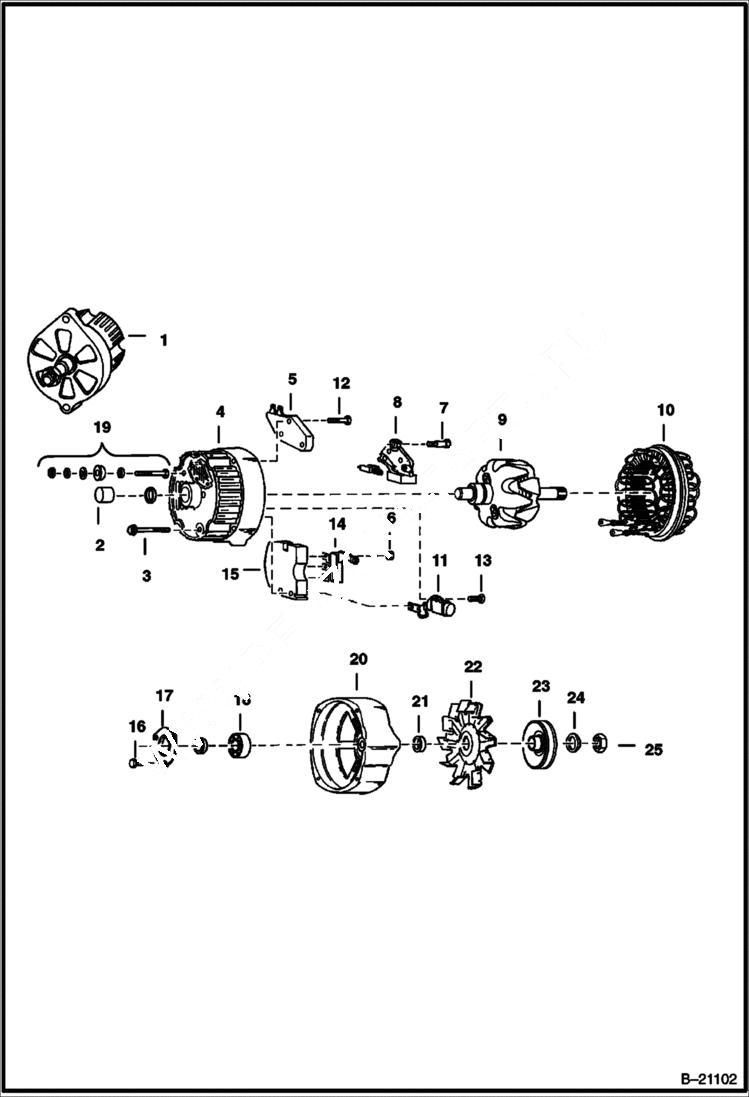

Запчасти Bobcat 800s ALTERNATOR (Delco 1100092 - Closed) ELECTRICAL SYSTEM

1

ALTERNATOR NLA - Order 6599740

2

BEARING NLA - Was 999306B - A

3

BOLT NLA - Was 897467B - A

4

FRAME NLA - W/Ref. 2 - Was 6511954 - A

5

REGULATOR NLA - voltage - Was 994381B - A

6

12D8

NUT

7

6511957

BOLT

8

HOLDER NLA - brush assy. - Was 995184B - A

9

6599772

ROTOR

10

2343911

STATOR Was 999392B - A

11

CAPACITOR NLA - Was 999308B - A

12

BOLT NSS - Was 6511956 - A

13

BOLT NLA - Was 991219B - A

14

DIODE Was 994383B - A

15

RECTIFIER NLA - Was 995185B - A

16

BOLT NLA - Was 45G000100B - A

17

RETAINER NLA - bearing - Was 897456B - A

18

991599

BEARING

19

TERMINAL PKG. NLA - terminal - Was 905952B - A

20

HOUSING NLA - Was 905955B - A

21

6598060

COLLAR COLLAR

22

329884

FAN FAN

23

PULLEY NLA - pulley - Was 6552953 - A

24

NLA - Was 794584B - A

25

NUT NLA - Was 859369B - A
