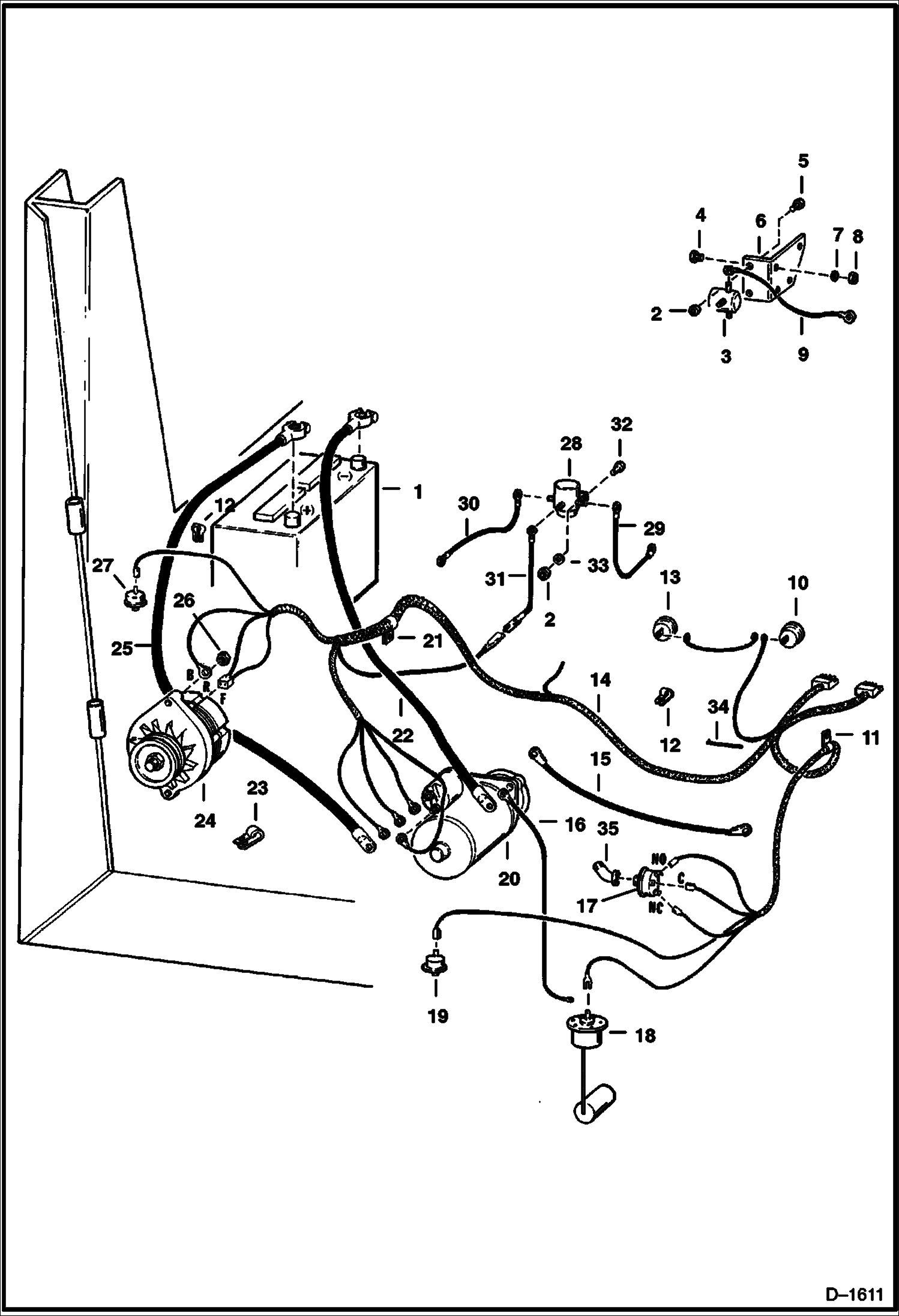

Запчасти Bobcat 800s ENGINE ELECTRICAL ELECTRICAL SYSTEM

1

6649716

BATTERY Was 6633910

1

6630154

CAP gang - Danger

1

6630155

CAP gang - Poison

1

CAP NLA - tilt-tite - Was 6514898 - A

2

85D4

NUT 5

3

6631939

SOLENOID

4

18C612

BOLT

5

17C408

BOLT

6

6543312

BRACKET

7

4E6

WASHER

8

61D6

NUT 5

9

WIRE NLA

10

6519876

SWITCH hydro. pressure

11

30H26

CLIP insulated

12

30H12

CLIP

13

SWITCH NLA - hydro oil pressure - Was 172272 - A

14

6543700

HARNESS engine

14

HARNESS NLA - engine - 590951 - A

15

6562141

WIRE ground

16

6591315

WIRE

17

6515472

SWITCH eng. oil pressure

18

5204933

SENDERKIT fuel level

19

6513193

SENDER water temp.

20

STARTER See Illustration STARTER/ B21106 See Illustration STARTER/ B21105 See Illustration STARTER/ D2119

21

30H32

CLIP

22

6514559

CABLE ground

23

30H48

CLIP

24

ALTERNATOR See Illustration ALTERNATOR/ B21103 See Illustration ALTERNATOR/ B21102 See Illustration ALTERNATOR/ B21104

25

667483

CABLE

26

32DM60

NUT

26

12D12

NUT

27

6512537

SWITCH hydro. temp.

28

6659319

SOLENOID Was 6632186 - A

29

WIRE NLA - Was 6564094 - A

30

WIRE NLA - Was 6564093 - A

31

WIRE NLA - Was 6564092 - A

32

17C410

BOLT 10

33

6E4

WASHER 10

34

6610510

TIE

35

ELBOW NLA - Was 620559B - A
