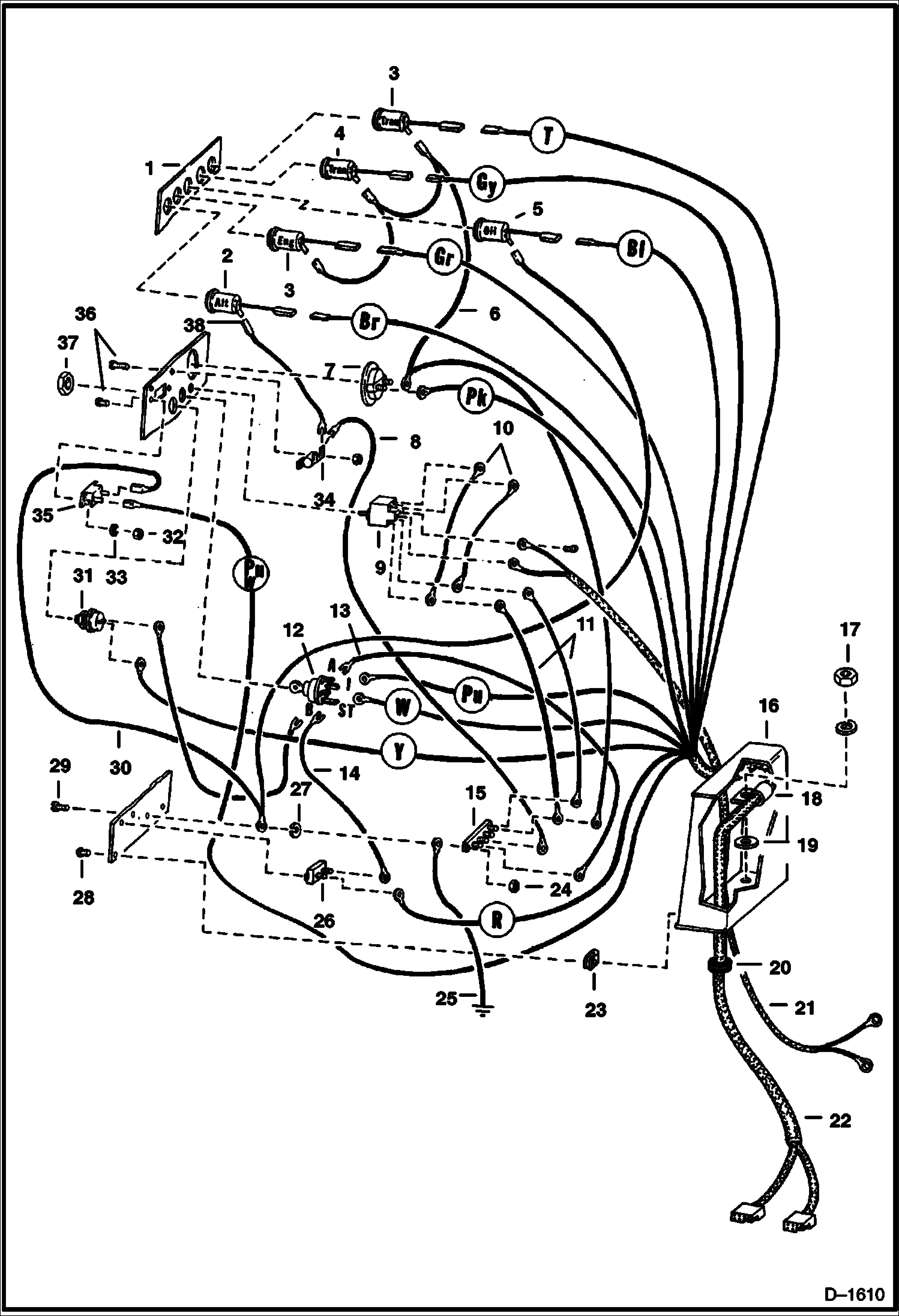

Запчасти Bobcat 800s CAB ELECTRICAL ELECTRICAL SYSTEM

1

6543185

COVER instrument box

2

LIGHT alternator - Was 6518962 - A

3

LIGHT NLA - eng temp - Was 6515525 - A

4

NLA - engine oil - Was 6515526 - A

5

LIGHT NLA - filter - Was 6518961 - A

6

WIRE NLA

7

FUEL GAUGE NLA - W/clamp - Order 6669665 gauge & 6679027 clamp - Was 6658820 - A

7

6669665

FUEL GUAGE W/O clamp

8

WIRE NLA

9

SWITCH NLA - cab tilt - Was 6511051 - A

10

WIRE NLA

11

WIRE NLA

12

6519907

SWITCH ignition

12

6505412

KEY

13

WIRE NLA

14

WIRE NLA

15

6519247

CONNECTOR

16

6541569

BOX instrument

17

85D4

NUT 5

18

30H29

CLAMP

19

25E13

WASHER 5

20

6504108

GROMMET

21

6548437

HARNESS

22

6543311

HARNESS

22

HARNESS NLA - Was 6590952 - A

23

1303869

NUT spring

24

12D10

NUT

25

WIRE NLA

26

6519746

BREAKER circuit

27

12E10

WASHER

28

85G1008

SCREW machine

29

85G1012

SCREW

30

WIRE NLA

31

6632973

SWITCH preheat - Was 600259B - A

32

12D6

NUT 10

33

12E6

WASHER

34

556489

RES

35

6664886

HOURMETER Was 6631657 - A

36

85G608

SCREW

37

6502904

NUT

38

WIRE NLA
