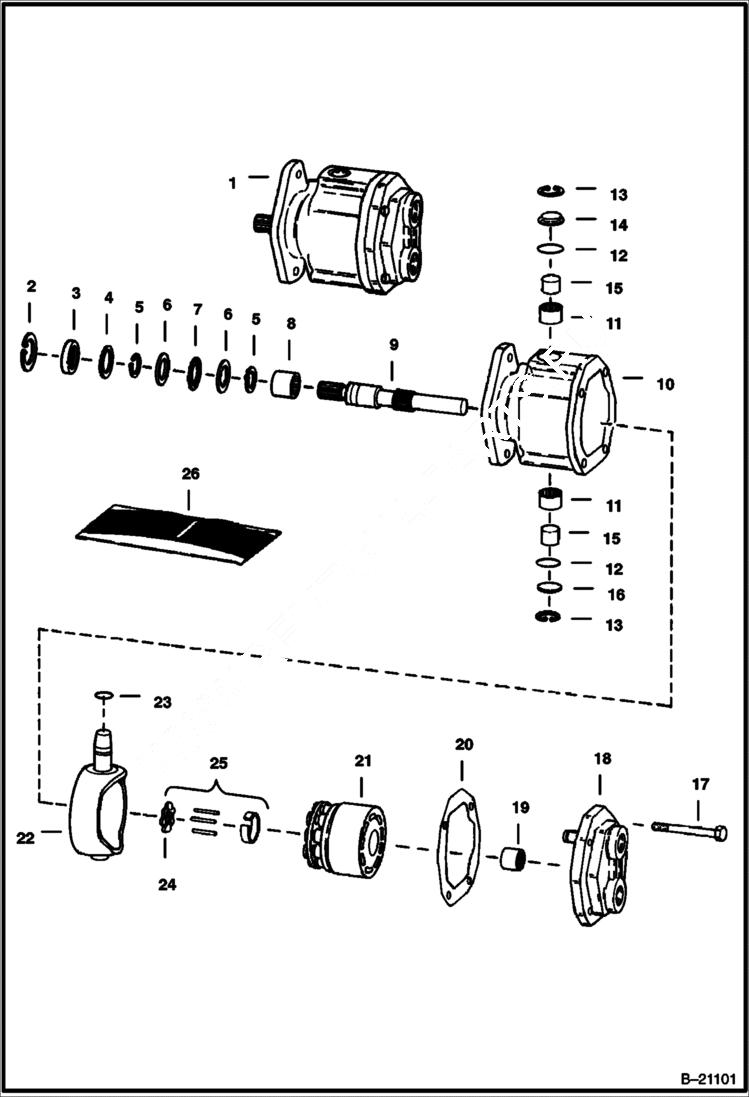

Запчасти Bobcat 800s HYDROSTATIC MOTOR (DBA - New) HYDROSTATIC SYSTEM

1

6669566

MOTOR New - Was 6512567 - A

1

MOTOR, HYD NLA - Was 6599514REM - A

2

RING NSS - retaining

3

SEAL NSS - shaft

4

6510586

WASHER

5

RING NSS - retaining

6

5208601

WASHER

7

5200262

BRG

8

BEARING NSS

9

SHAFT NLA - drive - Was 6510520 - A

10

HOUSING NLA - W/Ref. 8 - Was 6510521 - A

11

896539

BRG

12

O-RING NSS

13

RING NSS - retaining

14

COVER NLA - Was 6510501 - A

15

6510590

RACE

16

6519740

COVER

17

17C620

BOLT

18

6510073

COVER W/Ref. 19

19

BEARING NSS

20

6510070

GASKET

21

6512642

GROUP rotating - W/Ref. 24

22

PLATE NLA - Order 6669566 - Was 6512646 - A

23

O-RING NSS

24

WASHER NLA - wave - Was 6510589 - A

25

6513575

KIT loading pin

26

SEAL KIT NLA - W/Ref. 2, 3, 5, 12, 13, 20 & 23 - Was 6510522 - A
