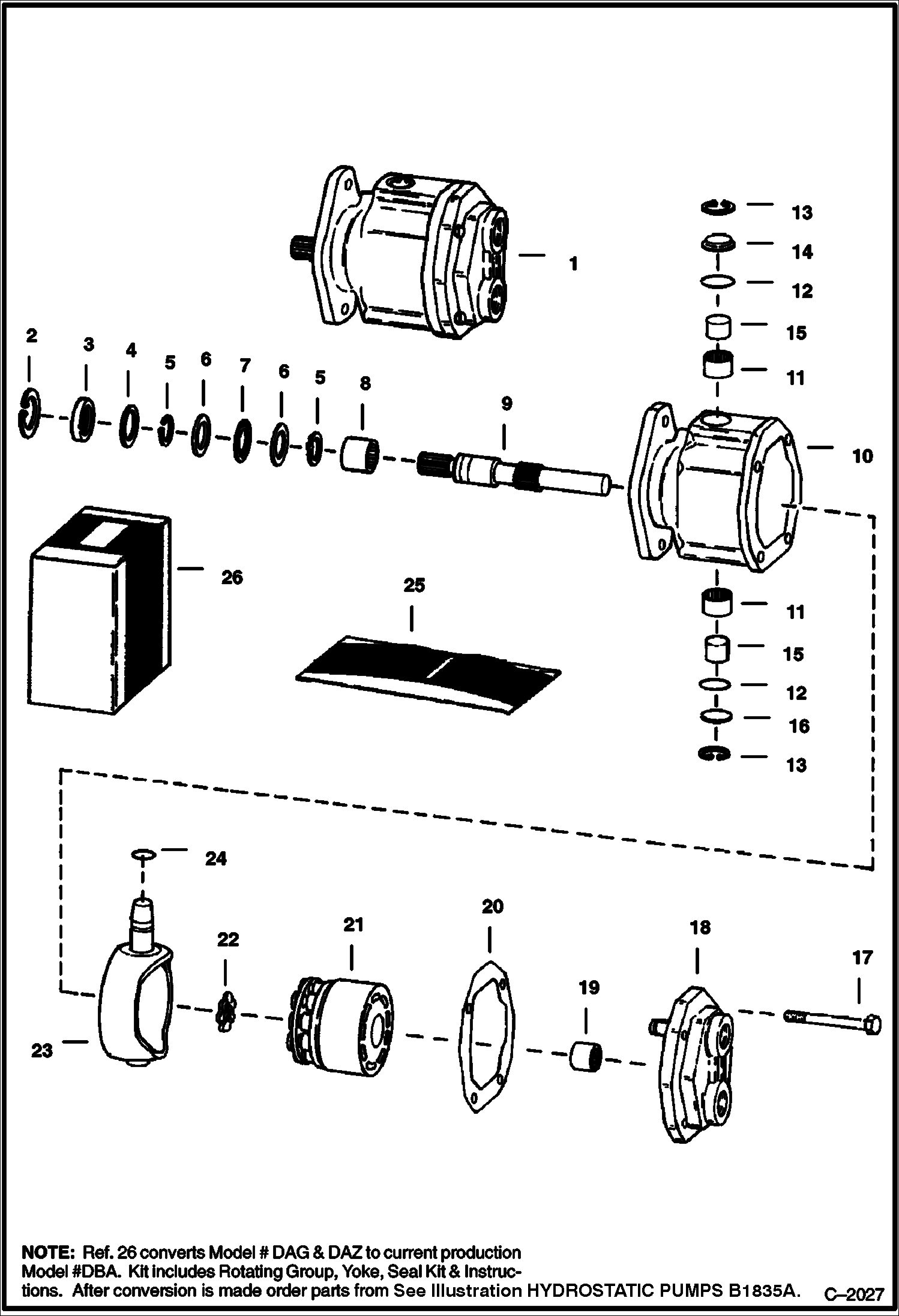

Запчасти Bobcat 800s HYDROSTATIC MOTOR (DAG or DAZ) HYDROSTATIC SYSTEM

1

MOTOR NLA - Order 6669566

2

RING NSS - retaining

3

SEAL NSS - shaft

4

6510586

WASHER

5

RING NSS - retaining

6

5208601

WASHER thrust

7

5200262

BRG

8

BEARING NSS

9

SHAFT NLA - drive - Was 6510520 - A

10

HOUSING NLA - W/Ref. 8 - Was 6510521 - A

11

896539

BRG

12

O-RING NSS

13

RING NSS - retaining

14

COVER NLA - Was 6510501 - A

15

6510590

RACE

16

6519740

COVER

17

17C620

BOLT

18

6510073

COVER W/Ref. 19

19

BEARING NSS

20

6554758

KIT gasket - W/Ref. 22

21

GROUP NLA - rotating - Order Ref. 26

22

WASHER NSS - wave

23

YOKE NLA - Order Ref. 26

24

O-RING NSS

25

SEAL KIT NLA - W/Ref. 2, 3, 5, 12, 13, 20, 22 & 24 - Was 6510522 - A

26

6512649

KIT conversion - DAG and DAZ to DBA
