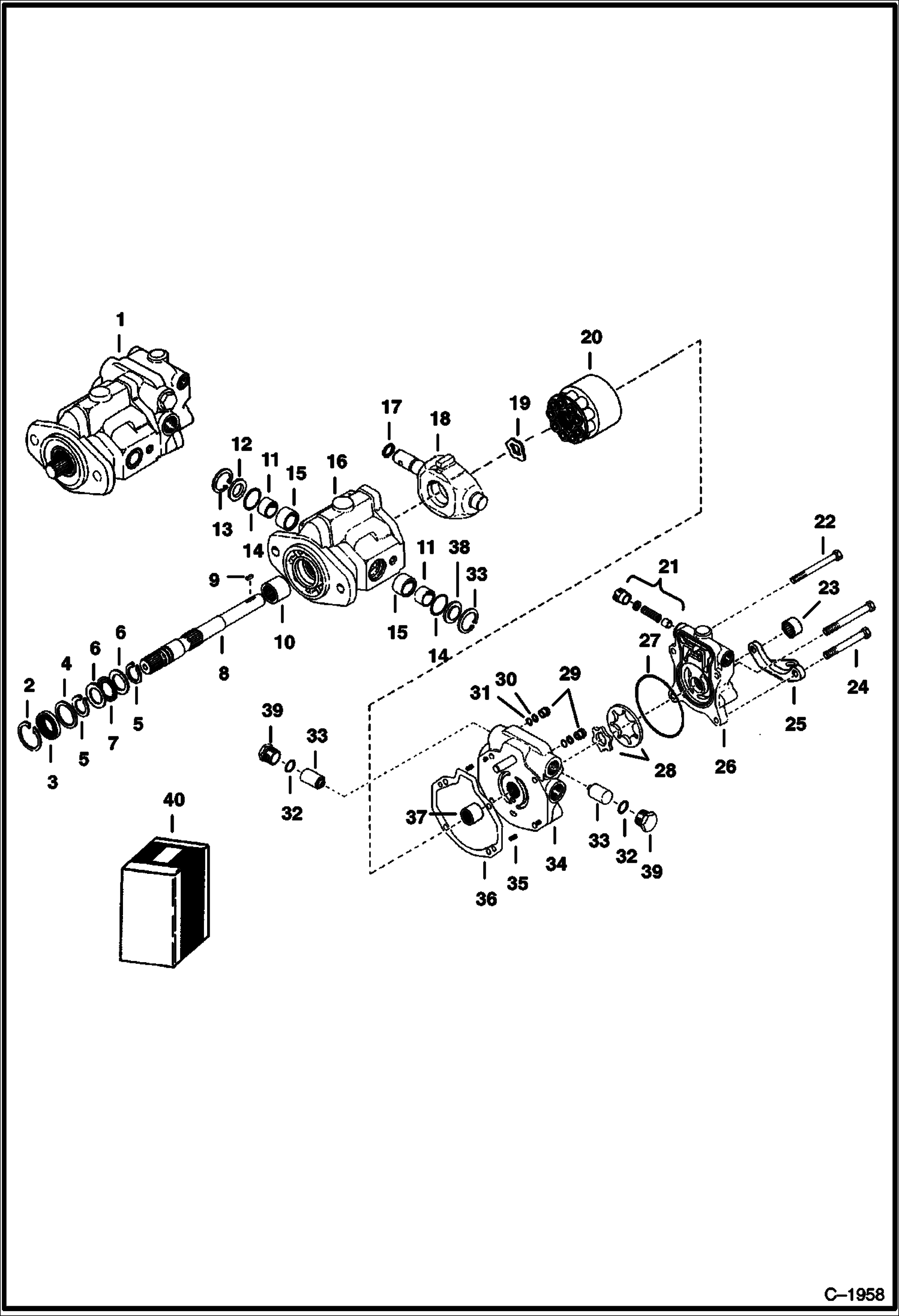

Запчасти Bobcat 800s HYDROSTATIC PUMPS (Front - RAB - Old) HYDROSTATIC SYSTEM

1

PUMP NLA - front

2

RING NSS - retaining

3

SEAL NSS - shaft

4

6510586

WASHER

5

RING NSS - retaining

6

5208601

WASHER thrust

7

5200262

BRG thrust

8

6510519

SHAFT drive

9

6510556

KEY

10

6519737

BEARING

11

6510590

RACE

12

COVER NLA - Was 6510501 - A

13

RING NSS - retaining

14

O-RING NSS

15

896539

BRG

16

HOUSING NLA - W/Ref. 10 - Was 6512252 - A

17

O-RING NSS

18

PLATE NSS - yoke - Order Ref. 40

19

WASHER NSS - wave - Order Ref. 40

20

GROUP NLA - rotating - Order Ref. 40

21

6512256

KIT adapter relief

22

21C664

BOLT

23

6512259

BEARING

24

17C660

BOLT

25

BRACKET NLA - Was 6510516 - A

26

6512255

ADAPTER W/Ref. 21 & 23

27

O-RING NSS

28

KIT NLA - gerotor - Was 6511126 - A

29

6510498

VALVE check

30

O-RING NSS

31

WASHER NSS - back-up

32

O-RING NSS

33

6650611

VALVE relief - Was 6512032 - A

34

6512253

COVER W/Ref. 35 & 37

35

ROLL PIN NSS

36

6554758

KIT W/Ref. 19

37

301209

BEARING

38

6519740

COVER

39

6513479

PLUG

40

KIT NLA - conersion converts RAB pump to RCB - Rotating group, Yoke & pins - Was 6512648 - A

40

6512348

SEAL KIT Ref. 2, 3, 5, 13, 14, 17, 27, 30-32 & 36
