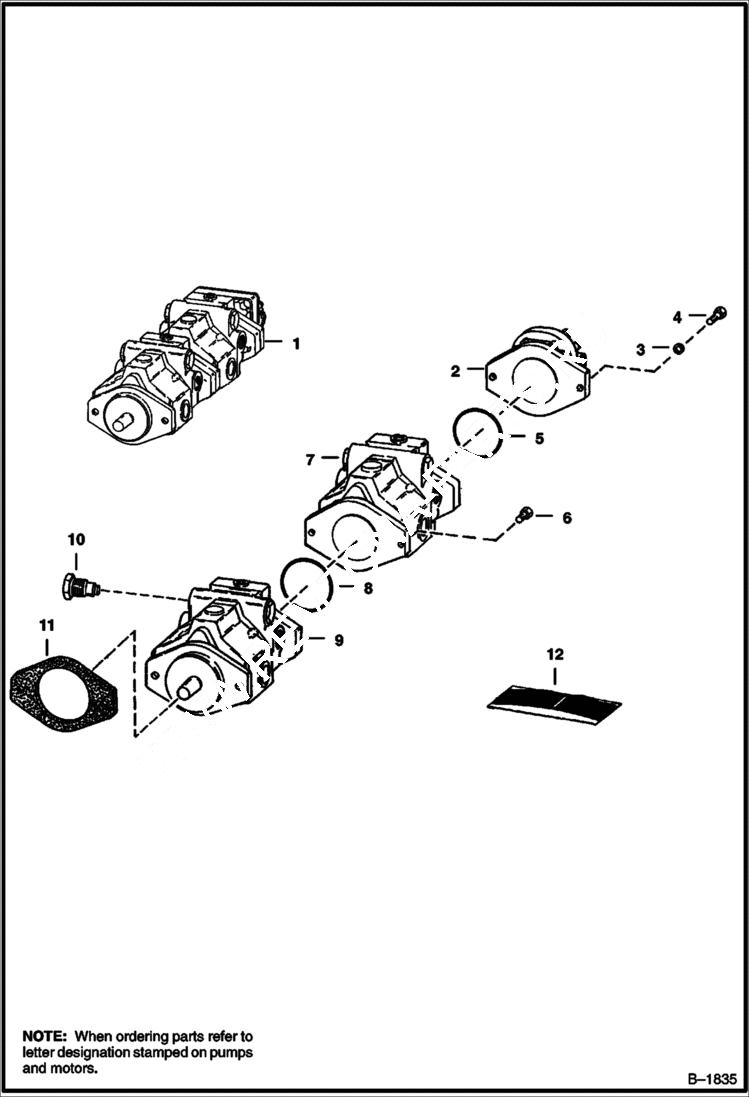

Запчасти Bobcat 800s HYDROSTATIC PUMPS (RAF - Old) HYDROSTATIC SYSTEM

1

PUMP NLA - Ref. 2 - 11 - Oder 6512568

2

6510490

PUMP, GEAR See Illustration HYDRAULIC GEAR PUMP/ B21099 GEAR

3

6510585

WASHER

4

17C620

BOLT

5

25K20308

O RING 10

6

BOLT NLA - Was 17C000822B - A

7

PUMP See Illustration HYDROSTATIC PUMPS/ C1958 NLA - front - Order 6512657

8

25K20400

O RING 10

9

PUMP See Illustration HYDROSTATIC PUMP/ C2020 NLA - rear - Order 6512656

10

6650611

VALVE relief - Was 6512032 - A

11

6503835

GASKET

12

6512348

SEAL KIT W/Ref. 5 & 8
