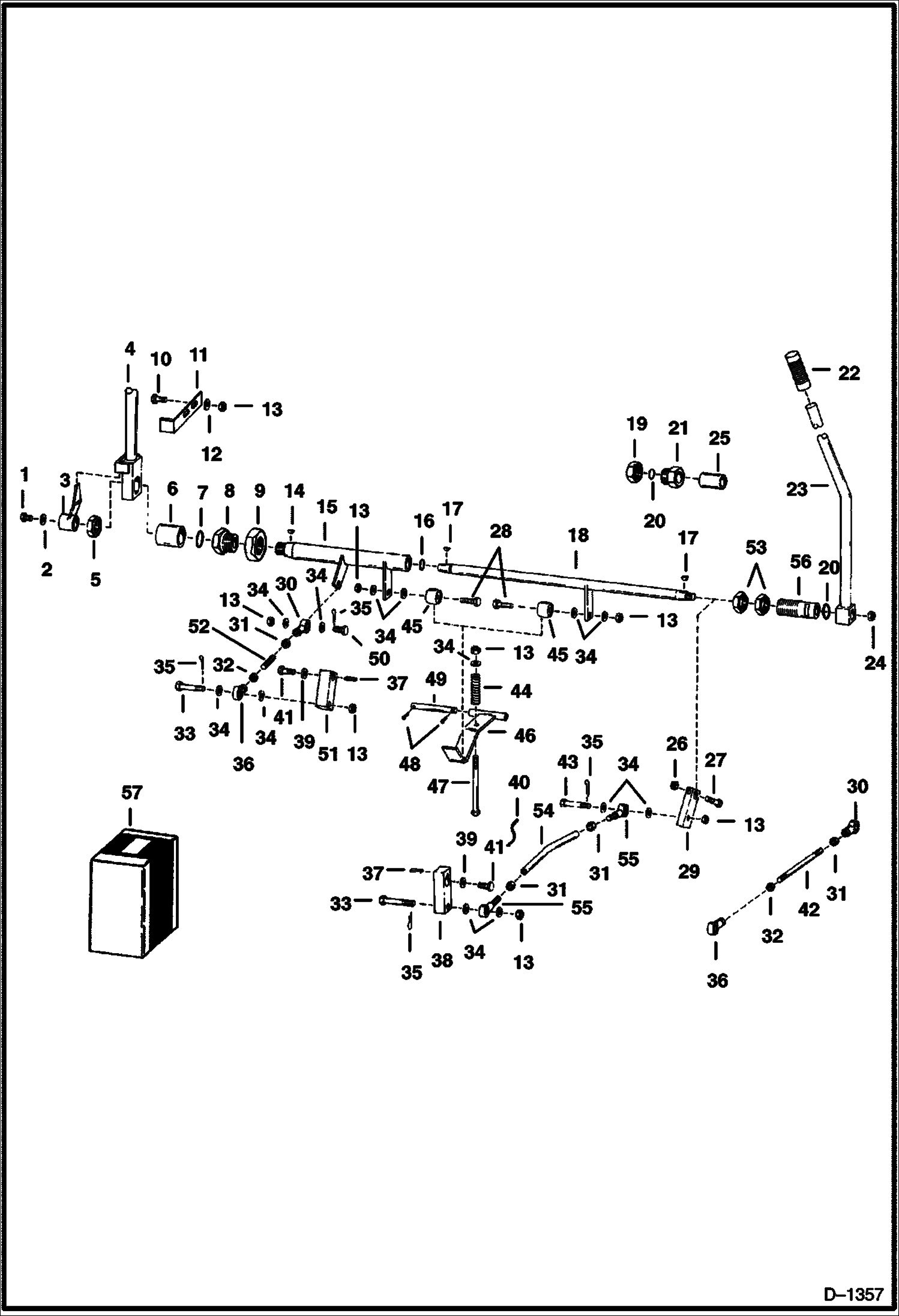

Запчасти Bobcat 800s STEERING CONTROLS HYDROSTATIC SYSTEM

1

17C512

BOLT 5

2

WASHER NLA - Was 6591455 - A

3

6543540

ARM control

4

LEVER L.H. NLA - LH - Was 6591086 NLA - LH - Was 6591086 - A

5

6543533

NUT

6

6543543

SPACER

7

25K40116

O RING 10

7

O RING 10 NLA - Was 25K60116 - A

8

6543556

BUSHING

8

BUSHING NLA - Was 6563301 - A

9

6543532

NUT

10

17C612

BOLT 5

11

6552559

STOP

12

25E18

WASHER

13

86D6

NUT

14

5J807

KEY woodruff

15

6543554

TUBE

16

25K30022

O RING 10

17

5J806

KEY woodruff

18

6543555

SHAFT arm

19

NUT NLA - Use Ref. 53 & 56

20

25K40028

O RING 10

21

BUSHING NLA - Use Ref. 53 & 56

22

6513963

GRIP

23

6591096

LEVER R.H.

24

86D10

NUT

25

SPACER NLA - Use Ref. 53 & 56

26

86D5

NUT

27

18C536

BOLT

28

18C624

BOLT

29

6543559

LEVER

30

6512954

ROD END R.H. threads

31

8D6

NUT 5

32

13D6

NUT

33

6554714

BOLT

34

25E17

WASHER 5

35

1F316

PIN

36

6512955

SWIVEL L.H. threads

37

7J3010

KEY square

38

6543614

LEVER R.H.

39

616783

WASHER

40

WIRE NLA - lock

41

BOLT NLA - Was 22C616 - A

42

ROD NLA - control - R.H. - Order Ref. 57

43

6554715

BOLT

44

6505082

SPRING

45

ROLLER NLA - cam - Order 6591389 & 18C000624B

45

ROLLER NLA - cam - Was 6591389 - A

46

6543546

GUIDE roller

47

6554749

BOLT

48

1F416

PIN

49

6543545

PIN

50

6554716

BOLT

51

6543615

LEVER L.H.

52

6543261

ROD control - L.H.

53

86F10

NUT

54

ROD NLA - Was 6555292 - A

55

6598677

ROD end

56

SPACER NLA - Was 6590582 - A

57

6590686

KIT NLA - control rod - Ref. 31, 54 & 55 - Order Ref. 31 & (2) of Ref. 55
