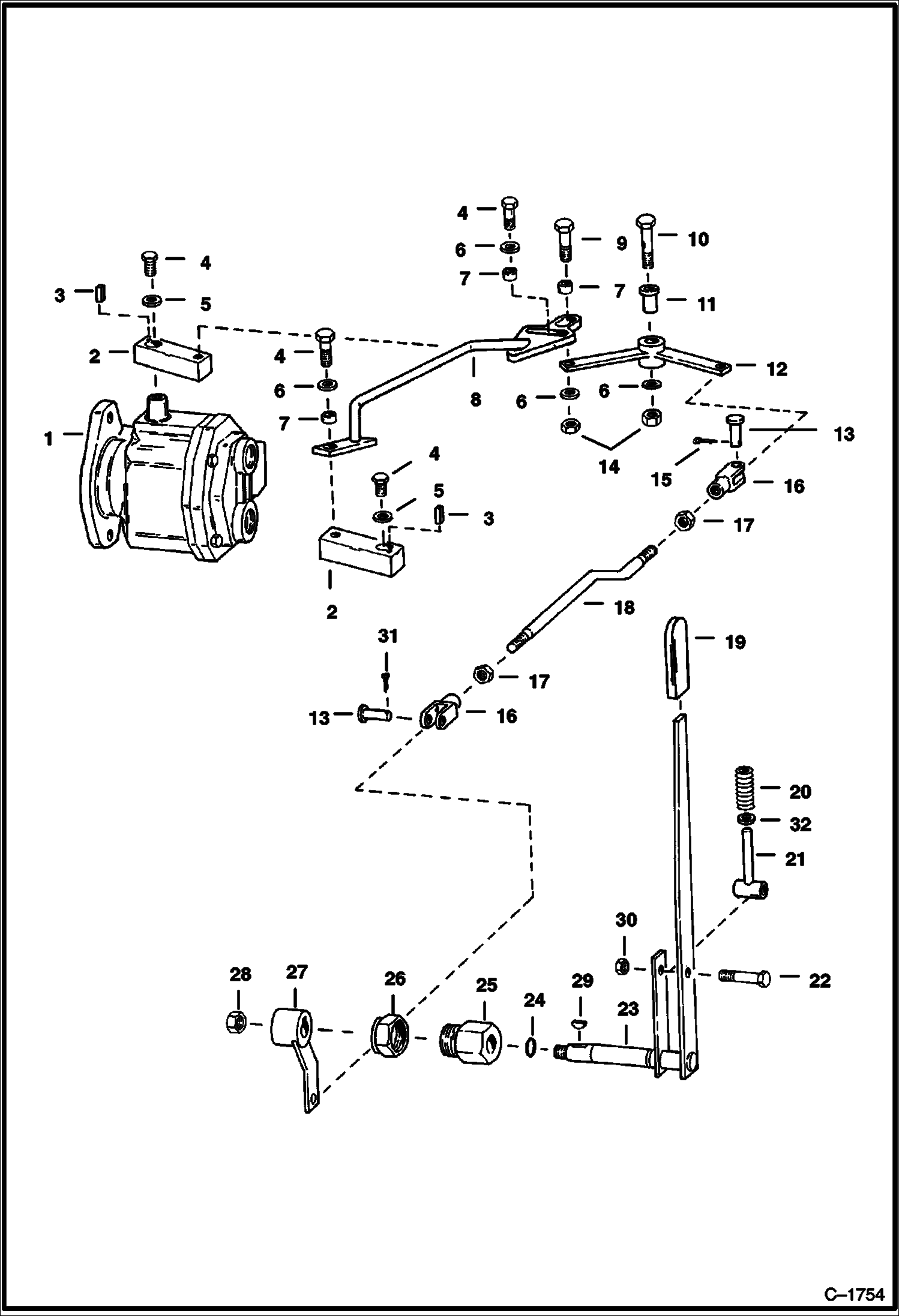

Запчасти Bobcat 800s TWO SPEED CONTROL HYDROSTATIC SYSTEM

1

6512567

MOTOR See Illustration HYDROSTATIC MOTOR/ B21101 See Illustration HYDROSTATIC MOTOR/ C2027

2

6543618

LEVER

3

7J3010

KEY

4

BOLT NLA - Was 22C616 - A

5

616783

WASHER

6

25E17

WASHER 5

7

6544654

BUSHING

8

6552588

CAM ASSY.

9

18C620

BOLT

10

18C632

HEX BOLT

11

6543436

BUSHING

12

6543491

BELLCRANK

13

4F6106

PIN

14

60D6

NUT

15

1F316

PIN

16

2J6208

YOKE

17

8D6

NUT 5

18

6543495

ROD

19

6519645

GRIP

20

6540263

SPRING

21

6543484

GUIDE

22

17C632

BOLT 5

23

6543493

LEVER

24

25K30022

O RING 10

25

6543479

BUSHING

26

NUT NLA - Was 6509809 - A

27

6543481

ARM

28

8D10

NUT

29

5J806

KEY

30

59D6

NUT

31

1F312

PIN

32

25E18

WASHER
