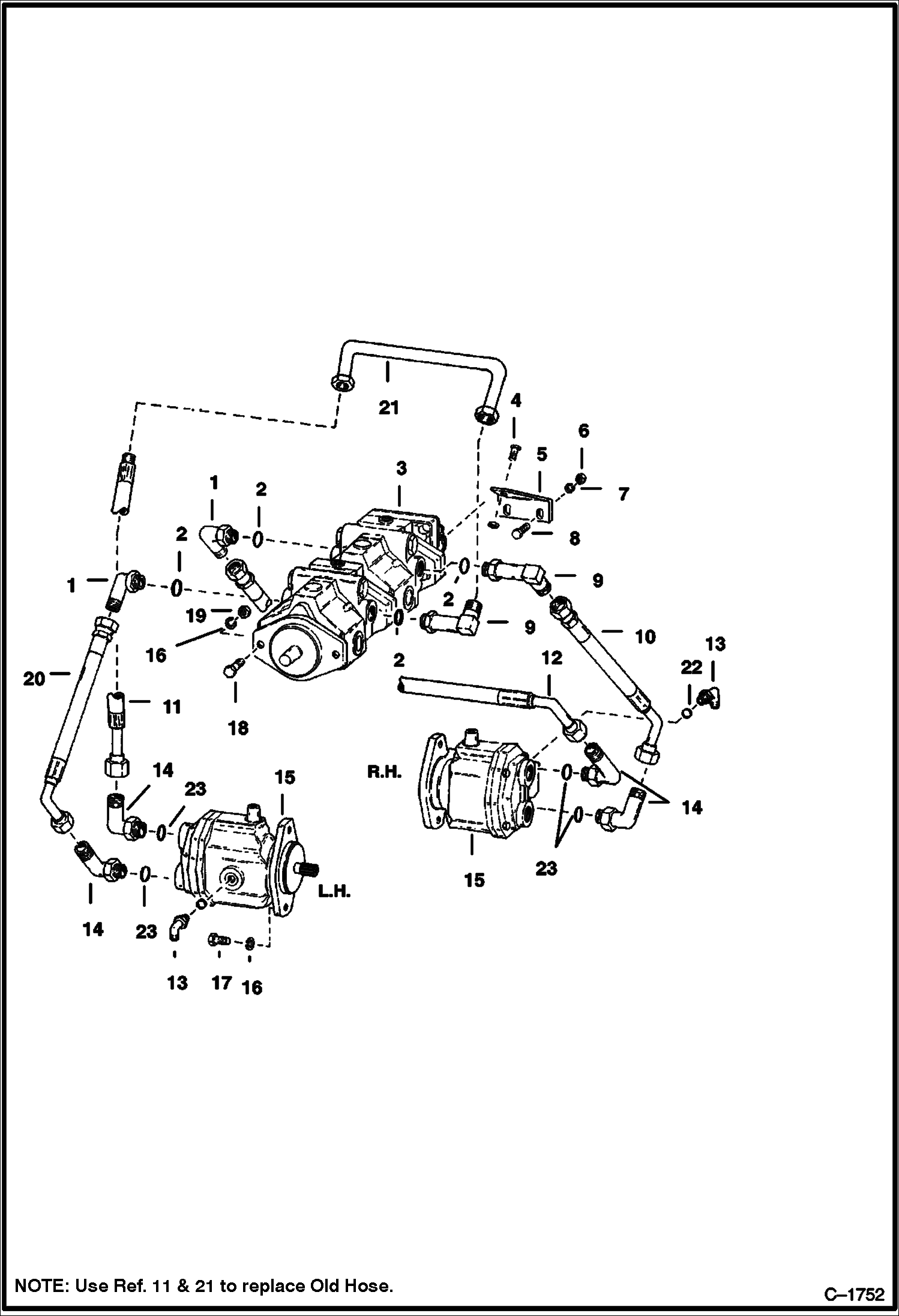

Запчасти Bobcat 800s HYDROSTATIC MOTOR CIRCUITRY HYDROSTATIC SYSTEM

1

17K8

FITTING W/Ref. 2

2

79K12

O RING 10 Was 91F000008B

3

PUMP See Illustration HYDROSTATIC PUMPS/ B1835A See Illustration HYDROSTATIC PUMPS/ B1835

4

17C616

BOLT 5

5

6543446

SUPPORT pump

6

55D6

NUT Was 6599334 - A

7

25E18

WASHER

8

17C620

BOLT

9

6519187

ELBOW

10

6554520

HOSE

11

HOSE NLA - Was 6591322 - A

12

HOSE NLA - RH - Was 6591010 - A

13

17K5

ELBOW W/Ref. 22

14

731016

ELBOW 1-5/16'' - W/Ref. 23

14

17K8

FITTING 1-1/16'' - W/Ref. 2

15

6512567

MOTOR See Illustration HYDROSTATIC MOTOR/ B21101 See Illustration HYDROSTATIC MOTOR/ C2027

16

4E8

WASHER

17

17C820

BOLT

18

17C824

BOLT 5

19

61D8

NUT 5

20

HOSE NLA - Was 6591072 - A

21

6591323

TUBE

22

79K6

O RING 10 Was 91F000005B

23

79K16

O RING 10 Was 91F000010B
