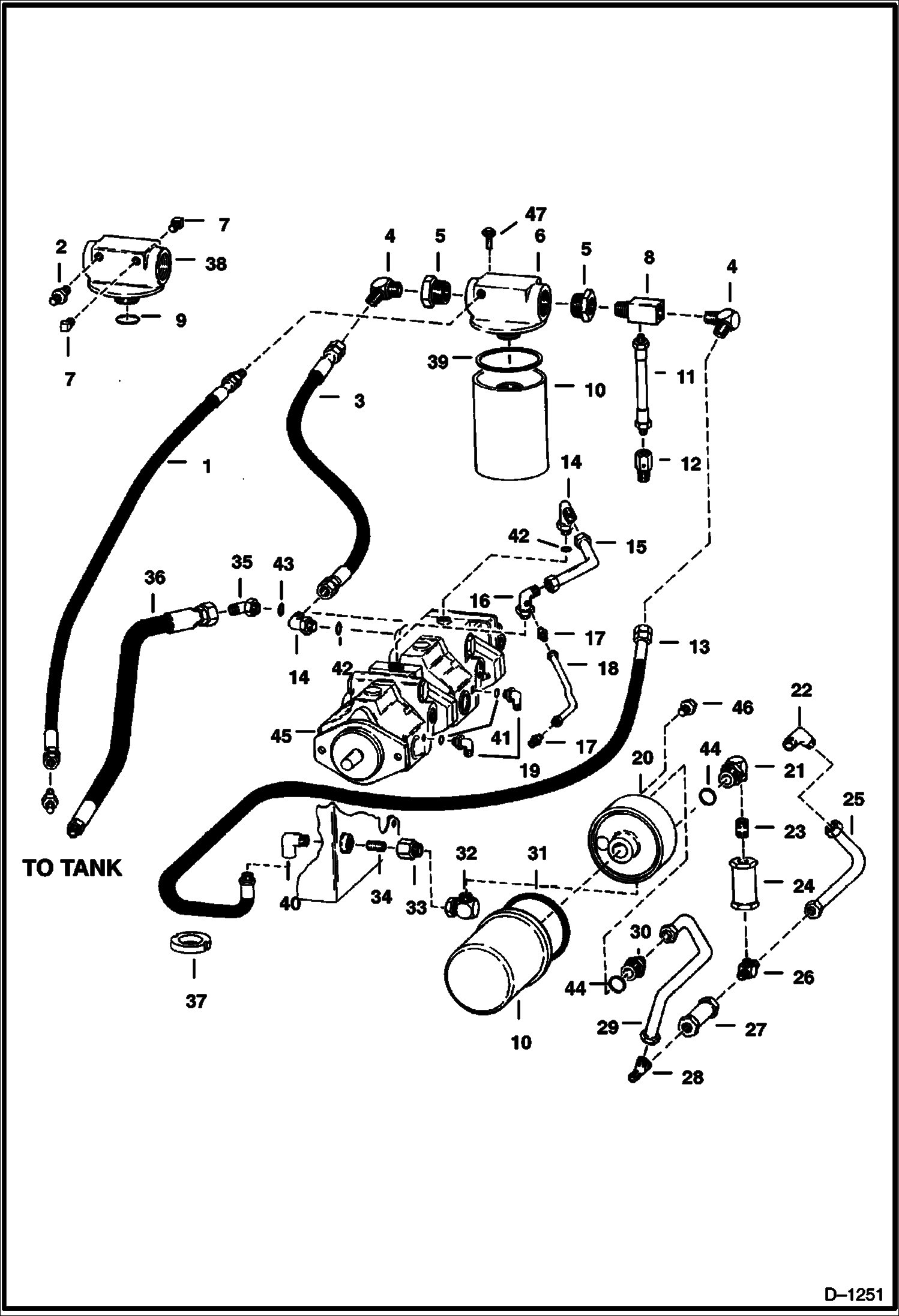

Запчасти Bobcat 800s HYDROSTATIC PUMP CIRCUITRY HYDROSTATIC SYSTEM

1

6590677

HOSE

2

774433

ADAPTOR Use on old style hose

3

6552437

HOSE

4

662487

ELBOW

5

BSHG NLA - Was 356628 - A

6

FILTER HEAD NLA - W/Ref. 10 - Was 6512566 - A

7

40K4

PLUG

8

30F3

TEE pipe

9

O RING 10 NLA - Was 25K60116 - A

10

6591038

ELEMENT See BTI117 FILTER - 10 MICRON - W/Ref. 31 & 39

11

NIPPLE NLA - Was 5K448 - A

12

6515537

RESTRICTOR

13

6552438

HOSE

14

17K6

ELBOW W/Ref. 42

15

6543303

TUBE

16

6514560

ELBOW

17

89F3

ADAPTOR

18

6548488

TUBE

19

17K5

ELBOW W/Ref. 41

20

6543470

FILTER HEAD

21

ADAPTER NLA - W/Ref. 64 - Was 6510251 - A

22

83F8

ELBOW

23

5K611

NIPPLE pipe

24

VALVE NLA - check - Was 6519638 - A

25

6543628

TUBE

26

ADAPTER NLA - tee - Was 6510250 - A

27

VALVE NLA - check - Was 6511992 - A

28

42K8

ADAPTOR tee

29

6543629

TUBE

30

15KB1216

FITTING, HYD CONNECTOR W/Ref. 44 - Was 712555B - A

31

6519904

O-RING See BTI117

32

ELBOW NLA - Was 6510249 - A

33

CONNECTOR NLA - Was 656610 - A

34

NIPPLE NLA - Was 5K412 - A

35

18K7

FITTING W/Ref. 43

36

HYD HOSE NLA - Was 509887 - A

37

525293

MAGNET

38

FILTER HEAD NLA - Order Ref. 6

39

SEAL See BTI117 NLA - Was 6568879 - A

40

29F3

ELBOW

41

79K6

O RING 10 Was 91F000005B - A

42

79K8

O RING 10 Was 91F000006B - A

43

79K10

O RING 10 Was 91F000007B - A

44

79K16

O RING 10 Was 91F000010B - A

45

PUMP See Illustration HYDROSTATIC PUMPS/ B1835A See Illustration HYDROSTATIC PUMPS/ B1835

46

BOLT NLA - Was 32C000616B - A

47

35C512

BOLT Was 31C000512B - A
