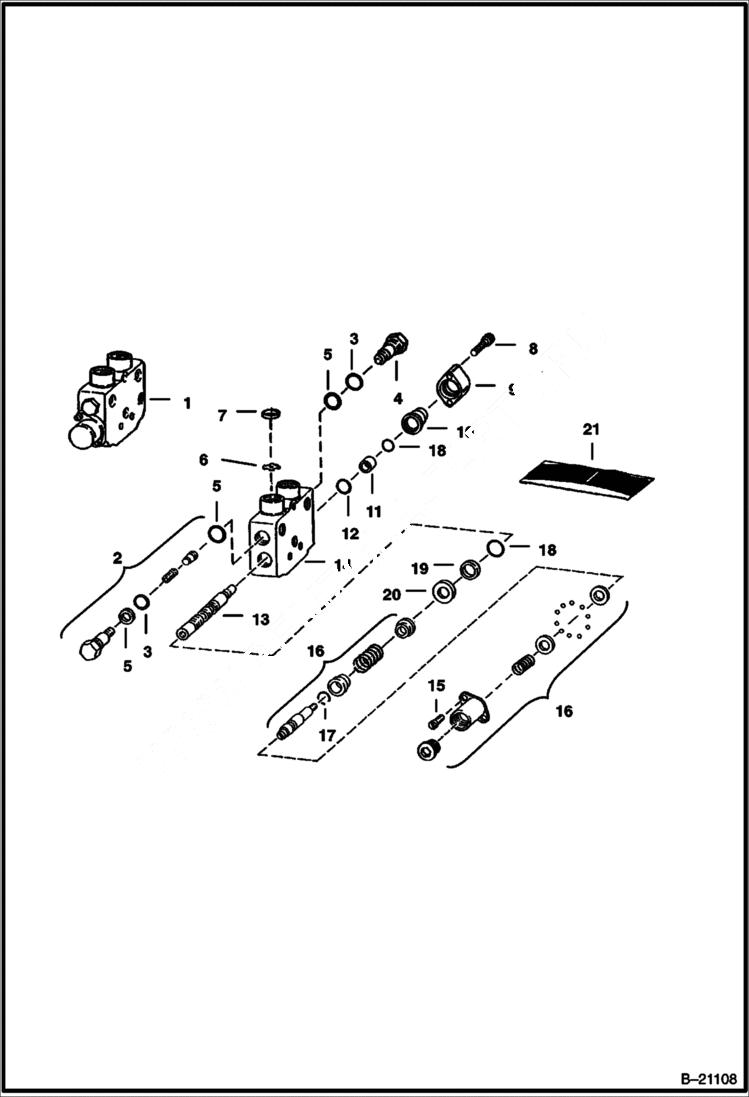

Запчасти Bobcat 800s LIFT SECTION (Gresen V20) HYDRAULIC SYSTEM

1

SECTION NLA - lift - Was 6659262 - A

2

6650692

RELIEF VALVE

3

O-RING NSS

4

6650694

ANTI-CAV. VALVE anti-cav.

5

O-RING NSS

6

6651326

ORIFICE

7

6598690

SPRING

8

89G408

BOLT

9

6659527

PLATE

10

6659526

SPACER

11

6659528

SLEEVE

12

6659530

O-RING

13

SPOOL NSS

14

HOUSING NSS

15

7030462

BOLT Was 89G414 - A

16

6659344

POSITIONER

17

O-RING NSS

18

6659529

O-RING

19

SEAL NLA - Was 6651325 - A

20

6650693

RETAINER

21

6650691

SEAL KIT Ref. 3 & 5

21

6659560

SEAL KIT Ref. 12 & 17 - 20
