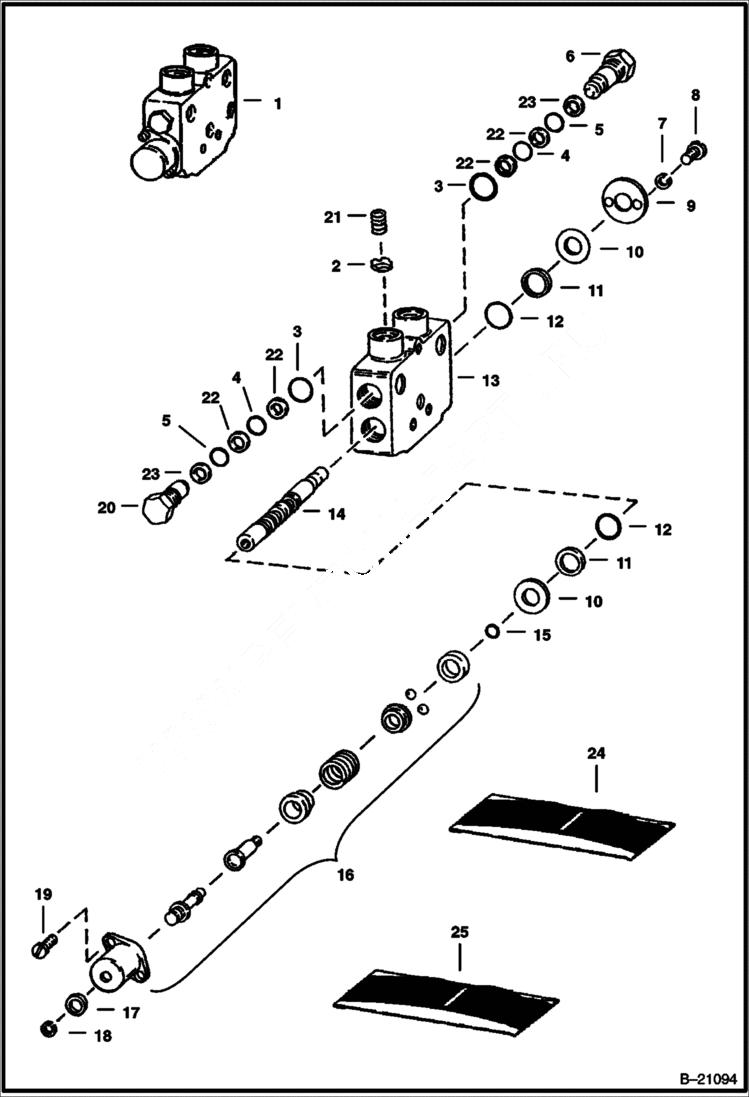

Запчасти Bobcat 800s LIFT CONTROL SECTION (Gresen CS) HYDRAULIC SYSTEM

1

SECTION See BTI242 NLA - lift control - Was 6512245 - A

2

ORIFICE NLA - .156'' (3.95mm) - Was 6598844 - A

3

O-RING NSS

4

O-RING NSS

5

O-RING NSS

6

6552546

VALVE anti-cavitation

7

4E4

WASHER

8

89G408

BOLT Was 4G000408B - A

9

6519941

RETAINER

10

6519747

RETAINER

11

6519748

WASHER

12

O-RING NSS

13

HOUSING NLA

14

SPOOL NLA

15

O-RING NSS

16

6551781

POSITIONER float - W/Ref. 15 & 17-19

17

25E14

WSHR

18

6512246

RING retaining

19

SCREW NLA - Was 528677B - A

20

RELIEF VALVE NLA - port relief - Was 6513594 - A

21

6598690

SPRING

22

WASHER NSS - back-up

23

WASHER NSS - back-up

24

6563973

SEAL KIT Ref. 2 - 4, 12, 15, 22 & 23

25

6661333

SEAL KIT port relief - Ref. 3-5, 22 & 23 - Was 6598838 - A
