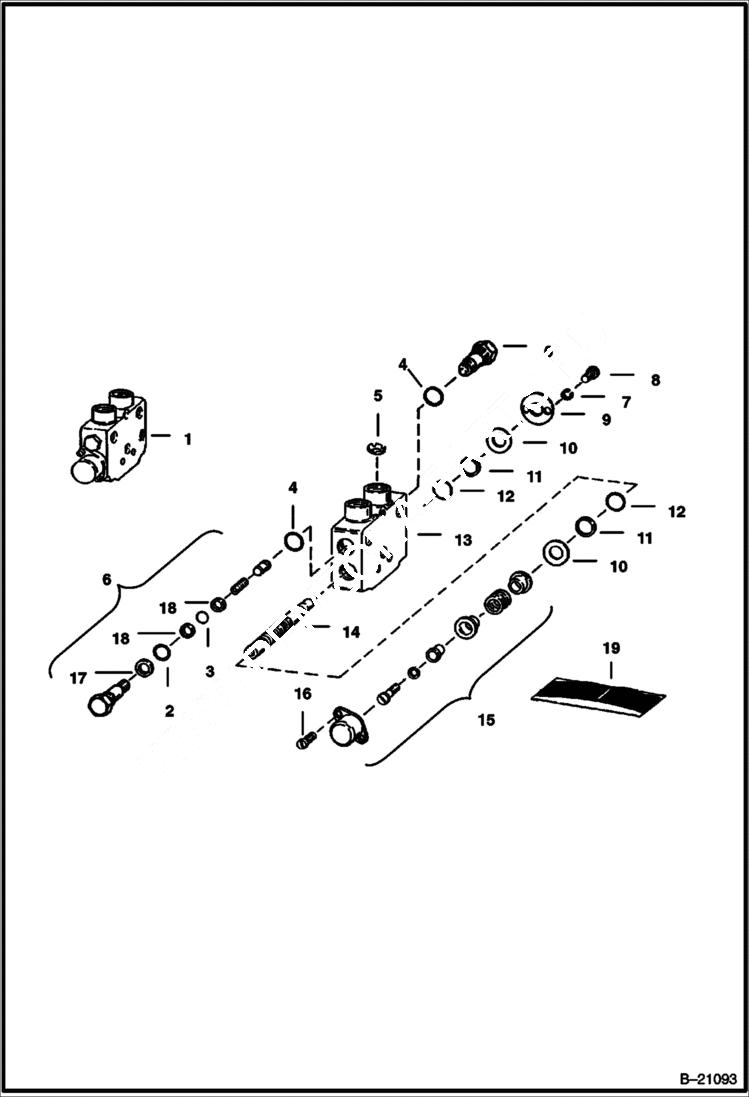

Запчасти Bobcat 800s AUX., SECONDARY AUX. & TILT CONTROL SECTION (Gresen CS) HYDRAULIC SYSTEM

1

SECTION See BTI242 NLA - Was 6519936 - A

2

O-RING NSS

3

O-RING NSS

4

O-RING NSS

5

6598794

RESTRICTOR Use W/Grapple Only - .062

6

6519937

CHECK load

7

4E4

WASHER

8

89G408

BOLT Was 4G-408 - A

9

6519941

RETAINER seal

10

6519747

RETAINER

11

6519748

WASHER back-up

12

O-RING NSS

13

HOUSING NLA

14

SPOOL NLA

15

6519938

POSITIONER

16

5208677

SCREWS

17

WASHER NSS - back-up

18

WASHER NSS - back-up

19

6563973

SEAL KIT Ref. 2 - 4, 12, 18 & 19
