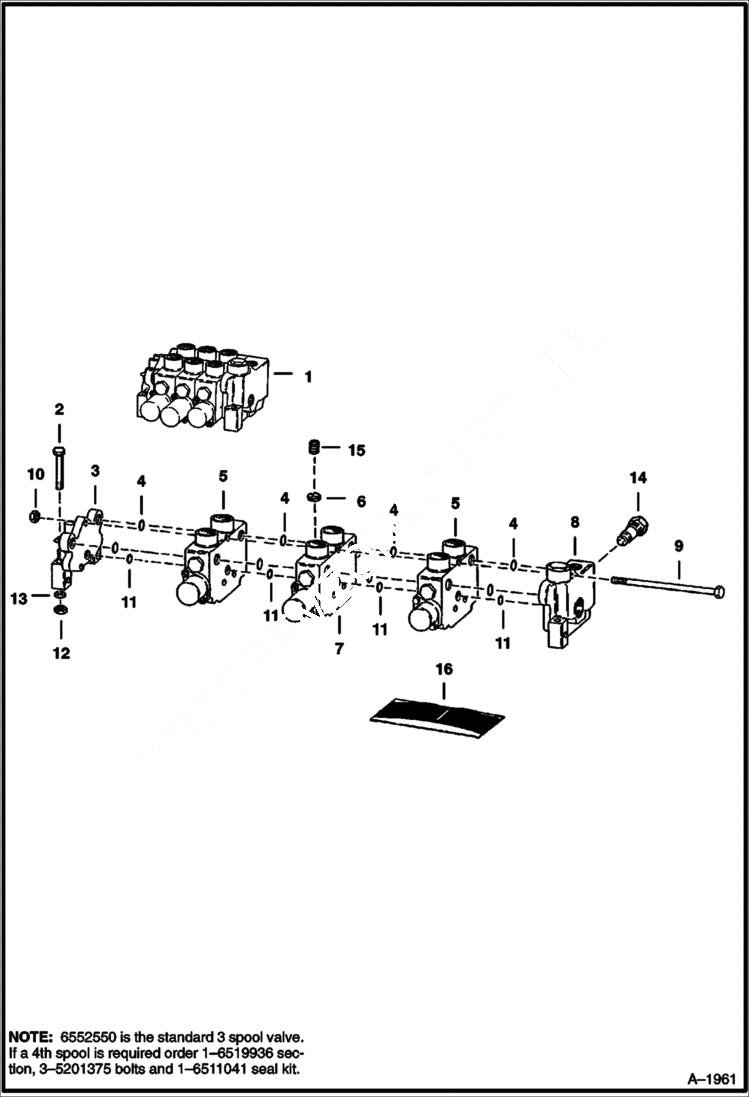

Запчасти Bobcat 800s HYDRAULIC CONTROL VALVE (Gresen CS) HYDRAULIC SYSTEM

1

VALVE See BTI242 NLA - Was 6552550 - A

2

17C540

BOLT

3

COVER See BTI242 NLA - Was 6519933 - A

4

O-RING NSS

5

SECTION See Illustration AUX., SECONDARY AUX. & TILT CONTROL SECTION/ B21093 See BTI242 NLA - AUXILIARY, SECONDARY AUXILIARY, TILT CONTROL - WAS 6519936 - A

6

ORIFICE NLA - .156'' (3.95mm) - Was 6598844 - A

7

SECTION See Illustration LIFT CONTROL SECTION/ B21094 See BTI242 NLA - LIFT CONTROL - WAS 6512245 - A

8

6512244

END COVER See Illustration INLET SECTION/ B1541 INLET

9

17C6128

BOLT 3 Spool Valve

10

61D6

NUT 5

11

O-RING NSS

12

91D5

NUT 5 Was 81D000005B - A

13

25E15

WASHER

14

6519935

VALVE relief

15

6598690

SPRING

16

6660750

SEAL KIT 3 section - Ref. 4 & 11 - Was 6511040 - A

16

6511041

SEAL KIT 4 section - Ref. 4 & 11
