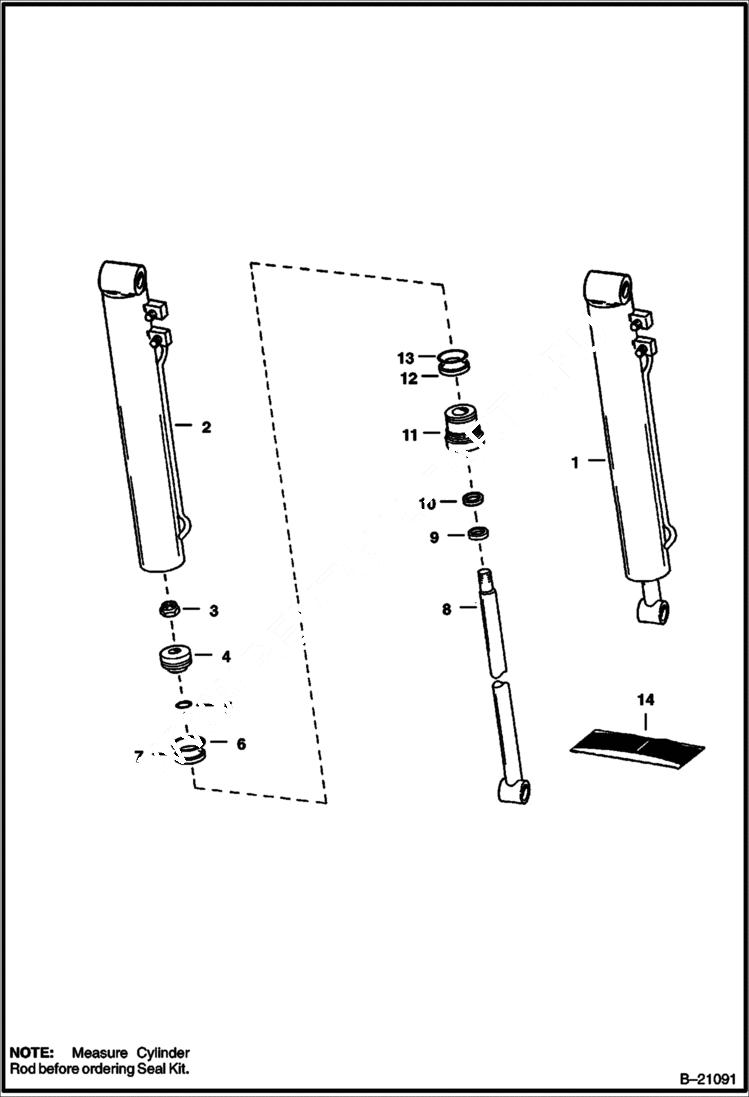

Запчасти Bobcat 800s TILT CYLINDER (W/1 Rod) HYDRAULIC SYSTEM

1

CYLINDER NLA - R.H. - Order 6555232

1

CYLINDER NLA - L.H. - Order 6555231

2

CASE NLA

3

92D12

NUT Was 86D000012B - A

4

6543168

PISTON

5

O-RING NSS

6

O-RING NSS

7

RING NSS

8

ROD NLA - Order 6590804 Rod, 6543170 Head & 6544448 Seal Kit to convert to 1.25'' Cylinder Rod

9

WIPER NSS - rod

10

SEAL NSS - v-cup

11

6543177

HEAD

12

RING NSS - back-up

13

O-RING NSS

14

6661316

SEAL KIT Ref. 5 - 7, 8, 10, 12 & 13 for 1'' Cylinder Rod - Was 6544447 - A
